SPEC: 25067

DURAGROUND™ CU 1000V XLPE RHH/RHW-2/RW90 UL & CSA FT4 Tray Rated Ground Cable

Single Copper Conductors, XLPE Insulation, Sunlight Resistant, 1000V, 90°C MAX, -40°C MIN, Gasoline & Oil Resistant

Download Category Specifications

Application & Features

Suitable for installation in Cable Trays and Underground Duct Banks- As per CE Code limitations (see Rule 12-2202) for grounding and bonding applications.

Specifications

Select a set of products below for more information:

	Cond. Size	Conductor Number	Cond. Strands	Diameter Over Conductor (in) (cm)	Insulation Thickness (mils) (mm)	Approx. OD (in) (cm)	Copper Weight (lbs/1000') (kgs/km)	Approx. Weight (lbs/1000') (kgs/km)
More Options	2 AWG 2 AWG	1 1	7 7	0.282 0.72	60 1.52	0.403 1.02	204 304	245 365
More Options	2/0 AWG 2/0 AWG	1 1	19 19	0.405 1.03	80 2.03	0.572 1.45	410 610	486 723
More Options	4/0 AWG 4/0 AWG	1 1	19 19	0.512 1.30	80 2.03	0.666 1.69	653 972	743 1106
More Options	350 KCMIL 350 KCMIL	1 1	37 37	0.661 1.68	95 2.41	0.841 2.14	1080 1607	1216 1810
More Options	500 KCMIL 500 KCMIL	1 1	37 37	0.789 2.00	95 2.41	0.966 2.45	1543 2296	1702 2533
More Options	750 KCMIL 750 KCMIL	1 1	61 61	0.968 2.46	110 2.79	1.200 3.05	2315 3445	2544 3786
More Options	1000 KCMIL 1000 KCMIL	1 1	61 61	1.117 2.84	110 2.79	1.349 3.43	3087 4594	3349 4984

†Ampacities derived from the 2015 Canadian Electrical Code - Table 1 - For single conductor in free air and based on an ambient temperature of 30°C. - Table 2 - for Cable in Conduit. Not more than 3 aluminum conductors in a conduit and based on an ambient temperature of 30°C.

	Cond. Size	Conductor Number	Min. Bend Radius (in) (cm)	Max Pull Tension (lbs) (kg)	DC Resistance at 25C (ohms/1000') (ohms/km)	AC Resistance at 75C (ohms/1000') (ohms/km)	Inductive Reactance (ohms/1000') (ohms/km)	Allowable Ampacity Raceway 75C	Allowable Ampacity Raceway 90C
More Options	2 AWG 2 AWG	1 1	1.6 4.06	530 240.40	0.162 0.24	0.195 0.29	0.045 0.07	115 115	130 130
More Options	2/0 AWG 2/0 AWG	1 1	2.2 5.59	1064 482.62	0.081 0.12	0.097 0.14	0.043 0.06	175 175	195 195
More Options	4/0 AWG 4/0 AWG	1 1	2.6 6.60	1692 767.48	0.051 0.08	0.062 0.09	0.041 0.06	230 230	260 260
More Options	350 KCMIL 350 KCMIL	1 1	3.3 8.38	2800 1270.06	0.031 0.05	0.039 0.06	0.040 0.06	310 310	350 350
More Options	500 KCMIL 500 KCMIL	1 1	3.8 9.65	4000 1814.37	0.022 0.03	0.029 0.04	0.039 0.06	380 380	430 430
More Options	750 KCMIL 750 KCMIL	1 1	6.0 15.24	6000 2721.55	0.014 0.02	0.022 0.03	0.038 0.06	475 475	535 535
More Options	1000 KCMIL 1000 KCMIL	1 1	6.7 17.02	8000 3628.74	0.011 0.02	0.018 0.03	0.037 0.06	545 545	615 615

* Inductive impedance is based on non-ferrous conduit with one diameter spacing center-to-center.

Standards & References

ASTM B3 Soft or Annealed Copper Wire
ASTM B8 Concentric-Lay-Stranded Copper Conductors
UL 44 Thermoset-Insulated Wires and Cables
CSA C22.2 No. 38 Thermoset-insulated wires and cables
CSA SUN RES - for Sunlight Resistant rating
CT USE Sizes 1/0 AWG and Larger
IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
RoHS-2 (European Directive 2011/65/EU)

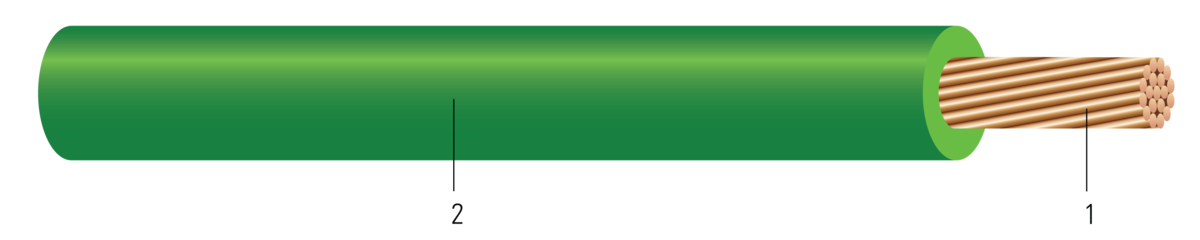

Construction

Conductor: Class B compressed stranded bare copper per ASTM B3 and ASTM B8
Insulation: Cross Linked Polyethylene (XLPE) Type RW90
