DURATRAY™ CU 1000V XLPE Insulation. RHH/RHW-2/RW90 UL & CSA

Single Copper Conductors, XLPE Insulation, Sunlight Resistant, 1000V, 90ºC MAX, -40ºC MIN, Gasoline & Oil Resistant

Download Category Specifications

Application & Features

Suitable for installation in Cable Trays, Underground Duct Banks - As per CE Code limitations (see Rule 12-2202) for grounding and bonding applications. Standard colour is black. Some sizes may be availabe in white, red, blue, yellow, brown, orange or grey. Green DuragroundTM also available.

Specifications

Select a set of products below for more information:

	Cond. Size	Conductor Number	Cond. Strands	Diameter Over Conductor (in) (cm)	Inner Layer Thickness (mils) (mm)	Approx. OD (in) (cm)	Copper Weight (lbs/1000') (kgs/km)	Approx. Weight (lbs/1000') (kgs/km)
More Options	1/0 AWG 1/0 AWG	1.0 1.0	19 19	0.361 0.92	80 2.03	0.528 1.34	326 485	394 586
More Options	2/0 AWG 2/0 AWG	1.0 1.0	19 19	0.405 1.03	80 2.03	0.572 1.45	410 610	486 723
More Options	3/0 AWG 3/0 AWG	1.0 1.0	19 19	0.456 1.16	80 2.03	0.622 1.58	518 771	601 894
More Options	4/0 AWG 4/0 AWG	1.0 1.0	19 19	0.512 1.30	80 2.03	0.666 1.69	653 972	743 1106
More Options	350 KCMIL 350 KCMIL	1.0 1.0	37 37	0.661 1.68	95 2.41	0.841 2.14	1080 1607	1216 1810
More Options	500 KCMIL 500 KCMIL	1.0 1.0	37 37	0.789 2.00	95 2.41	0.966 2.45	1543 2296	1702 2533
More Options	750 KCMIL 750 KCMIL	1.0 1.0	61 61	0.968 2.46	110 2.79	1.200 3.05	2315 3445	2544 3786
More Options	1000 KCMIL 1000 KCMIL	1.0 1.0	61 61	1.117 2.84	110 2.79	1.349 3.43	3087 4594	3349 4984
More Options	350 KCMIL 350 KCMIL	1.0 1.0	37 37	0.661 1.68	95 2.41	0.841 2.14	1080 1607	1216 1810

†Ampacities derived from the 2015 Canadian Electrical Code - Table 1 - For single conductor in free air and based on an ambient temperature of 30°C. - Table 2 - for Cable in Conduit. Not more than 3 aluminum conductors in a conduit and based on an ambient temperature of 30°C.

	Cond. Size	Conductor Number	Min. Bend Radius (in) (cm)	Max Pull Tension (lbs) (kg)	DC Resistance at 25C (ohms/1000') (ohms/km)	AC Resistance at 75C (ohms/1000') (ohms/km)	Inductive Reactance (ohms/1000') (ohms/km)	Allowable Ampacity Raceway 75C	Allowable Ampacity Raceway 90C
More Options	1/0 AWG 1/0 AWG	1.0 1.0	2.1 5.33	844 382.83	0.102 0.15	0.122 0.18	0.044 0.07	150 150	170 170
More Options	2/0 AWG 2/0 AWG	1.0 1.0	2.2 5.59	1064 482.62	0.081 0.12	0.097 0.14	0.043 0.06	175 175	195 195
More Options	3/0 AWG 3/0 AWG	1.0 1.0	2.4 6.10	1342 608.72	0.064 0.10	0.078 0.12	0.042 0.06	200 200	225 225
More Options	4/0 AWG 4/0 AWG	1.0 1.0	2.6 6.60	1692 767.48	0.051 0.08	0.062 0.09	0.041 0.06	230 230	260 260
More Options	350 KCMIL 350 KCMIL	1.0 1.0	3.3 8.38	2800 1270.06	0.031 0.05	0.039 0.06	0.040 0.06	310 310	350 350
More Options	500 KCMIL 500 KCMIL	1.0 1.0	3.8 9.65	4000 1814.37	0.022 0.03	0.029 0.04	0.039 0.06	380 380	430 430
More Options	750 KCMIL 750 KCMIL	1.0 1.0	6.0 15.24	6000 2721.55	0.014 0.02	0.022 0.03	0.038 0.06	475 475	535 535
More Options	1000 KCMIL 1000 KCMIL	1.0 1.0	6.7 17.02	8000 3628.74	0.011 0.02	0.018 0.03	0.037 0.06	545 545	615 615
More Options	350 KCMIL 350 KCMIL	1.0 1.0	3.3 8.38	2800 1270.06	0.031 0.05	0.039 0.06	0.040 0.06	310 310	350 350

* Inductive impedance is based on non-ferrous conduit with one diameter spacing center-to-center.

Cond. Size (Strand) ORANGE	Stock Number (Color) GREY	Size	BLACK	WHITE	RED	BLUE	YELLOW	BROWN
1/0 1/0	694140	649133 649133	649135 649135	649138 649138	TBA TBA	TBA TBA	TBA TBA	TBA TBA
2/0 2/0	649089	649082 649082	649084 649084	649086 649086	TBA TBA	TBA TBA	TBA TBA	TBA TBA
3/0 3/0	649149	649142 649142	649144 649144	649147 649147	TBA TBA	TBA TBA	TBA TBA	TBA TBA
4/0 4/0	649098	649091 649091	649093 649093	649096 649096	TBA TBA	TBA TBA	TBA TBA	TBA TBA
250Kcmil 250Kcmil	TBA TBA	TBA TBA	TBA TBA	TBA TBA	TBA TBA	TBA TBA	TBA TBA	TBA TBA
350Kcmil 350Kcmil	649108	649101 649101	649104 649104	649106 649106	TBA TBA	TBA TBA	TBA TBA	TBA TBA
500Kcmil 500Kcmil	649047	649112 649112	649114 649114	649116 649116	TBA TBA	TBA TBA	TBA TBA	TBA TBA
750Kcmil 750Kcmil	649049	649118 649118	649120 649120	649122 649122	TBA TBA	TBA TBA	TBA TBA	TBA TBA
1000Kcmil 1000Kcmil	649131	649124 649124	649126 649126	649128 649128	TBA TBA	TBA TBA	TBA TBA	TBA TBA

Standards & References

ASTM B3 Soft or Annealed Copper Wire
ASTM B8 Concentric-Lay-Stranded Copper Conductors
CSA C22.2 No. 38 Thermoset-insulated wires and cables
CSA C22.2 No.230 Tray Cables - Rated TC-ER (1/0 AWG and Larger)
CSA C22.2 No. 2556 & No. 0.3 Wire and Cable Test Methods
CSA LTGG [-40°C] - as per C68.10 - for Cold Bend and Impact rating
CSA SUN RES - for Sunlight Resistant rating
CSA ST1 Smoke Test - marked FT4-ST1 (1/0 and Larger)
Oil Res I & Sun Res - AWG 8 & Larger

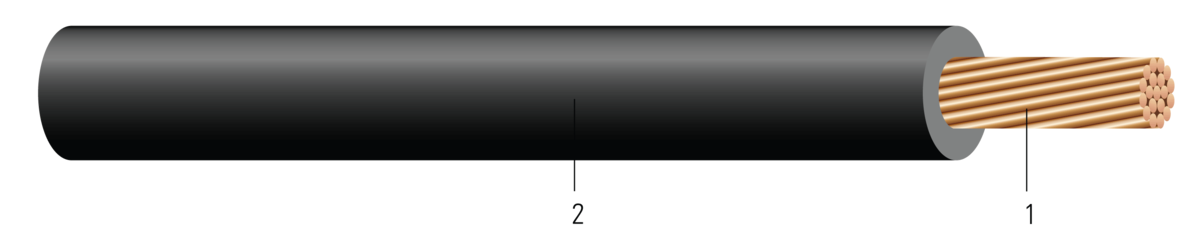

Construction

Conductor: Class B compressed stranded bare copper per ASTM B3 and ASTM B8
Insulation: Cross Linked Polyethylene (XLPE)
