SPEC: 25251

AL XLPE Type RPVU90 2KV SPEC25251

Single Aluminum Conductors, 1000V/2000V, 90°C MAX - 40°C MIN, Sunlight Resistant and FT4 Flame Test Rated

Download Category Specifications

Application & Features

Single aluminum conductor with low temperature, moisture resisting XLPE (cross linked polyethylene) insulation. Sunlight Resistant. This product meets the current RoHS requirements. No lead is added or used in manufacturing.

Specifications

Select a set of products below for more information:

	Cond. Size	Conductor Number	Cond. Strands	Diameter Over Conductor (in) (cm)	Insulation Thickness (mils) (mm)	Approx. OD (in) (cm)	Aluminum Weight (lbs/1000') (kgs/km)	Approx. Weight (lbs/1000') (kgs/km)
More Options	300 KCMIL 300 KCMIL	1 1	35 35	0.569 1.45	110 2.79	0.802 2.04	282 420	423 629
More Options	350 KCMIL 350 KCMIL	1 1	35 35	0.615 1.56	110 2.79	0.836 2.12	329 490	471 701
More Options	500 KCMIL 500 KCMIL	1 1	34 34	0.735 1.87	110 2.79	0.966 2.45	471 701	644 958
More Options	600 KCMIL 600 KCMIL	1 1	41 41	0.812 2.06	125 3.18	1.055 2.68	565 841	770 1146
More Options	750 KCMIL 750 KCMIL	1 1	53 53	0.908 2.31	125 3.18	1.170 2.97	706 1051	947 1409

* Strand count meets minimum number per ASTM
TBA stock codes are estimations only and actual product may vary. Please wait until a stock code is assigned to purchase connectors and/or fittings.

	Cond. Size	Conductor Number	Min. Bend Radius (in) (cm)	Max Pull Tension (lbs) (kg)	DC Resistance at 25C (ohms/1000') (ohms/km)	AC Resistance at 75C (ohms/1000') (ohms/km)	Inductive Reactance (ohms/1000') (ohms/km)	Allowable Ampacity Raceway 75C	Allowable Ampacity Raceway 90C
More Options	300 KCMIL 300 KCMIL	1 1	3.2 8.13	1800 816.47	0.059 0.09	0.071 0.11	0.041 0.06	230 230	260 260
More Options	350 KCMIL 350 KCMIL	1 1	3.3 8.38	2100 952.54	0.050 0.07	0.062 0.09	0.040 0.06	250 250	280 280
More Options	500 KCMIL 500 KCMIL	1 1	3.8 9.65	3000 1360.78	0.035 0.05	0.044 0.07	0.039 0.06	310 310	350 350
More Options	600 KCMIL 600 KCMIL	1 1	5.2 13.21	3600 1632.93	0.029 0.04	0.037 0.06	0.039 0.06	340 340	385 385
More Options	750 KCMIL 750 KCMIL	1 1	5.8 14.73	4500 2041.16	0.024 0.04	0.031 0.05	0.038 0.06	385 385	435 435

* Inductive impedance is based on non-ferrous conduit with one diameter spacing center-to-center.

Stock Code	Size AWG	Color
672572 672572	350 350	Red Red
663032 663032	600 600	Red Red
669289 669289	750 750	Red Red

Standards & References

ASTM B836 Compact Rounded Stranded Aluminum Conductors
CSA C22.2 No. 38 Thermoset-insulated wires and cables
FT1 Flame Test (1,706 BTU/Hr nominal - Vertical Wire Flame Test)
RoHS Compliant Lead-Free, Silicone-Free, Halogen Free
AA 8176 Stranded Aluminum Alloy Conductors
CSA Standard C22.2 No. 271 Photovoltaic Cables

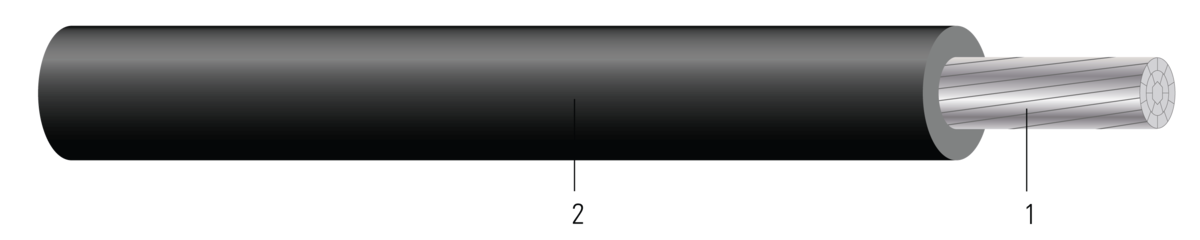

Construction

Conductor:AlumaFlex® Compact Stranded Aluminum Alloy (AA-8176)
Insulation:Cross Linked Polyethylene (XLPE)
