Predominantly used for primary underground distribution in conduit systems suitable for use in wet or dry locations, direct burial, underground duct, and where exposed to sunlight. To be used at 35,000 volts or less and at conductor temperatures not to exceed 105°C for normal operation.
|Stock #||61919401 61919401|
|No. of Conductors||1 1|
|Size (AWG or kcmil) AWG or kcmil mm2||1/0 AWG 1/0 AWG|
|No. of Strands||19 19|
|Insulation Thickness (mils) (mm)||345 8.76||mils mm|
|Nom. OD (mils) (mm)||1410 35.82||mils mm|
|Nominal Total Weight (lbs/1000') (kgs/km)||1003 1492||lbs/1000' kgs/km|
Southwire 35kV Primary UD EPR Cable meets or exceeds the following ASTM specifications:

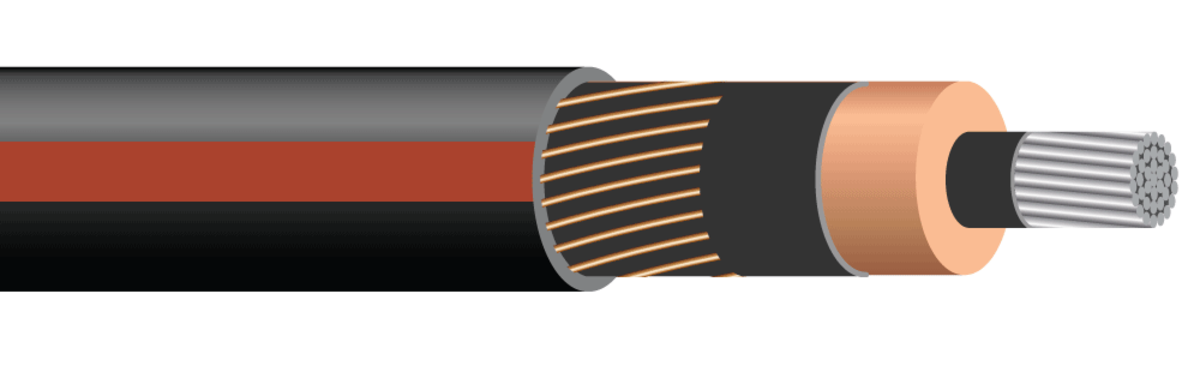

The cable is composed of a moisture blocked unilay compressed stranded 1350-H16/26 aluminum phase conductor, covered by a semi-conducting cross-linked polyethylene strand shield, an ethylene propylene rubber primary insulation, and a semiconducting cross-linked polyethylene insulation shield. Conductors are available with 100% insulation level. A concentric neutral of bare copper wires and a sunlight resistant, -40°C rated, insulating linear low density polyethylene jacket are applied over the insulation shield. The cable is identified by surface print on the jacket and with the lightning bolt symbol for supply cables indented in the jacket. Has red extruded stripes.
