For use as a component hook-up wire in eletrionic manufactured products.
|Stock #||F2201612CS F2201612CS|
|Size (AWG or kcmil) (mm2)||22 AWG 22 AWG|
|No. of Strands||7 7|
|Insulation Thickness (mils) (mm)||15 0.38||mils mm|
|Nom. OD (mils) (mm)||62 1.57||mils mm|
|Nominal Total Weight (lbs/1000') (kgs/km)||4 5||lbs/1000' kgs/km|

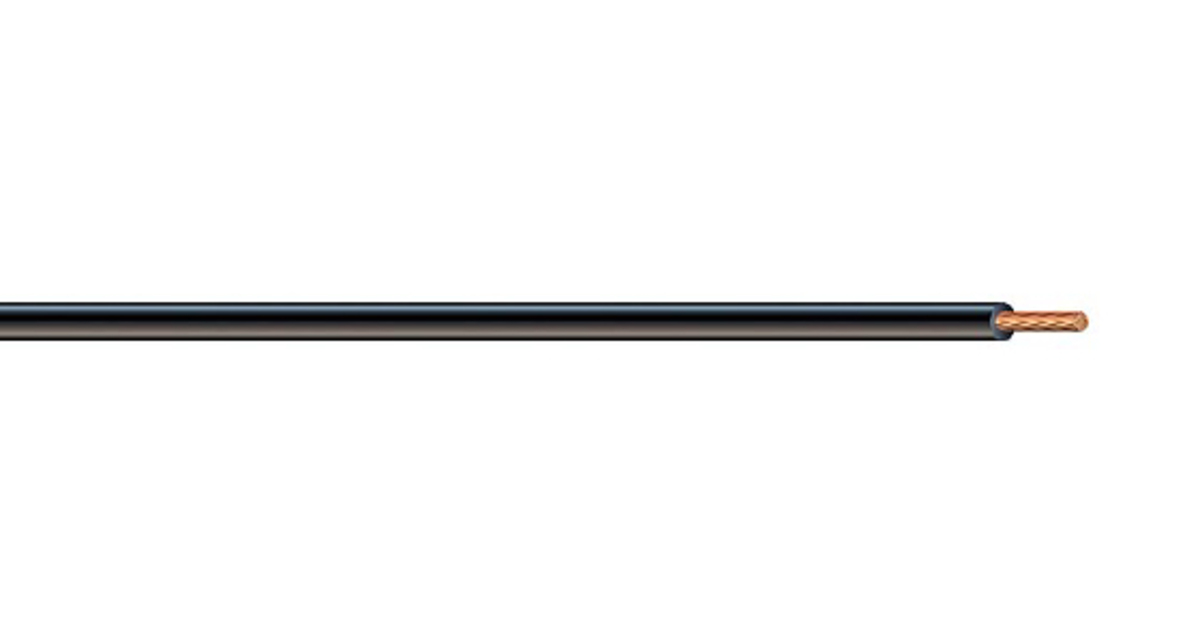

Southwire AWM 1007 is manufactured using solid or stranded tinned copper conductors with PVC insulation. 7 strand product is available with prefused copper strand.
