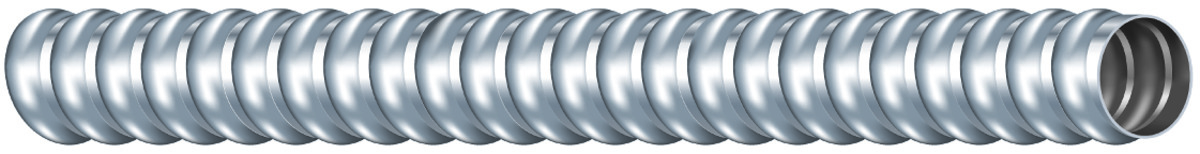

Data-Flex® Flexible Metal Conduit
Flexible Metal Conduit. Crush/Corrosion Resistant. Smooth Interior for Easy Pulling.
Application
Data-Flex® Flexible Metal Conduit is suitable of the following installations:
- Suitable for concealed, exposed, or approved raceways
- Can be used where listed products are not required
Specifications
Select a set of products below for more information:
| Diameter (inches) (centimeters) | |||||
| Trade Size (in) (cm) | Inner Diameter (min/max) | Outer Diameter (min/max) | Nominal Total Weight (lbs/1000') (kgs/km) | Min. Bend Radius (in) (cm) | |
| 552820 |
3/8
0.95
|
|
|
122
181
|
2
5.08
|
| 552821 |
1/2
1.27
|
|
|
193
286
|
3
7.62
|
| 552822 |
3/4
1.91
|
|
|
239
355
|
4
10.16
|
| 552823 |
1
2.54
|
|
|
323
480
|
5
12.70
|
| 552824 |
1-1/4
3.18
|
|
|
460
685
|
6.25
15.88
|
| 552825 |
1-1/2
3.81
|
|
|
583
868
|
7.5
19.05
|
| 552826 |
2
5.08
|
|
|
752
1119
|
10
25.40
|
| 552827 |
2-1/2
6.35
|
|
|
924
1375
|
12.5
31.75
|
| 552829 |
3
7.62
|
|
|
1092
1626
|
15
38.10
|
| 552830 |
3-1/2
8.89
|
|
|
1261
1877
|
17
43.18
|
| 552831 |
4
10.16
|
|
|
1430
2128
|
20
50.80
|
Standards & References
- Smooth metal interior for easy wiring pulling
- Hot-dipped, heavy zinc coating for rust/corrosion resistance
- REACH/RoHS-2 (Chemical Limit) Compliant
Construction
Data-Flex® is manufactured with a spiral wound strip of corrosion-resistant, hot-dipped galvanized steel with a heavy zinc coating.
Resources
There are no downloadable resources for this product.
