Southwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.
|Stock #||55107803 55107803|
|Size (AWG or kcmil)||3 AWG 3 AWG|
|No. of Conductors||1 1|
|No. of Strands||19 19|
|Nom. OD (mils) (mm)||350 8.89||mils mm|
|Insulation Thickness (mils) (mm)||40 1.02||mils mm|
|Jacket Thickness (mils) (mm)||7 0.18||mils mm|
|Nominal Total Weight (lbs/1000') (kgs/km)||190 283||lbs/1000' kgs/km|
|Allowable Ampacity at 60C||85 85|
|Allowable Ampacity at 75C||100 100|
|Allowable Ampacity at 90C||115 115|
|UPC #||032886913457 032886913457|
Southwire® SIMpull THHN® copper conductors comply with the following:

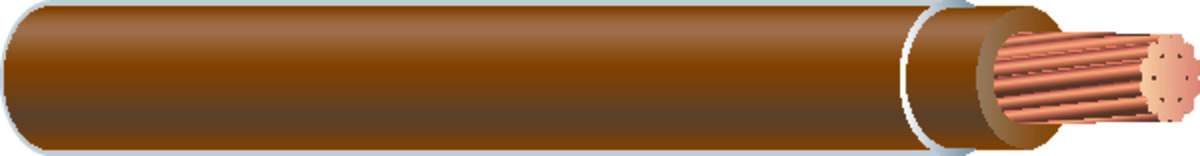

Southwire® SIMpull THHN® copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull® Technology. Marked as THWN-2.
