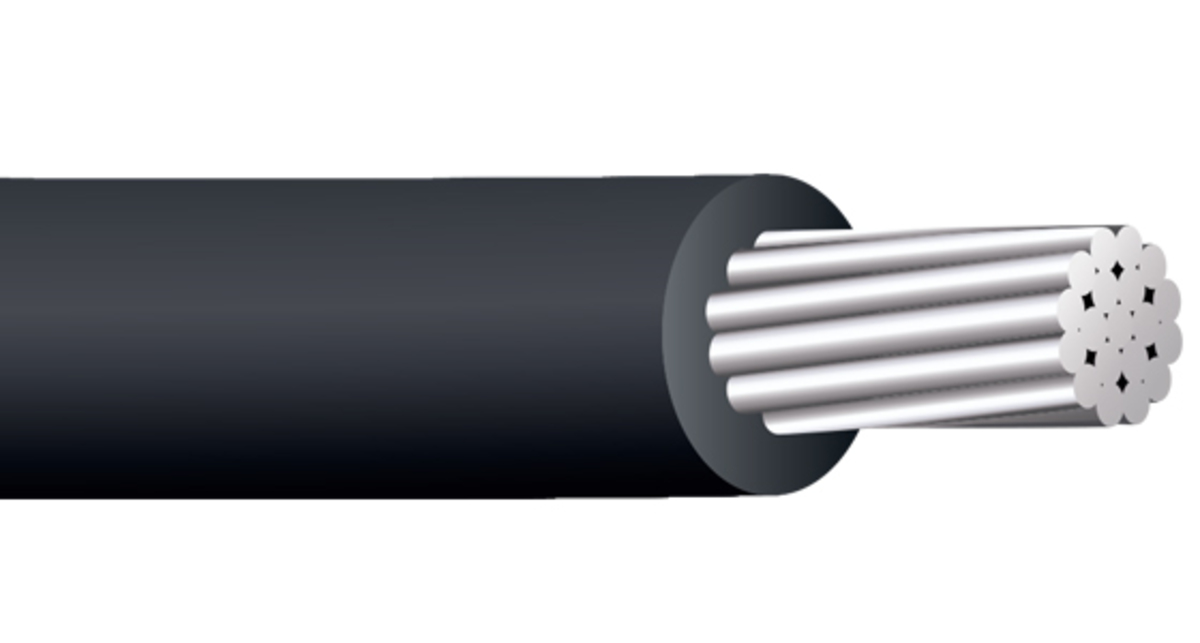

1/0 STR AL 80 MILS 600VUD/HISCORE USE-2

1/0 STR AL 80 MILS 600VUD/HISCORE USE-2

SKU: 30986401
Aluminum Conductor. Ruggedized XLP Insulation. Provides Superior Mechanical Protection.
Download Category Specifications:
Excel Table
Select Product Specifications
Construction
Outer Jacket / Armor Color
Packaging

Application

Used for secondary distribution and underground service at 600 volts or less, either direct burial or in ducts. Especially suited for applications requiring superior resistance to mechanical damage. Rated 90° continuous operation, 130°C emergency overload and short circuit 250°C.

Specifications

measurement
imperial metric
Stock # 30986401 30986401
No. of Conductors 0 0
Size (AWG or kcmil) 1/0 AWG 1/0 AWG
No. of Strands 9 9
Nom. OD (mils) (mm) 512 13.00 mils mm
Nominal Total Weight (lbs/1000') (kgs/km) 147 219 lbs/1000' kgs/km

Standards & References

HI-SCORE single conductor 600 volt secondary UD cable meets or exceeds the following applicable ASTM specifications:

  • B-231 Aluminum 1350 Conductors, Concentric-Lay-Stranded.
  • B-609 Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes

Construction

Conductors are stranded, compressed 1350-H16/H26 aluminum, insulated with a cross-linked polyethylene meeting the requirements of ANSI/ICEA S-81-570. Conductors are durably surface printed for identification.

  • 1350
