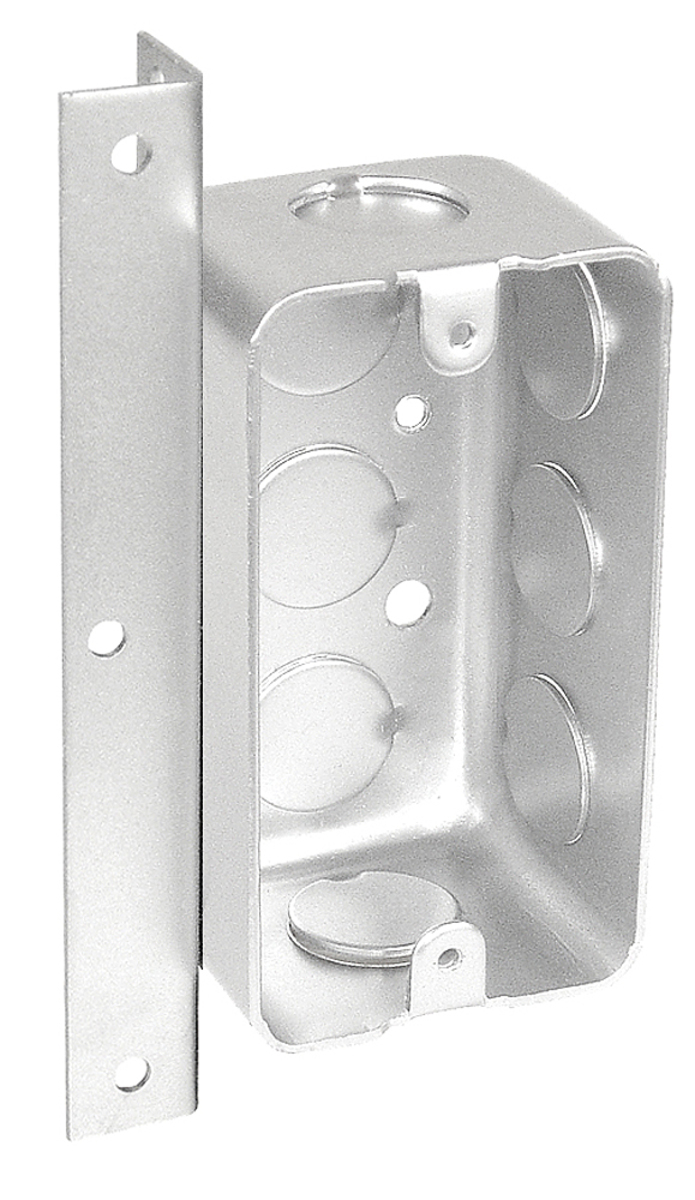

Handy Bracketed Box, 1-7/8" Deep - Drawn, W/ Conduit KO's

Southwire #: G19281-AB Model #: G19281-AB

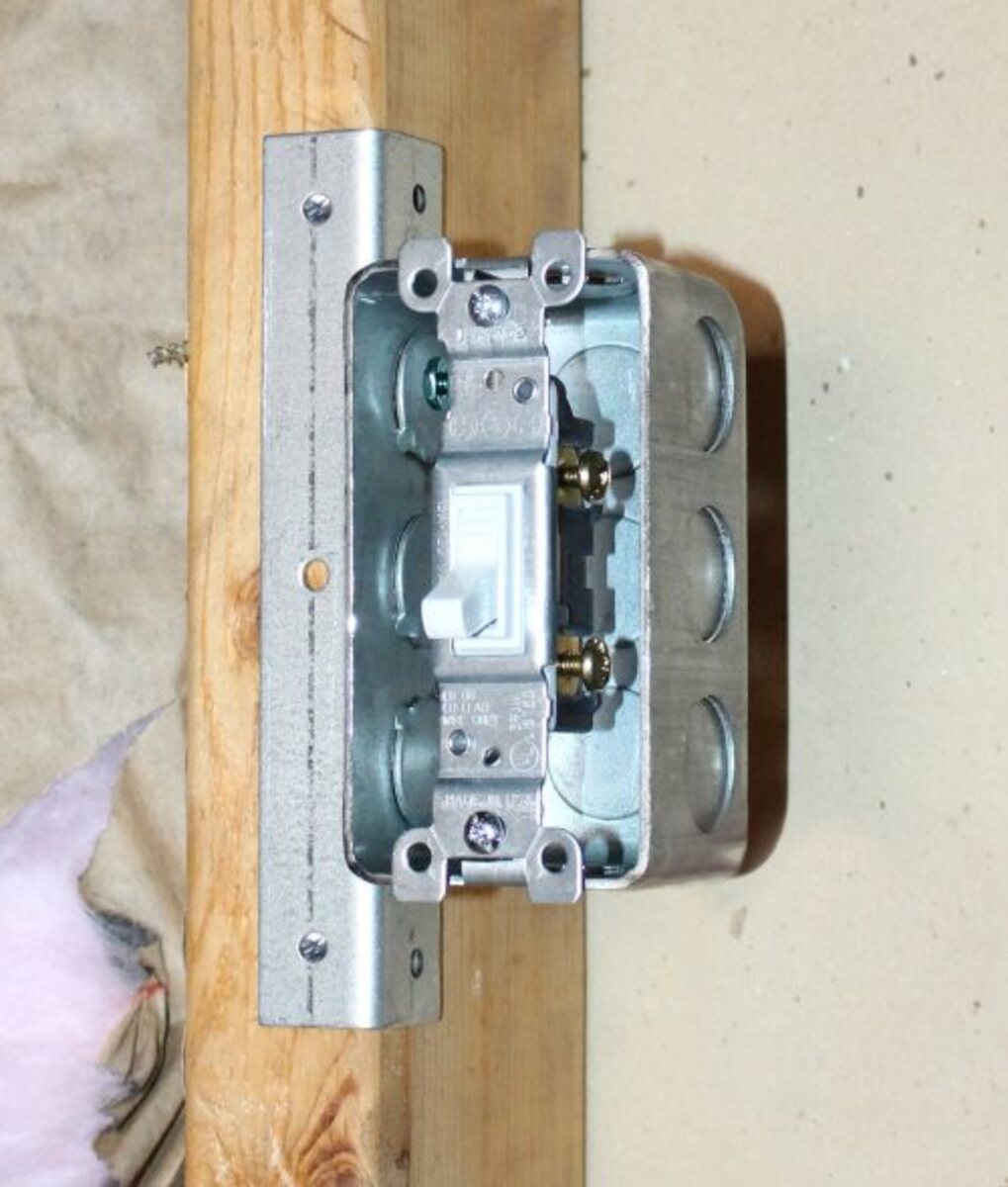

Handy utility boxes are used for convenience outlets, switches and small junction boxes in exposed work applications. Blank boxes are ideal when used in locations where tampering with knockouts may be an issue such as schools, prisons, or high traffic pedestrian areas. Reduces the chance of vandalism.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Raised ground provision ensures ground screw will not interfere with wall surface (reference table)
  • Brackets: AB - Vertical Right Angle
  • UL, RoHS Compliant

Specifications

measurement
imperial metric
Stock # G19281-AB G19281-AB
Model # G19281-AB G19281-AB
UPC # 785592987372 785592987372
Product Height 0.38 0.97 inch cm
Product Width 3.7 9.40 inch cm
Product Weight 0.28 0.13 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 13.0 (213.0) 13.0 (213.0)
Standard Package 10 10
Bottom Knockouts (2) 1/2", (2) 3/4" (2) 1/2", (2) 3/4"
Side Knockouts (5) 1/2" (5) 1/2"
Color Silver Silver
