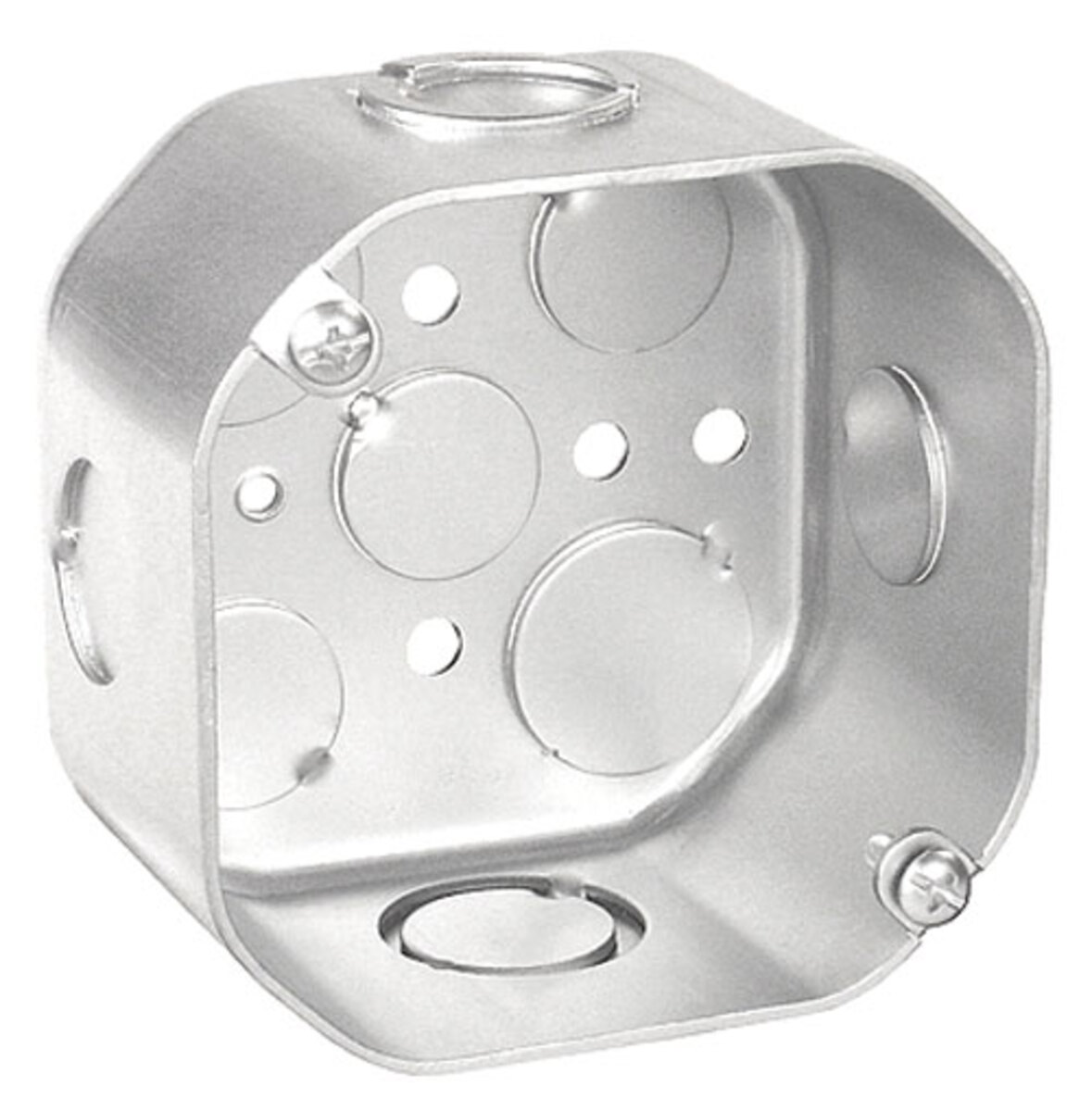

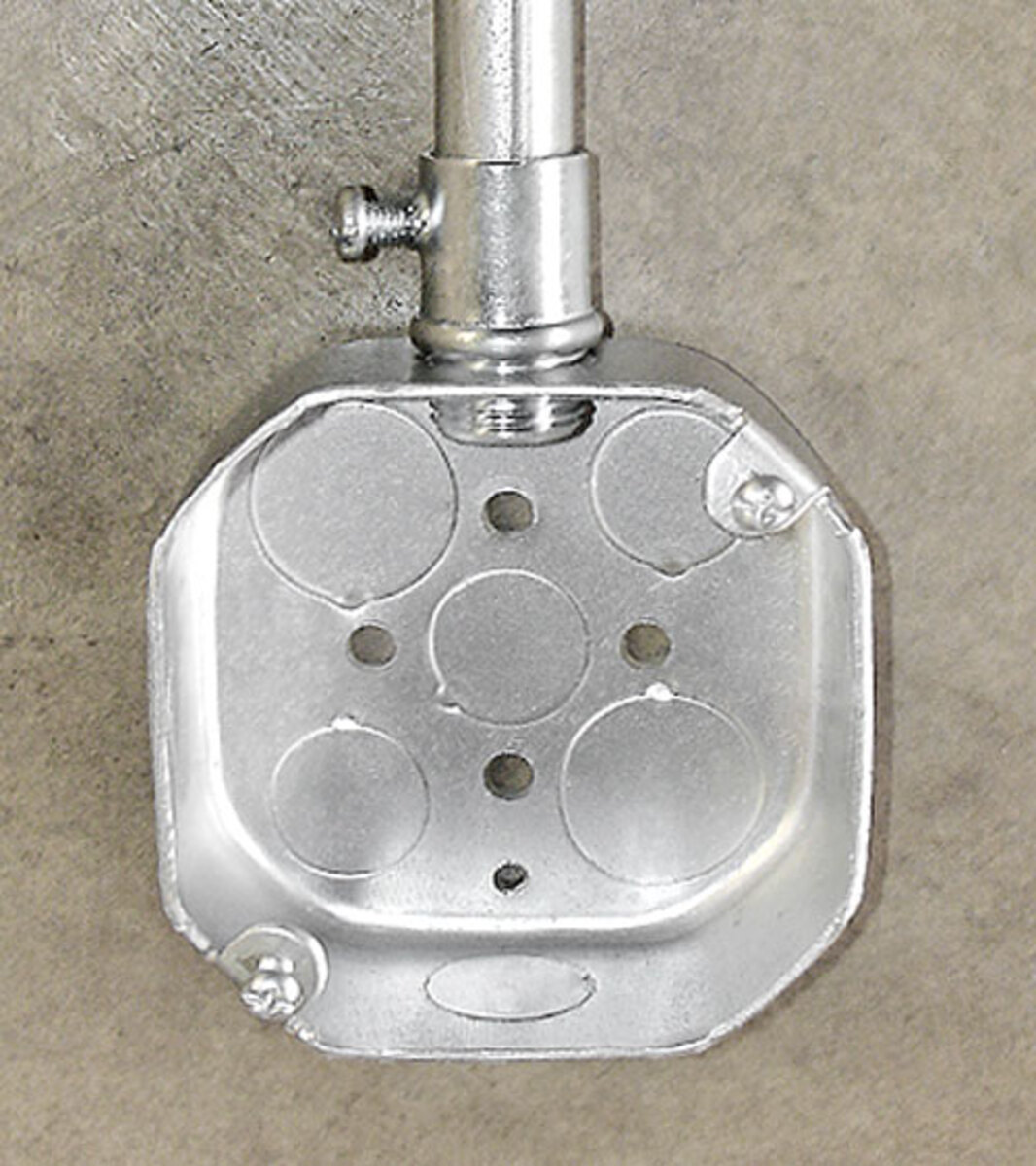

4 IN OCTAGON BX 2-1/8 IN 1/2 & AMP 3/4 KO

Southwire #: 54171-S Model #: 54171-S

Write a Review

4" OCT BOX STL 1/2" & 3/4" CON 2SD KO-50PK

Where to Buy

Download Category Specifications

PDF Excel Table

4 IN OCTAGON BX 2-1/8 IN 1/2 & AMP 3/4 KO

Features & Benefits

Combo-head fixture/cover mounting screws
Combination knockouts allow for greater wiring flexibility
UL, RoHS Compliant

Specifications

Model #	54171-S 54171-S
UPC #	785592541734 785592541734
Product Height	2.13 5.41	inch cm
Product Width	4.0 10.16	inch cm
Product Weight	0.6 0.27	lbs kg
Material	Galvanized Steel Galvanized Steel
Cubic Capacity	20.0 (327.8) 20.0 (327.8)
Standard Package	50 50
Bottom Knockouts	(5) 1/2" (5) 1/2"
Side Knockouts	(2) 1/2", (2) 3/4" (2) 1/2", (2) 3/4"
Color	Silver Silver

Resources

There are no downloadable resources for this product.

Rated 5 out of 5 by Chris4455 from Sleak look all around I installed gang box to run two separate outlets for a patio. Was well pleased with the depth of box and the ease of knockouts. The boxes give a very sleek look for when my cable and boxes are being run in visible areas.

Date published: 2025-04-02
