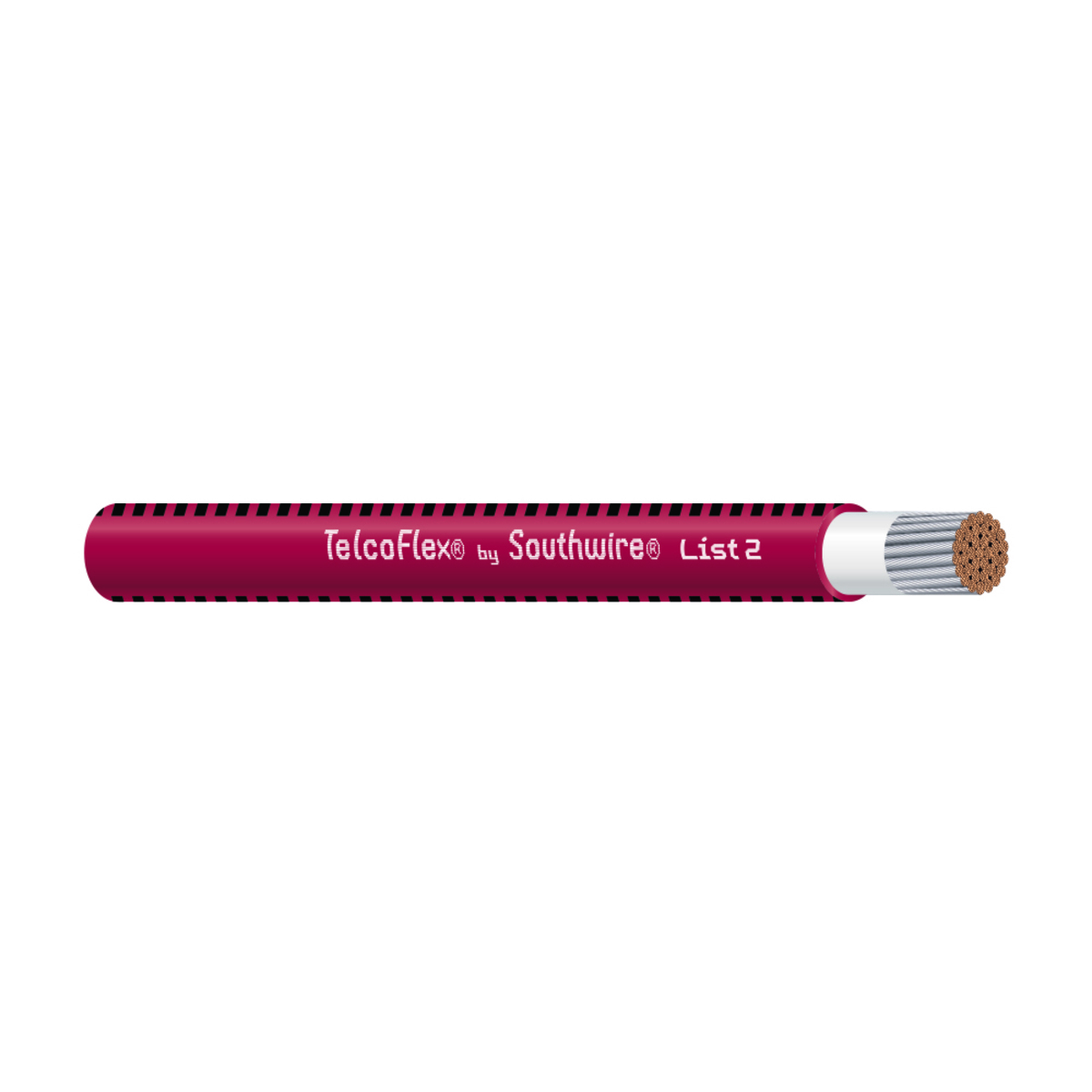

14-41 TINNED CU TELCO L2 RED 10000 FT
Southwire #: 58868001
Limited smoke, Non-halogenated Insulation, 105°C Dry, 60°C Wet
Application
This specification covers the construction requirements for a limited smoke, non-halogenated power cable insulated with TelcoHyde® 5221. UL listed Type RHH, FT4-ST1 in accordance with the National Electrical Code. Product is for use in Central Office, CATV Head End, Data Center and Cell tower applications.
Specifications
| Size (AWG or kcmil) (mm2) | 14 AWG 14 AWG | |
| No. of Strands | 41 41 | |
| Nominal Total Weight (lbs/1000') (kgs/km) | 27 40 | lbs/1000' kgs/km |
| Allowable Ampacity at 75C | 20 20 | |
| Allowable Ampacity at 90C | 25 25 | |
| Insulation Thickness (mils) (mm) | 45 1.14 | mils mm |
| DC Resistance at 25°C | 2.73 2.73 |
Standards & References
- ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
- ASTM B172 Standard Specification for Rope-Lay-Stranded Copper Conductors Having Bunch-Stranded Copper Conductors
- UL 44 Type RHH, FT4-ST1, VW-1, 600 Volts DC or AC
- UL 2731 Telecommunications Central Office Power Cable
- CSA AWM IB 105°C 600V. FT4-ST1
- IEC including 60674 and 60332
- RoHS Complaint, Lead-Free, Silicone-Free
- ATIS-0600017.2014 Non-Halogenated DC Power Wire and Cable for Telecommunications Power Systems
- Telcordia GR-347-CORE
- REACH - European Community Regulation
Construction
- Conductor:Class K (14-10 AWG), Class I modified bunched (8 and 6 AWG) or rope bunched (4 AWG and larger) tinned copper
- Separator:Opaque Mylar tape
- Insulation:Limited smoke, non-halogenated, 105°C Dry, 60°C Wet TelcoHyde® 5221. Conforms to UL 44, UL 758, CSA C22.2 No. 210-11, and Telcordia Specification GR-347- CORE. Insulation has a Limiting Oxygen Index of 35%
