SPEC: 46701

CU Compressed 35kV NLEPR Insulation 100% IL Black SIM-PVC Jacket. MV 105 - Tray Rated - Sunlight Resistant - For Direct Burial

Type MV-105 Single Conductor Copper, 345 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 100% Insulation Level, Tape Shield, SIMpull Polyvinyl Chloride (PVC) Jacket, Dual Rated UL/CSA

Download Category Specifications
PDF Excel Table

Application

Southwire’s 35KV cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial when installed with a grounding conductor in close proximity that conforms to NEC section 311.36 and 250.4(A)(5), and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions. Rated at -35°C for cold bend when UL listed. Rated at -25°C for cold bend and cold impact and marked with "LTDD" when CSA listed or dual UL/CSA listed. PVC jacket is made with SIM technology and has a coefficient of friction COF of 0.2. Cable can be installed in conduit without the aid of lubrication. Rated for 1000 lbs./FT maximum sidewall pressure.

Specifications

Select a set of products below for more information:
Cond. Size (AWG/Kcmil) Cond. Strands Diameter Over Conductor (in) (cm) Diameter Over Insulation (in) (cm) Insulation Thickness (mils) (mm) Diameter Over Shield (in) (cm) Jacket Thickness (mils) (mm) Approx. OD (in) (cm) Approx. Weight (lbs/1000') (kgs/km) Max Pull Tension (lbs) (kg) Min. Bend Radius (in) (cm) Conduit Size (in) (cm)
More Options
1/0 1/0
19 19
0.361 0.92
1.090 2.77
345 8.76
1.150 2.92
80 2.03
1.330 3.38
1073 1597
844 382.83
15.9 40.39
4.0 10.16
More Options
2/0 2/0
19 19
0.405 1.03
1.134 2.88
345 8.76
1.194 3.03
80 2.03
1.374 3.49
1195 1778
1064 482.62
16.4 41.66
4.0 10.16
More Options
3/0 3/0
19 19
0.456 1.16
1.184 3.01
345 8.76
1.244 3.16
80 2.03
1.424 3.62
1344 2000
1342 608.72
17.0 43.18
4.0 10.16
More Options
4/0 4/0
19 19
0.512 1.30
1.240 3.15
345 8.76
1.300 3.30
80 2.03
1.480 3.76
1527 2272
1692 767.48
17.7 44.96
4.5 11.43
More Options
250 250
37 37
0.558 1.42
1.294 3.29
345 8.76
1.385 3.52
80 2.03
1.565 3.98
1742 2592
2000 907.18
18.7 47.50
4.5 11.43
More Options
350 350
37 37
0.661 1.68
1.397 3.55
345 8.76
1.457 3.70
80 2.03
1.637 4.16
2090 3110
2800 1270.06
19.6 49.78
4.5 11.43
More Options
500 500
37 37
0.789 2.00
1.502 3.82
345 8.76
1.562 3.97
110 2.79
1.802 4.58
2743 4082
4000 1814.37
21.6 54.86
5.0 12.70
More Options
750 750
61 61
0.968 2.46
1.714 4.35
345 8.76
1.774 4.51
110 2.79
2.014 5.12
3714 5527
6000 2721.55
24.1 61.21
6.0 15.24
More Options
1000 1000
61 61
1.117 2.84
1.863 4.73
345 8.76
1.923 4.88
110 2.79
2.163 5.49
4623 6880
8000 3628.74
25.9 65.79
6.0 15.24

* Conduit size based on 3 phase 40% fill-factor without ground

Cond. Size (AWG/Kcmil) DC Resistance @ 25C (ohms/1000') (ohms/km) AC Resistance @ 75C (ohms/1000') (ohms/km) Capacitive Reactance (Mohms x 1000ft) (Mohms x km) Inductive Reactance (ohms/1000') (ohms/km) Zero Sequence Impedance (ohms/1000') (ohms/1000') Positive Sequence Impedance (ohms/1000') (ohms/1000') Shield Short Circuit Current 6 Cycles (amps) In Duct Ampacity @ 90C (amps) In Duct Ampacity @ 105C (amps) In Air Ampacity @ 90C (amps) In Air Ampacity @ 105C (amps)
More Options
1/0 1/0
0.102 0.15
0.128 0.19
0.057 0.08
0.052 0.08
0.479 + j0.309 0.479 + j0.309
0.129 + j0.052 0.129 + j0.052
3590 3590
200 200
215 215
260 260
290 290
More Options
2/0 2/0
0.081 0.12
0.102 0.15
0.053 0.08
0.050 0.07
0.449 + j0.295 0.449 + j0.295
0.103 + j0.05 0.103 + j0.05
3727 3727
230 230
245 245
300 300
330 330
More Options
3/0 3/0
0.064 0.10
0.081 0.12
0.049 0.07
0.048 0.07
0.423 + j0.281 0.423 + j0.281
0.082 + j0.048 0.082 + j0.048
3885 3885
260 260
275 275
345 345
380 380
More Options
4/0 4/0
0.051 0.08
0.065 0.10
0.046 0.07
0.046 0.07
0.402 + j0.266 0.402 + j0.266
0.066 + j0.046 0.066 + j0.046
4058 4058
295 295
315 315
395 395
445 445
More Options
250 250
0.043 0.06
0.056 0.08
0.043 0.06
0.045 0.07
0.387 + j0.253 0.387 + j0.253
0.057 + j0.045 0.057 + j0.045
4226 4226
325 325
345 345
440 440
490 490
More Options
350 350
0.031 0.05
0.041 0.06
0.039 0.06
0.043 0.06
0.362 + j0.23 0.362 + j0.23
0.042 + j0.043 0.042 + j0.043
4545 4545
390 390
415 415
545 545
605 605
More Options
500 500
0.022 0.03
0.030 0.04
0.034 0.05
0.041 0.06
0.338 + j0.206 0.338 + j0.206
0.031 + j0.041 0.031 + j0.041
4941 4941
465 465
500 500
680 680
755 755
More Options
750 750
0.014 0.02
0.023 0.03
0.029 0.04
0.039 0.06
0.313 + j0.177 0.313 + j0.177
0.024 + j0.038 0.024 + j0.038
5527 5527
565 565
610 610
870 870
970 970
More Options
1000 1000
0.011 0.02
0.019 0.03
0.026 0.04
0.037 0.06
0.296 + j0.158 0.296 + j0.158
0.02 + j0.037 0.02 + j0.037
5989 5989
640 640
690 690
1040 1040
1160 1160

* NEC ampacities are based on:
* For Duct: Table 310.60(C)(11) Detail 1.
* For Free Air: Table 310.60(C)(3).
* Inductive impedance is based on non-ferrous conduit with one diameter spacing center-to-center.
* Sequence Impedance values are based on Rho Earth Resistivity: 100 Ohm-Meter/1000ft, Spacing: one diameter spacing center-to-center..
* Capacitive Reactance is between Phase-to-Shield.

Standards & References

  • ASTM B3 Soft or Annealed Copper Wire
  • ASTM B8 Concentric-Lay-Stranded Copper Conductors
  • ASTM B33 Standard Specification for Tin-Coated Soft or Annealed Copper Wire
  • UL 1072 Medium-Voltage Power Cables
  • UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test (1/0 and Larger)
  • CSA C22.2 No.230 Tray Cables - Rated TC-ER (1/0 AWG and Larger)
  • CSA C22.2 No. 2556 / UL 2556 Cable Test Methods
  • CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications - 5 to 46 KV
  • ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
  • ICEA S-97-682 Standard for Shielded Utility Cable Rated for 5 - 46kV
  • IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test (1/0 and Larger)
  • AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV (Qualification Test Requirements)
  • Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661

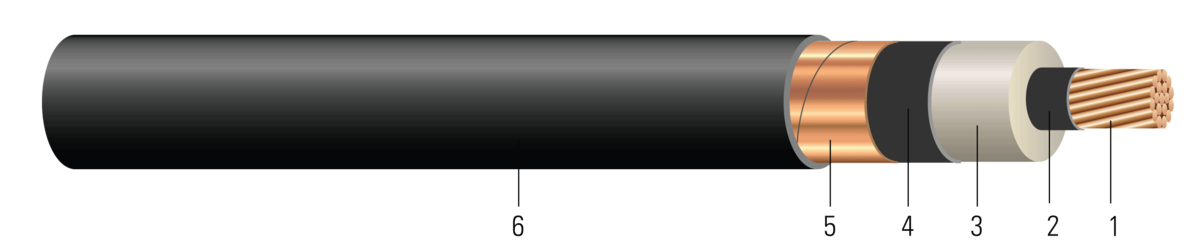

Construction

  1. Conductor: Class B compressed stranded bare copper per ASTM B3 and ASTM B8 (Tinned Copper per ASTM B33 optional)
  2. Conductor Shield: Semi-conducting cross-linked copolymer
  3. Insulation: 345 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 100% Insulation Level,
  4. Insulation Shield: Strippable semi-conducting cross-linked copolymer
  5. Copper Tape Shield: Helically wrapped 5 mil copper tape with 25% overlap
  6. Overall Jacket: Polyvinyl Chloride (PVC)
