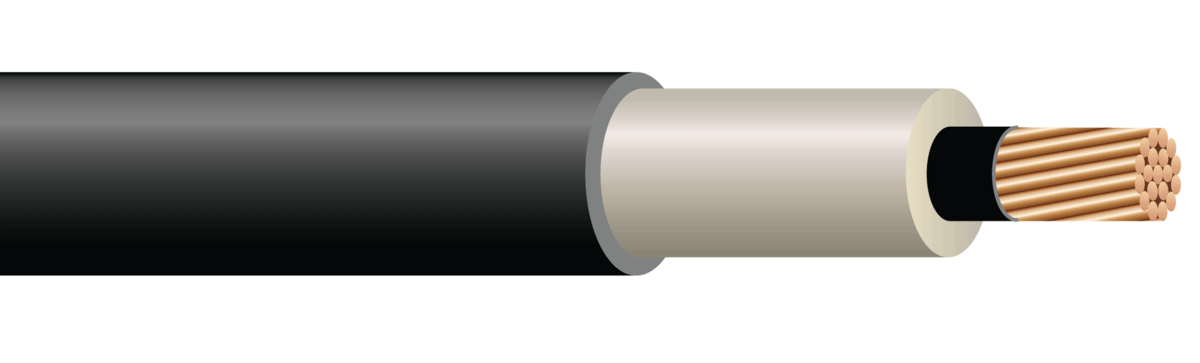

Southwire’s 2.4KV cables are suited for use in wet and dry areas, conduits, ducts, troughs, direct burial, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation, 130°C for emergency overload, and 250°C for short circuit conditions. Rated at -35°C for cold bend. PVC jacket is made with SIM technology and has a coefficient of friction COF of 0.2. Cable can be installed in conduit without the aid of lubrication. Rated for 1000 lbs./FT maximum sidewall pressure.
|Stock #||60725999 60725999|
|No. of Conductors||1 1|
|Size (AWG or kcmil) (mm2)||4/0 AWG 4/0 AWG|
|No. of Strands||19 19|
|Insulation Thickness (mils) (mm)||125 3.18||mils mm|
|Nom. OD (mils) (mm)||995 25.27||mils mm|
|Nominal Total Weight (lbs/1000') (kgs/km)||978 1456||lbs/1000' kgs/km|
