SPEC: 13057

OSDP Access Control SPEC13057

OSDP COMPOSITE CABLE - Four Cable Component Assemblies 75°C, 300V Plenum Rated

Download Category Specifications

Application & Features

Access control doors with four functions, typically device dependent. General purpose low voltage and power-limited systems' circuits to NEC Articles 725 and 800.

Voltage: 300 Volts
Temperature: 75ºC

Specifications

Select more options below for part numbers, packaging, and color options:

	Cond. Size	Conductor Number	Cond. Strands	Approx. OD (in) (cm)	Approx. Weight (lbs/1000') (kgs/km)
More Options	22 AWG 22 AWG	26 26	19 19	0.417 1.06	92 137

Stock Code inch	Conductor Size mm	Jacket Thickness lb/1000ft	Nominal OD kg/km	Nonminal Weight	AWG	mil	mm
H93001	6 cable assy 18 AWG And 8 cable assy 22 AWG 6 cable assy 18 AWG And 8 cable assy 22 AWG	15 15	0.381 0.381	0.417 0.417	10.592 10.592	92 92	136.9 136.9

Standards & References

ASTM B3 Soft or Annealed Copper Wire
UL 444 Communications Cables (22 AWG - 16 AWG)
Made in America: Compliant with both Buy American and Buy America Act (BAA) requirements per 49 U.S.C. § 5323(j) and the Federal Transit Administration Buy America requirements per 49 C.F.R. part 661

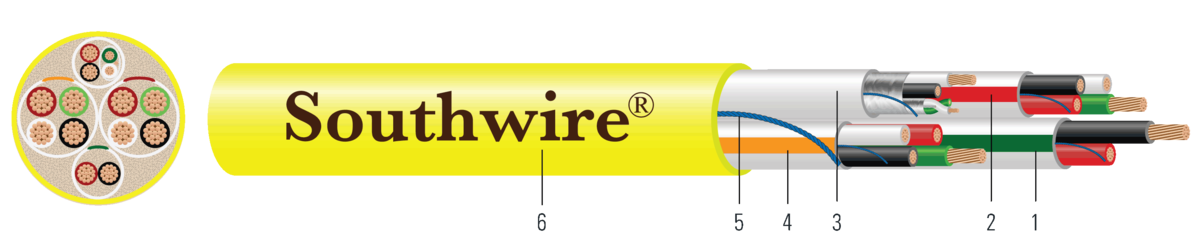

Construction

Door:
- Number of Conductors: 4/C 22 AWG stranded bare copper per ASTM B3
- Conductor Insulation: Plenum Polymer
  - Color Code: Black, red, white, and green
- Rip Cord: Nylon rip cord
- Jacket: White/red stripe Plenum Polymer
- Nominal Diameter: 0.116 inch

REX/Spare:
- Number of Conductors: 2/C 22 AWG stranded bare copper per ASTM B3
- Conductor Insulation: Plenum Polymer
  - Color Code: Black and red
- Rip Cord: Nylon rip cord
- Jacket: White/green stripe Plenum Polymer
- Nominal Diameter: 0.133 inch

OSDP:
- Number of Conductors: 2/C 18 AWG stranded bare copper + 2/C 22 AWG tinned copper shielded
- Insulation:
  - Plenum Polymer on 18 AWG (black & red)
  - Foam FEP on 22 AWG (green & white)
- Pair Drain Wire: 24 AWG stranded tinned copper
- Pair Shield: Aluminum/Polyester
- Low CAP Cable Electricals:
  - Impedance:120 Ω
  - Capacitance:12.5 pF/ft
- Rip Cord: Nylon rip cord
- Jacket: White Plenum Polymer
- Nominal Diameter: 0.220 inch

Lock Power:
- Number of Conductors: 4/C 18 AWG stranded bare copper per ASTM B3
- Insulation: Plenum Polymer
  - Color Code: Black, red, white, and green
- Rip Cord: Nylon rip cord
- Jacket: White/orange stripe Plenum Polymer
- Nominal Diameter: 0.174 inch

Rip Cord: Nylon rip cord

Overall Construction: Four components are cabled together and overall jacketed
- Jacket: Yellow Remguard Plenum Polymer
- Jacket Thickness: 15 mil
- Nominal Diameter: 0.414 inch
