4/0-4/0-4/0-2/0 3E AL USE-2 RHH RHW-2 MOBILE HOME FEEDER 500 FT

Southwire #: 28714401

Underground Service Entrance Cable. 600 Volt. Alumaflex® Brand Aluminum Alloy (AA-8176) Conductor. Cross-linked Polyethylene (XLP) Insulation. Sunlight Resistant.

Download Category Specifications
PDF Excel Table
Select Product Specifications
Conductor Color


Southwire® Type mobile home feeder is intended for the connection of mobile homes to a supply of electricity where permanent wiring is required as specified in the 2011 National Electrical Code. Suitable for direct burial in earth at conductor temperatures not to exceed 90°C. Voltage rating is 600 volts.


Stock # 28714401 28714401
Size (AWG or kcmil) (mm2) 4/0 AWG 4/0 AWG
No. of Conductors 2 2
No. of Strands 19 19
Size (AWG) 4/0 4/0
No. of Neutrals 1 1
No. of Strands 19 19
Size (AWG) 2/0 2/0
No. of Grounds 1 1
No. of Strands 12 12
Nom. OD (mils) (mm) 1552 39.43 mils mm
Nominal Total Weight (lbs/1000') (kgs/km) 1002 1492 lbs/1000' kgs/km
Allowable Ampacity 200 200
UPC # 032886579073 032886579073

Standards & References

Southwire® Type RHH or RHW-2 or USE-2 conductors comply with the following:

  • ASTM B800 and B836
  • UL Standard 44
  • UL Standard 854
  • Federal Specification A-A-59544
  • National Electrical Code, NFPA 70
  • NEMA WC-70 Construction Requirements
  • RoHS/Reach Compliant

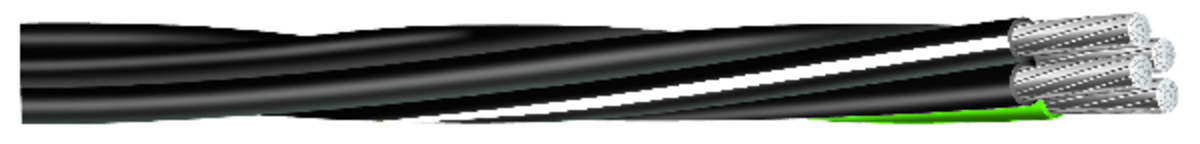

Southwire® mobile home feeder consists of four plexed type RHH or RHW-2 or USE-2 Alumaflex® Brand AA-8000 series aluminum alloy compacted conductors. The cable contains 2 triple-extruded phase conductors, a white striped neutral conductor and a green grounding conductor to eliminate the need for field marking per the National Electrical Code. The insulation is sunlight resistant.
