SPEC: 26306

HVTECK CU 1/C 220NLEPR CB PVC AIA PVC 15kV 133% CSA SPEC26306

Single Conductor, 220 Mils No Lead Ethylene Propylene Rubber (NL-EPR), 133% Insulation Level, Concentric Bond, Polyvinyl Chloride (PVC) Inner Jacket, Aluminum Interlocked Armour (AIA), Polyvinyl Chloride (PVC) Jacket

Download Category Specifications

Application & Features

Southwire's 15kV HVTECK is a CSA armoured cable for industrial and commercial medium voltage applications. Rated FT4, -40°C, Hazardous Locations (HL). These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions. Rated for 1000 lbs /FT maximum sidewall pressure. These cables feature sunlight and moisture resistance, exceptional corona resistance, resistance to most chemical soils and acids and are flame retardant.

Specifications

Select a set of products below for more information:

	Cond. Size	Cond. Strands	Diameter Over Conductor (in) (cm)	Diameter Over Insulation (in) (cm)	Insulation Thickness (mils) (mm)	Diameter Over Shield (in) (cm)	Inner Jacket Thickness (mils) (mm)	Diameter Over Armor (in) (cm)	Drain Wire	Jacket Thickness (mils) (mm)	Approx. OD (in) (cm)	Approx. Weight (lbs/1000') (kgs/km)	Max Pull Tension (lbs) (kg)	Min. Bend Radius (in) (cm)
More Options	2/0 AWG 2/0 AWG	19 19	0.405 1.03	0.884 2.25	220 5.59	0.944 2.40	80 2.03	1.424 3.62	11x14 11x14	60 1.52	1.524 3.87	1398 2080	1064 482.62	18.3 46.48
More Options	500 KCMIL 500 KCMIL	37 37	0.789 2.00	1.252 3.18	220 5.59	1.312 3.33	80 2.03	1.950 4.95	26x14 26x14	60 1.52	2.070 5.26	3214 4783	4000 1814.37	24.8 62.99
More Options	750 KCMIL 750 KCMIL	61 61	0.968 2.46	1.464 3.72	220 5.59	1.524 3.87	110 2.79	2.276 5.78	21x12 21x12	75 1.91	2.426 6.16	4617 6871	6000 2721.55	29.1 73.91

1 Comply with ICEA S-93-639 Appendix C for jacket thickness determination
TBA stock codes are estimations only and actual product may vary. Please wait until a stock code is assigned to purchase connectors and/or fittings.

	Cond. Size	DC Resistance at 25C (ohms/1000') (ohms/km)	AC Resistance at 75C (ohms/1000') (ohms/km)	Capacitive Reactance (ohms/1000') (ohms/km)	Inductive Reactance (ohms/1000') (ohms/km)	Zero Sequence Impedance (ohms/1000') (ohms/1000')	Positive Sequence Impedance (ohms/1000') (ohms/1000')	Shield Short Circuit Current 6 Cycles	Allowable Ampacity Directly Buried 90C	Allowable Ampacity In Air 90C
More Options	2/0 AWG 2/0 AWG	0.081 0.12	0.102 0.15	0.038 0.06	0.052 0.08	0.460 + j0.368 0.460 + j0.368	0.103 + j0.052 0.103 + j0.052	8577 8577	306 306	317 317
More Options	500 KCMIL 500 KCMIL	0.022 0.03	0.030 0.04	0.022 0.03	0.044 0.07	0.358 + j0.252 0.358 + j0.252	0.031 + j0.044 0.031 + j0.044	20275 20275	497 497	616 616
More Options	750 KCMIL 750 KCMIL	0.014 0.02	0.023 0.03	0.020 0.03	0.043 0.06	0.333 + j0.214 0.333 + j0.214	0.024 + j0.043 0.024 + j0.043	26018 26018	551 551	706 706

* Inductive impedance is based on non-ferrous conduit with one diameter spacing center-to-center.
* CEC ampacities are based on:
3-1/C in air copper and aluminum: D17M
3-1/C direct buried copper and aluminum: D17A

Standards & References

ASTM B3 Soft or Annealed Copper Wire
ASTM B8 Concentric-Lay-Stranded Copper Conductors
CSA C22.2 No. 174 Cables in Hazardous Locations
CSA C22.2 No. 2556 & No. 0.3 Wire and Cable Test Methods
CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications - 5 to 46 KV
CSA C68.3 Shielded & Concentric Neutral Power Cable - 5 to 46 kV
CSA LTGG [-40°C] - as per C68.10 - for Cold Bend and Impact rating
CSA HL - for Hazardous Locations rating
CSA SUN RES - for Sunlight Resistant rating
ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
ICEA T-29-520 Flame Test (210,000 BTU/Hr)
IEEE 383 Flame Test (70,000 btu)
IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test (1/0 and Larger)
FT1 Flame Test (1,706 BTU/Hr nominal - Vertical Wire Flame Test)
AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV (Qualification Test Requirements)

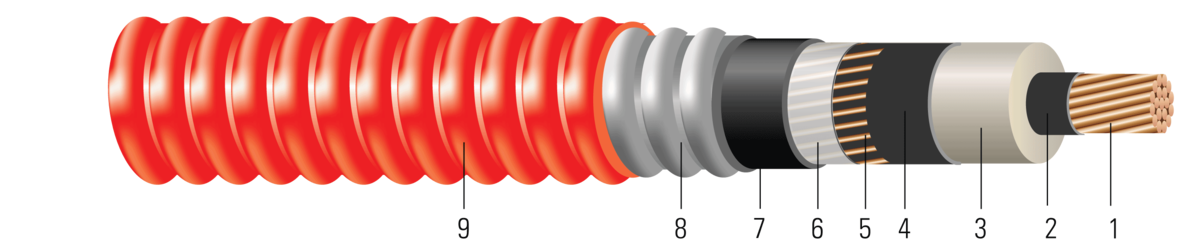

Construction

Conductor:Class B compressed stranded bare copper per ASTM B3 and ASTM B8
Conductor Shield:Semi-conducting cross-linked copolymer
Insulation:220 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% insulation level
Insulation Shield:Strippable semi-conducting cross-linked copolymer
Concentric Shield:Concentrically applied copper bond / shield wires. Complies with greater than the minimum requirement as per Table 44, CSA Standard C68.10 and Table 16A, Canadian Electrical Code Part 1
Neutral Separator:Mylar tape
Inner Jacket:PVC inner jacket
Armour:Aluminum Interlocked Armour (AIA)
Overall Jacket:Red Polyvinyl Chloride (PVC) Jacket
