Bending

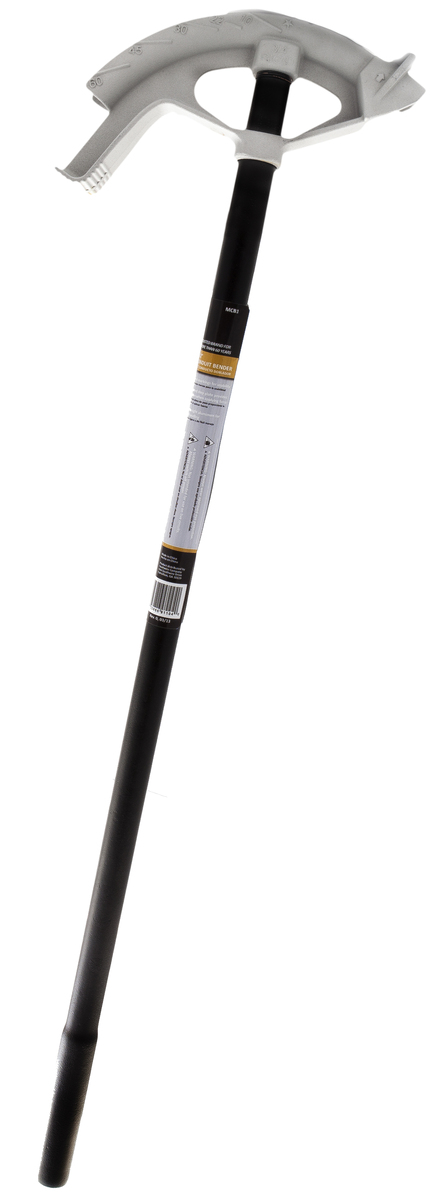

MCB1/2, 1/2" CONDUIT BENDER ALUMINUM

Southwire #: 58281340 Model #: MCB1/2

Write a Review

Reliably and repeatedly performs common bends, such as stub-ups, offsets, back-to-back and saddle bends.

Where to Buy

Download Category Specifications

PDF Excel Table

Features & Benefits

REPETITIVELY PERFORM RELIABLE BENDS: Performs common bends, such as stubby-ups, offset, back-to-back and saddle bends
LARGE SERRATED STEP: Provides greater control and helps prevent slippage when applying force

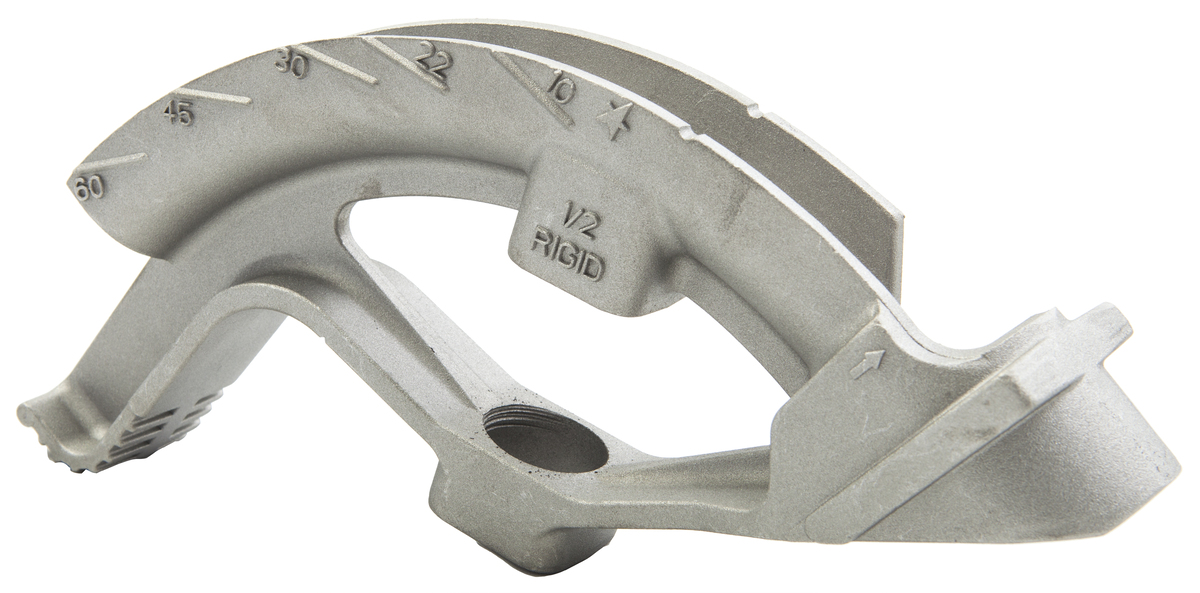

EASY TO READ: Raised and highly visible bender markings are cast on both sides of the bender head, making measurements easy to read no matter how you bend it
BUILT FOR WORK: The durable cast aluminum head is built to provide lasting durability, extra strength and to withstand rugged jobsites
GROOVED HOOK: prevents Conduit from slipping, twisting or rolling when performing bends

Specifications

Model #	MCB1/2 MCB1/2
UPC #	032886911040 032886911040
Conduit Type	EMT EMT

Resources

Southwire Hand Tools Catalog

What size manual bender do I need for 1/2” Alumn conduit?

Asked by: Bevickers

MCB1/2 1/2" EMT Conduit Bender with Handle (Aluminum Head) for 1/2" EMT or MCB3/4 3/4" EMT Conduit Bender with Handle (Aluminum Head) for 3/4" EMT or 1/2" Rigid.

Answered by: SW Tools

Date published: 2020-07-27

When the handle is straight up, is the bend a 30 degree or a 45 degree?

Asked by: Inquire

It is 30 degrees.

Answered by: Southwire

Date published: 2020-07-18

What is the center line radius of the bend this tool creates?

Asked by: Codazoda

The center line bend radius of the MCB1/2 is 4.5 inches.

Answered by: Southwire

Date published: 2020-09-12

Do you have a bending guide for your half Inch bender

Asked by: Masterwatt

Unfortunately, we do not. We apologize for any inconvenience.

Answered by: SouthwireTools

Date published: 2021-09-06
