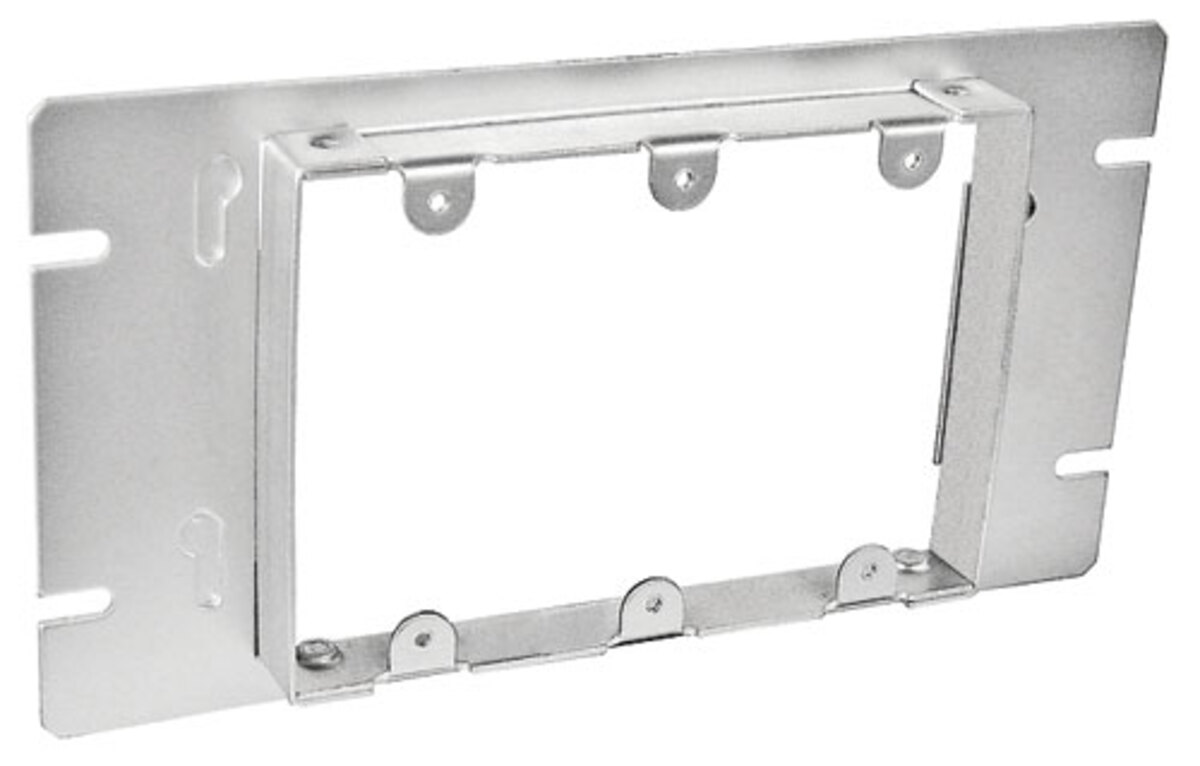

Three Gang Multi-Gang Box Device Ring - Raised 3/4"

Southwire #: GBDC-343 Model #: GBDC-343

Multi-gang raised device covers are used when multiple electrical or low voltage devices must be installed in finished wall applications. Gang box raised device covers allow the installer to mount multiple devices in one box location and attach finished wall plates flush with interior drywall plaster or tile surfaces.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Each cover fits corresponding box size and one box size smaller
  • UL, CUL, RoHS Compliant

Specifications

measurement
imperial metric
Stock # GBDC-343 GBDC-343
Model # GBDC-343 GBDC-343
UPC # 785592109460 785592109460
Product Height 1.19 3.02 inch cm
Product Width 4.06 10.31 inch cm
Product Weight 0.75 0.34 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 17.0 (278.58) 17.0 (278.58)
Standard Package 25 25
Color Silver Silver
