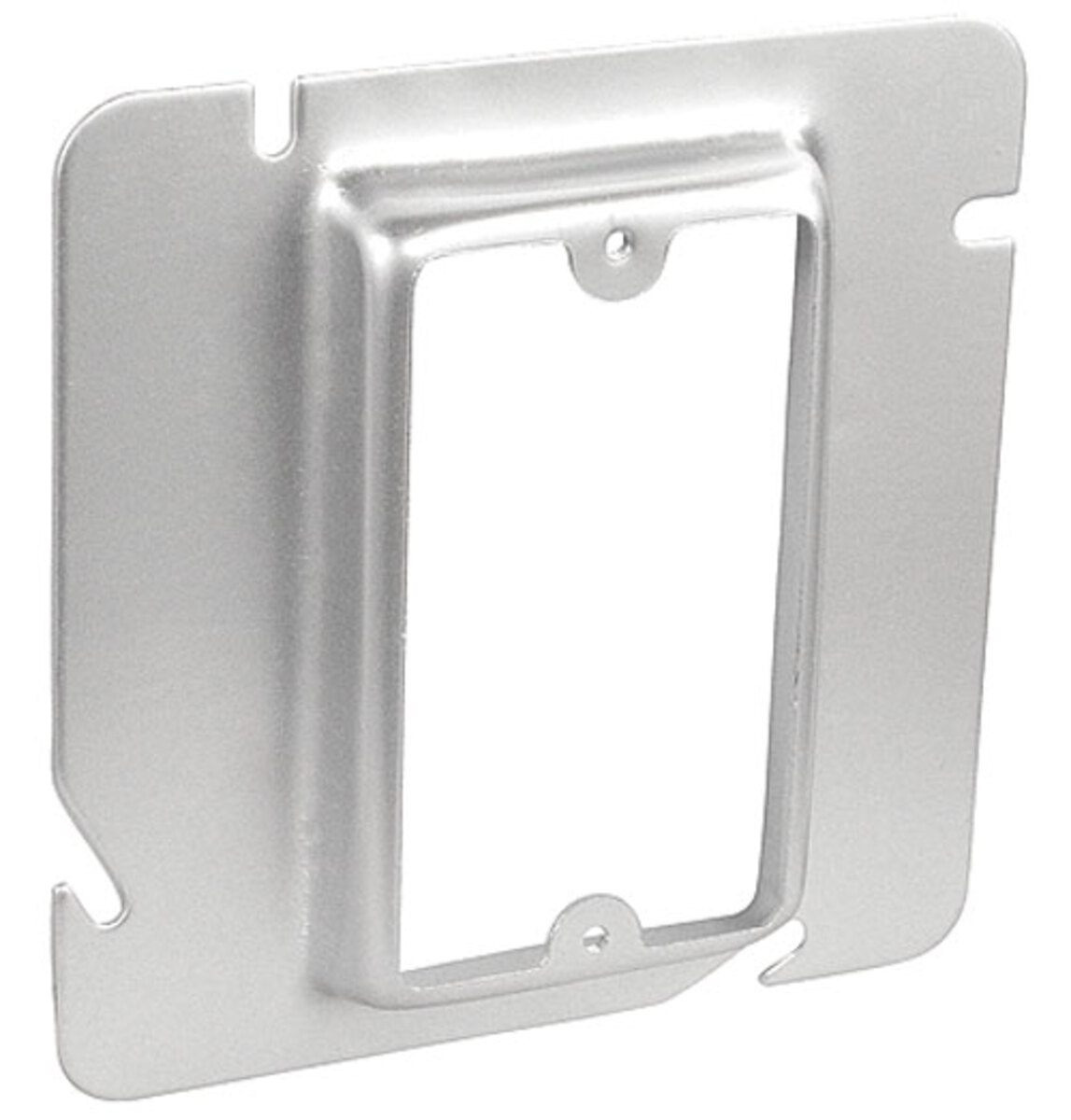

6" Square One Gang Device Ring - 5/8" Raised

Southwire #: 61-5/8 Model #: 61-5/8

6" square single device rings are used with 6" square boxes to mount switches, receptacles and devices.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Angled slots on the covers compensate for up to 12 degrees of box misalignment on upright framing members
  • UL, RoHS Compliant

Specifications

measurement
imperial metric
Stock # 61-5/8 61-5/8
Model # 61-5/8 61-5/8
UPC # 785592982407 785592982407
Product Height 8.5 21.59 inch cm
Product Width 5.75 14.61 inch cm
Product Weight 0.44 0.20 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 5.0 (81.9) 5.0 (81.9)
Standard Package 25 25
Bottom Knockouts (3) 1/2", (2) 3/4" (3) 1/2", (2) 3/4"
Color Silver Silver
