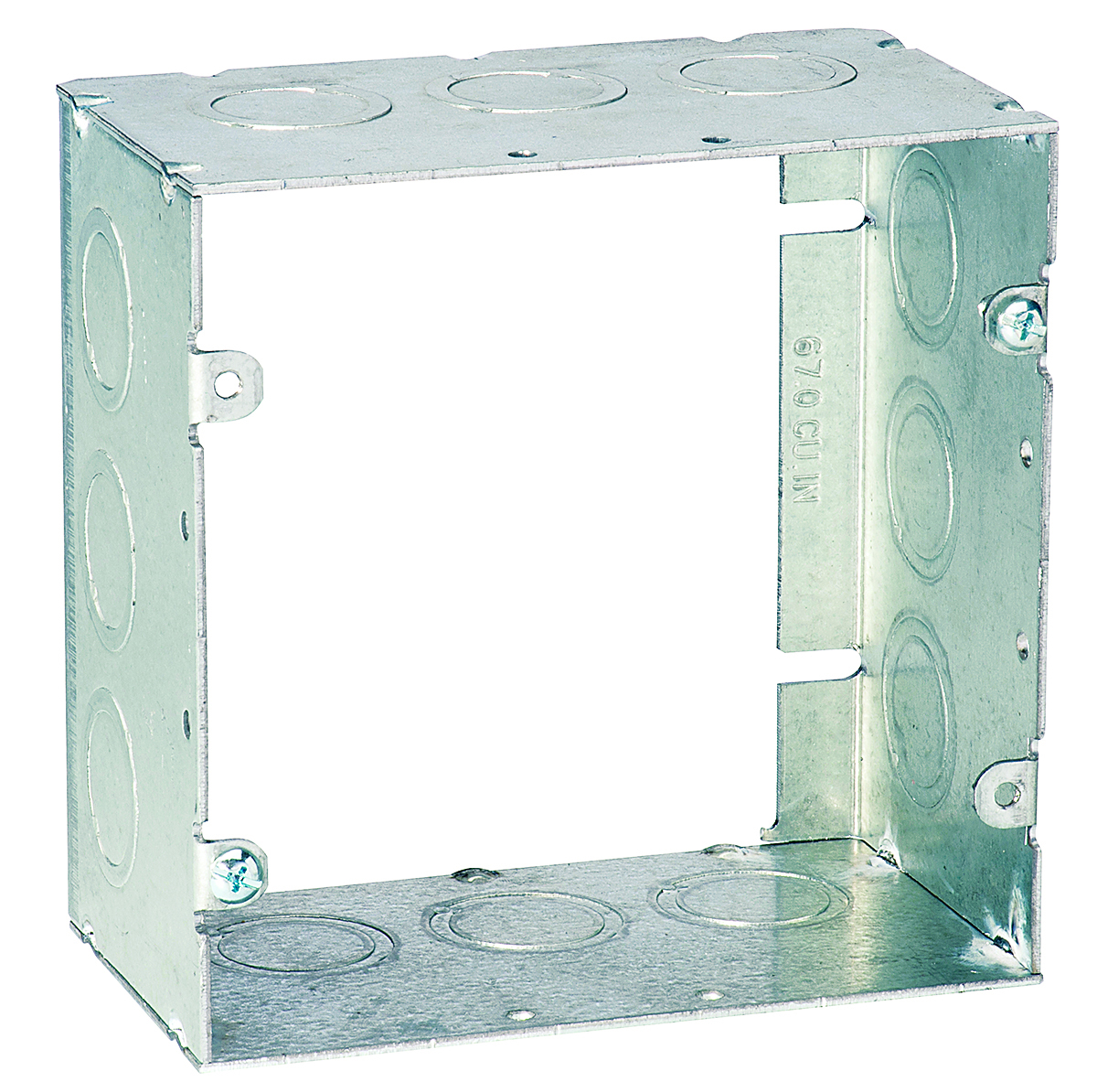

5" Square Extension Ring, 2-7/8" Deep - Welded, W/Conduit KO's

Southwire #: 5XT5075 Model #: 5XT5075

5" square extension rings are added to junction boxes to increase wiring capacity and provide access for additional conduit runs and electrical wire. Extension rings prevent the need to remove old conduit boxes and wiring from circuits when additional capacity is needed.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Combination knockouts allow for greater wiring flexibility
  • Combination Phillips/Slotted screw heads.
  • UL, RoHS Compliant

Specifications

Stock # 5XT5075 5XT5075
Model # 5XT5075 5XT5075
UPC # 785592127716 785592127716
Product Height 0.5 1.27 inch cm
Product Width 4.0 10.16 inch cm
Product Weight 0.33 0.15 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 67.0 (1097.9) 67.0 (1097.9)
Standard Package 25 25
Bottom Knockouts (1) 1/2" (1) 1/2"
Side Knockouts (12) 1/2" - 3/4" (12) 1/2" - 3/4"
Color Silver Silver

Resources

There are no downloadable resources for this product.
