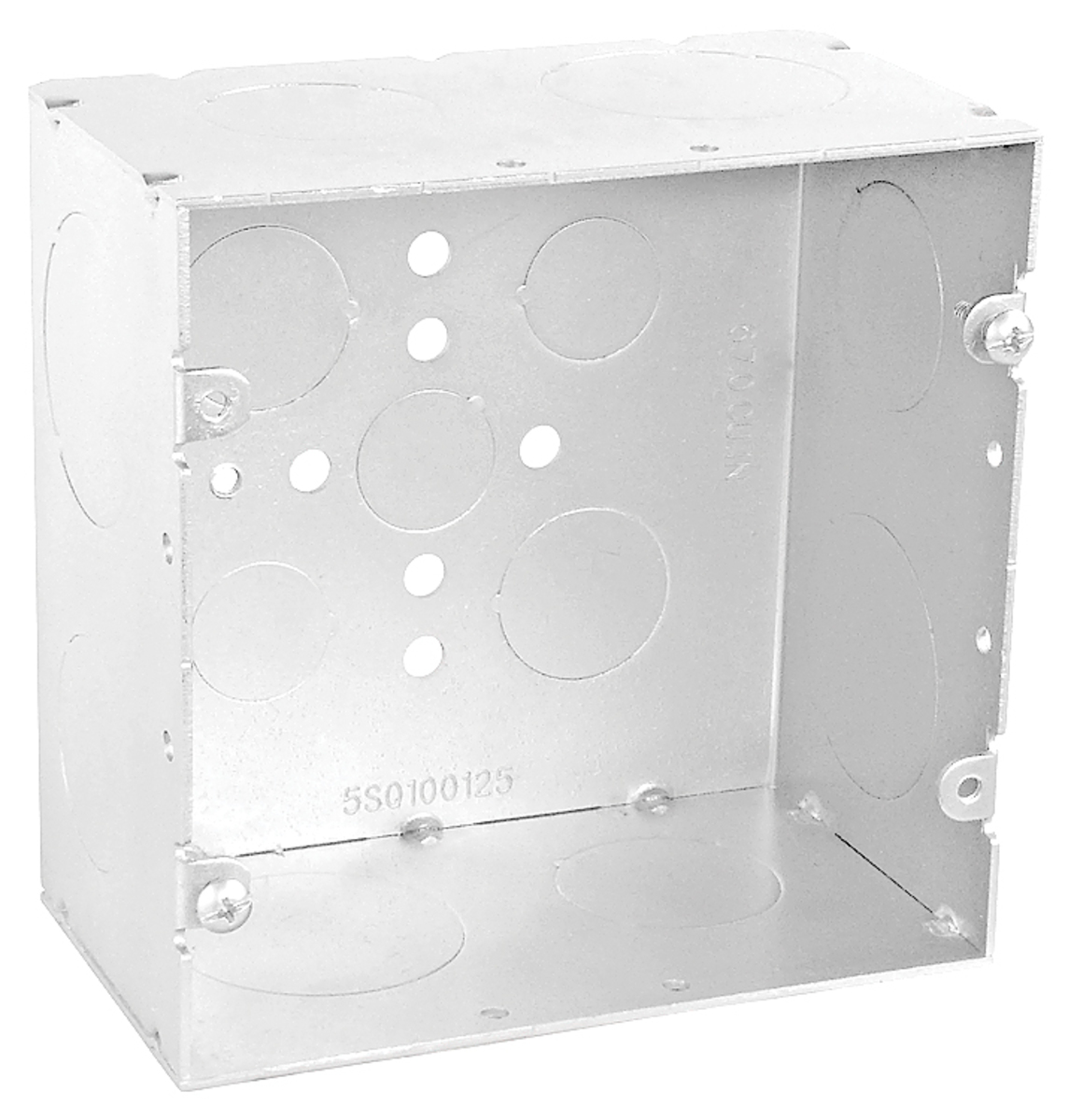

5" Square Box, 2-7/8" Deep - Welded, W/Conduit KO's
Southwire #: 5SQ100125
Model #: 5SQ100125
5" square boxes are used to distribute power to a number of electrical devices where multiple conductor runs are split into two or more directions. Larger cu. in. capacity provides additional space for conductors or devices. Perfect solution for sensitive bend radius data cable.
Download Category Specifications
Excel Table
Register Product
Register Product
Features & Benefits
- Combination Phillips/Slotted screw heads.
Specifications
| Stock # | 5SQ100125 5SQ100125 | |
| Model # | 5SQ100125 5SQ100125 | |
| UPC # | 785592123633 785592123633 | |
| Product Height | 2.88 7.32 | inch cm |
| Product Width | 5.0 12.70 | inch cm |
| Product Weight | 0.34 0.15 | lbs kg |
| Material | Galvanized Steel Galvanized Steel | |
| Cubic Capacity | 67.0 (1097.9) 67.0 (1097.9) | |
| Standard Package | 10 10 | |
| Bottom Knockouts | (2) 3/4", (3) 1/2" (2) 3/4", (3) 1/2" | |
| Side Knockouts | (4) 1", (4) 1-1/4" (4) 1", (4) 1-1/4" | |
| Color | Silver Silver |
