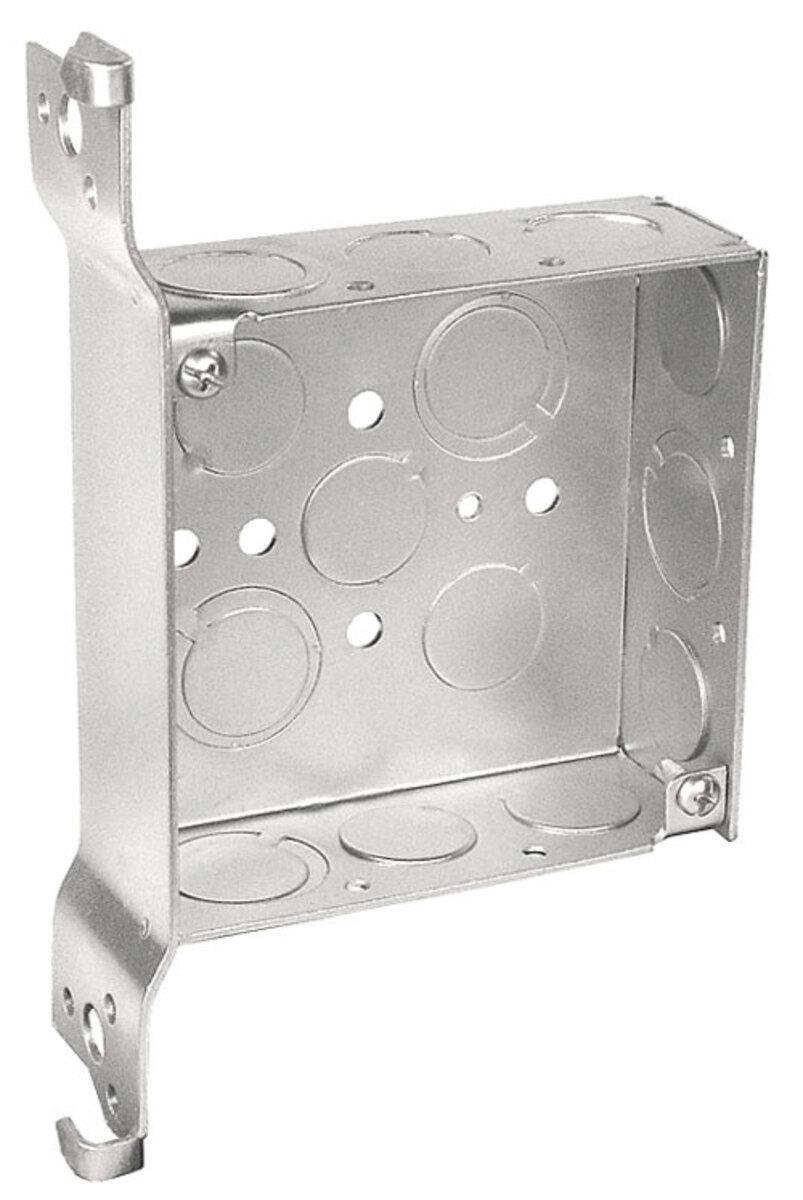

4" Square Bracketed Box, 1-1/2" Deep - Welded, W/Conduit KO's

Southwire #: 52151-SWB Model #: 52151-SWB

4 SQ JUNCT BX 1-1/2 IN VERT WD SPIKE BRK

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Combination knockouts allow for greater wiring flexibility
  • Combination Phillips/Slotted screw heads.

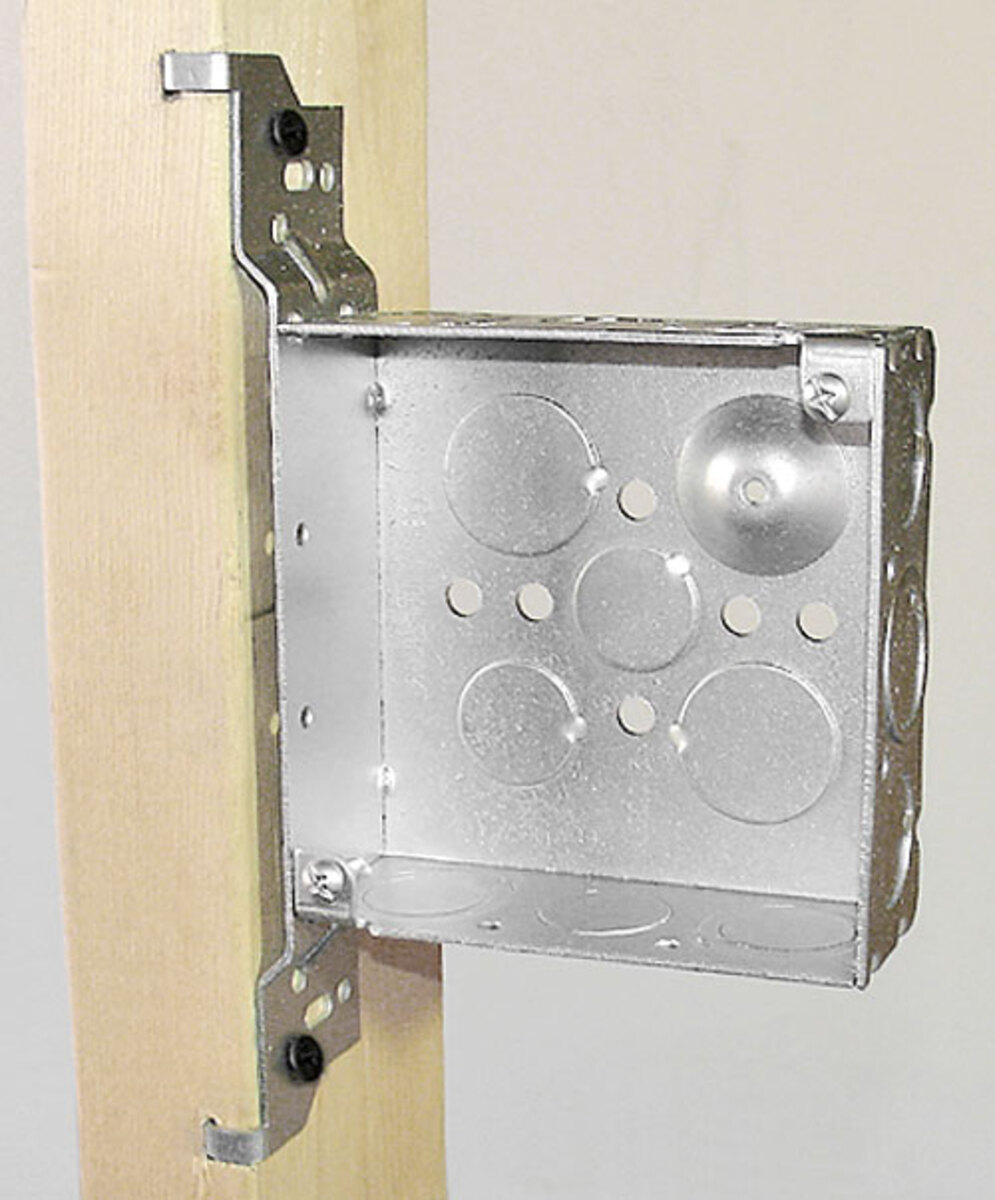

  • Brackets: WB - Vertical Wood Spike
  • UL, RoHS Compliant

Specifications

Stock # 52151-SWB 52151-SWB
Model # 52151-SWB 52151-SWB
UPC # 785592400680 785592400680
Product Height 1.5 3.81 inch cm
Product Width 4.69 11.91 inch cm
Product Weight 0.65 0.29 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 21.0 (344.1) 21.0 (344.1)
Standard Package 5 5
Bottom Knockouts (6) 1/2", (4) 3/4" (6) 1/2", (4) 3/4"
Side Knockouts (6) 1/2", (3) 1/2" - 3/4" (6) 1/2", (3) 1/2" - 3/4"
Color Silver Silver
