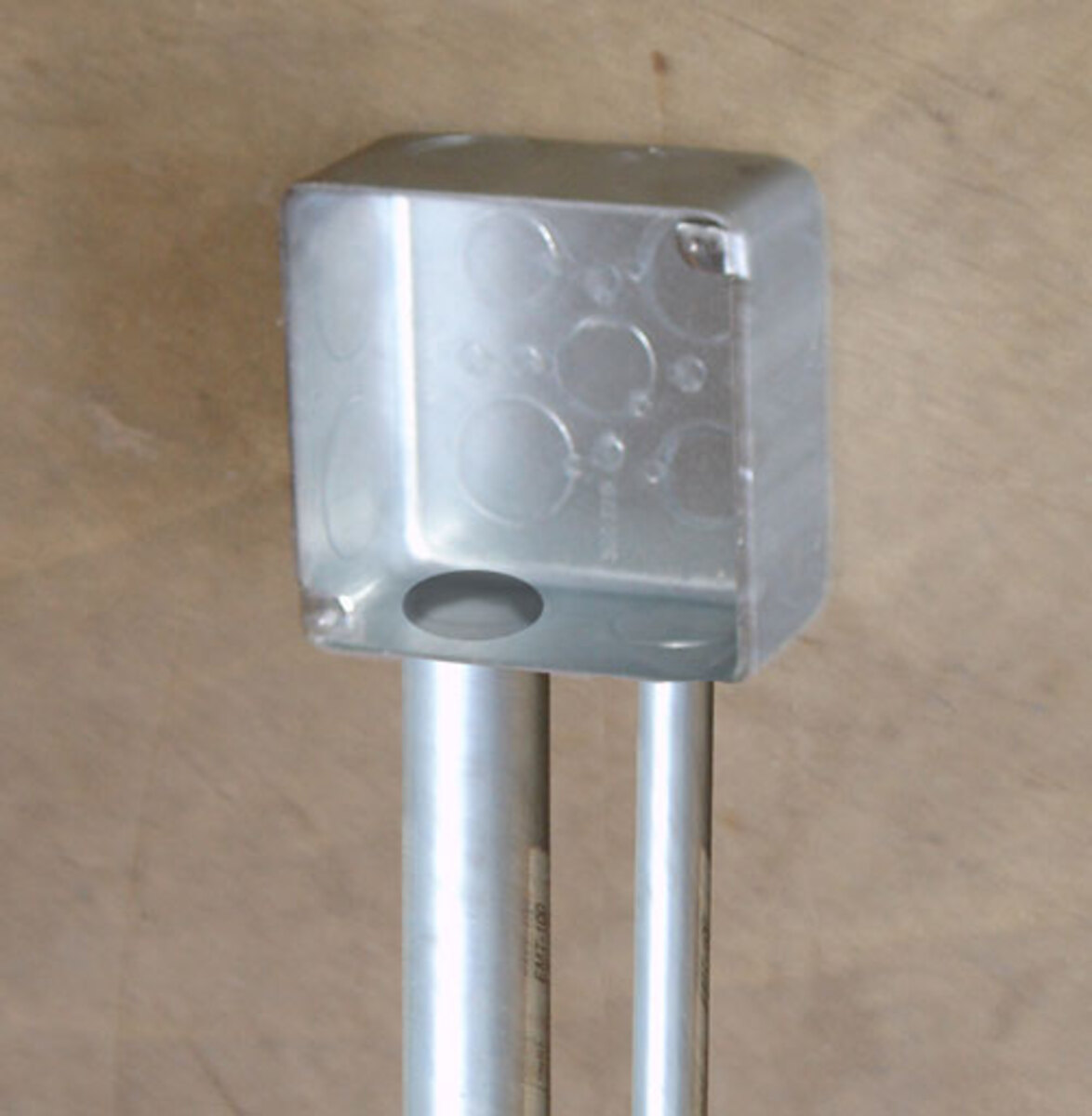

4" Square Box, 2-1/8" Deep - Drawn, W/Conduit KO's

Southwire #: 52171-3/4-1VT Model #: 52171-3/4-1VT

Plenum boxes are used in air-plenum wall or ceiling surfaces to install lighting fixtures, switches, receptacles or other outlet devices. Square boxes are used to bring power to a number of electrical devices where multiple conductor runs are split in two or more directions.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Drawn construction with airtight knockouts and mounting/nail holes
  • Cover mounting screws included with plenum cover
  • UL, RoHS Compliant

Specifications

measurement
imperial metric
Stock # 52171-3/4-1VT 52171-3/4-1VT
Model # 52171-3/4-1VT 52171-3/4-1VT
UPC # 785592981486 785592981486
Product Height 2.13 5.41 inch cm
Product Width 4.0 10.16 inch cm
Product Weight 0.78 0.35 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 30.3 (496.5) 30.3 (496.5)
Standard Package 50 50
Bottom Knockouts (3) 1/2", (2) 3/4" (3) 1/2", (2) 3/4"
Side Knockouts (4) 3/4", (4) 1" (4) 3/4", (4) 1"
Color Silver Silver
