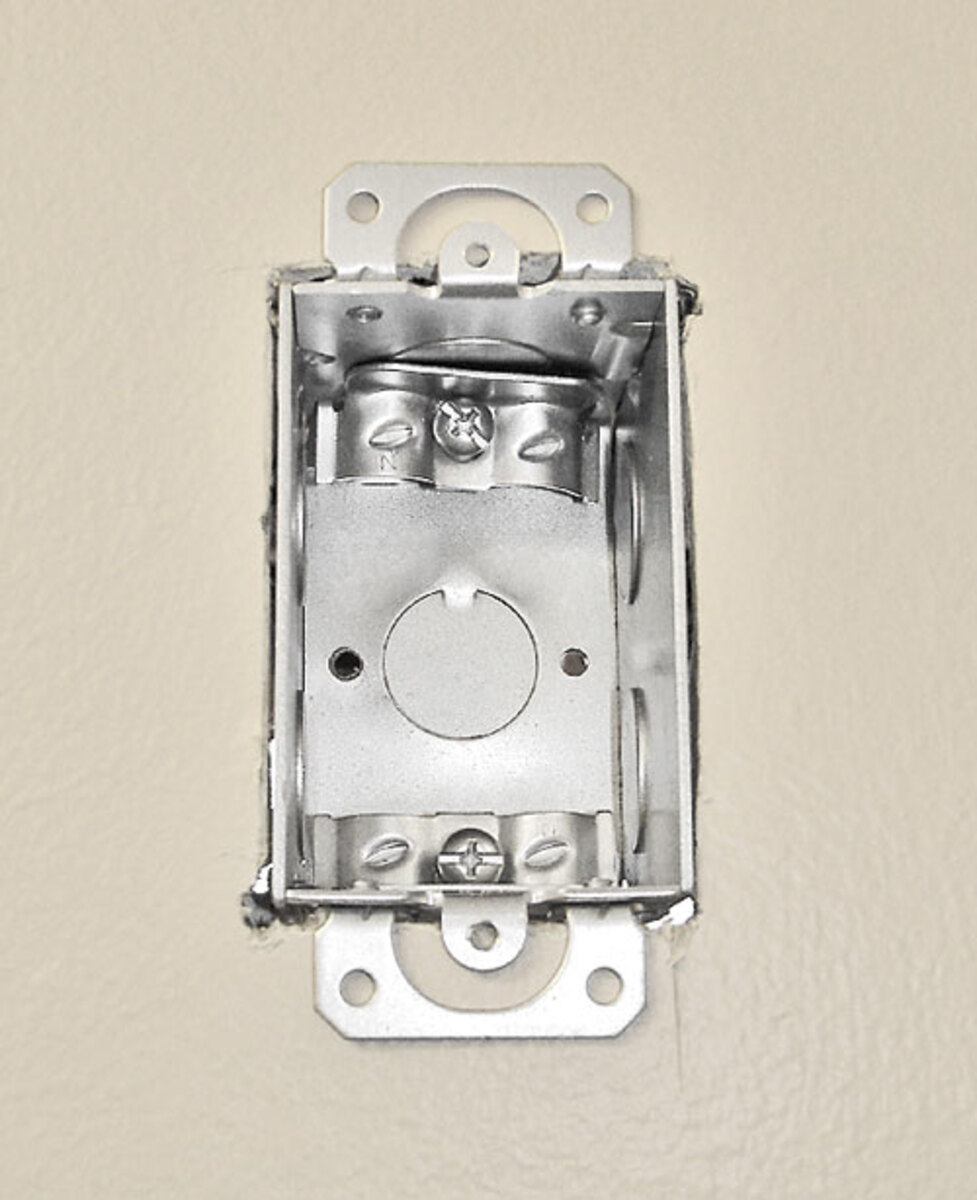

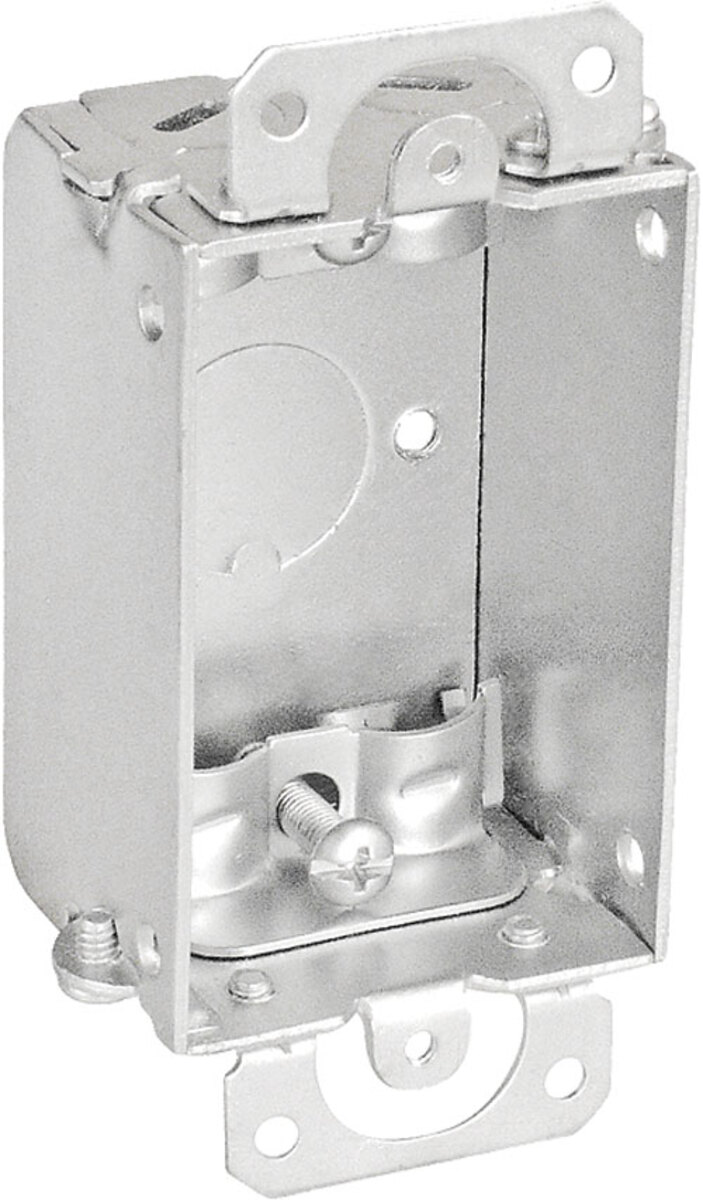

3" X 2" Switch Box, 1-1/2" Deep - Gangable, W/ Romex Clamps

Southwire #: G500-R Model #: G500-R

3" X 2" SWBX 1-1/2" DP NM CLMP & ADJ PLSTR EAR-50PK

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Gangable for multiple switches or device installations
  • Plaster ears allow easy cut in when outlets or switches need to be added to existing wall
  • UL, RoHS Compliant

Specifications

Stock # G500-R G500-R
Model # G500-R G500-R
UPC # 785592987556 785592987556
Product Height 1.5 3.81 inch cm
Product Width 2.0 5.08 inch cm
Product Weight 0.56 0.25 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 7.5 (122.9) 7.5 (122.9)
Standard Package 25 25
Bottom Knockouts (2) 1/2", (2) 3/4" (2) 1/2", (2) 3/4"
Side Knockouts (4) Pryouts (4) Pryouts
Color Silver Silver
