Commercial, Industrial, Residential Fittings

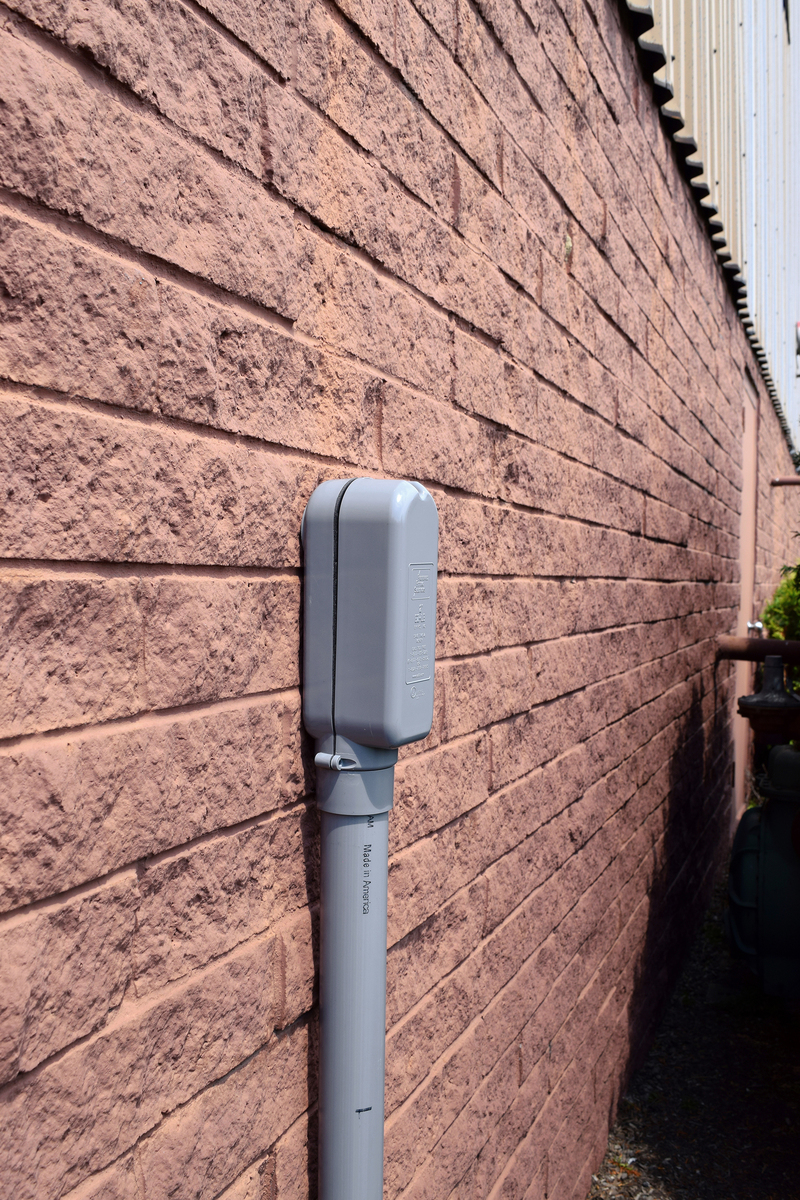

2" EZLB Service Entrance Conduit Body

Southwire #: EZLB200 Model #: EZLB200

Write a Review

EZLB200 2" EZLB SVC ENTR LB W/ NEO GSKT

Where to Buy

Download Category Specifications

PDF Excel Table

Features & Benefits

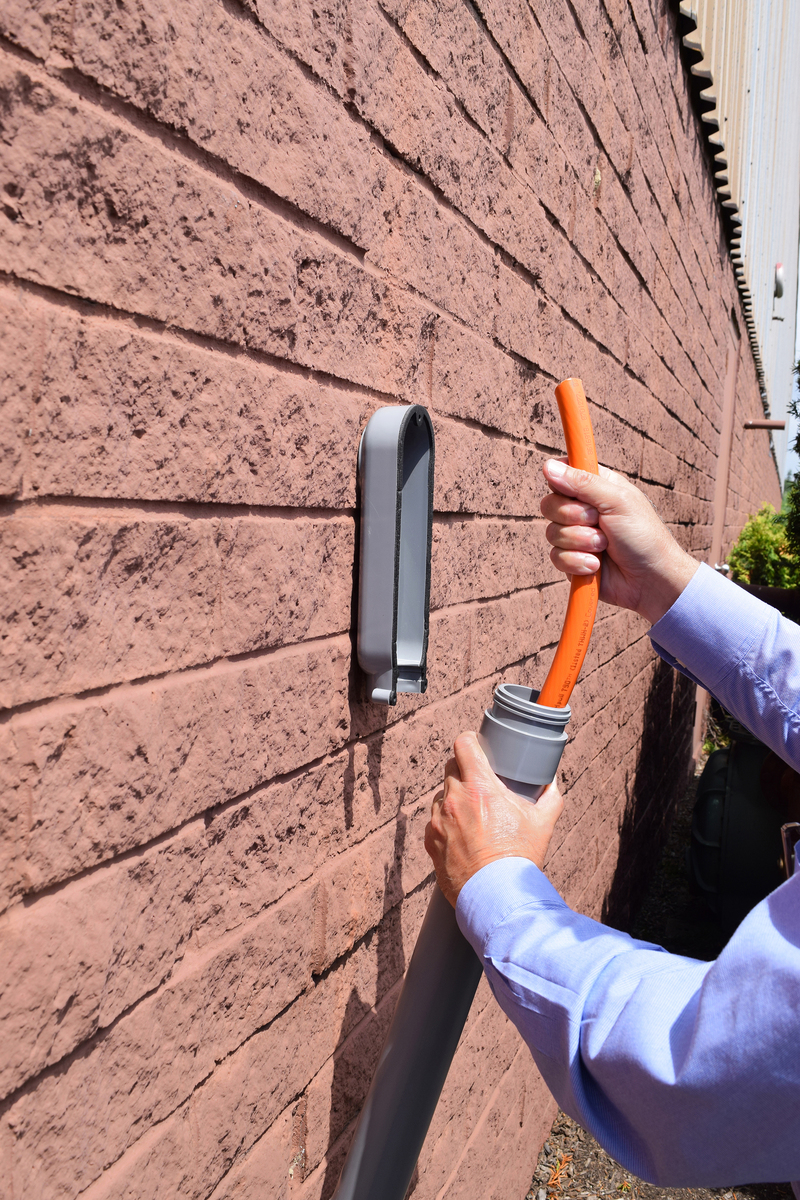

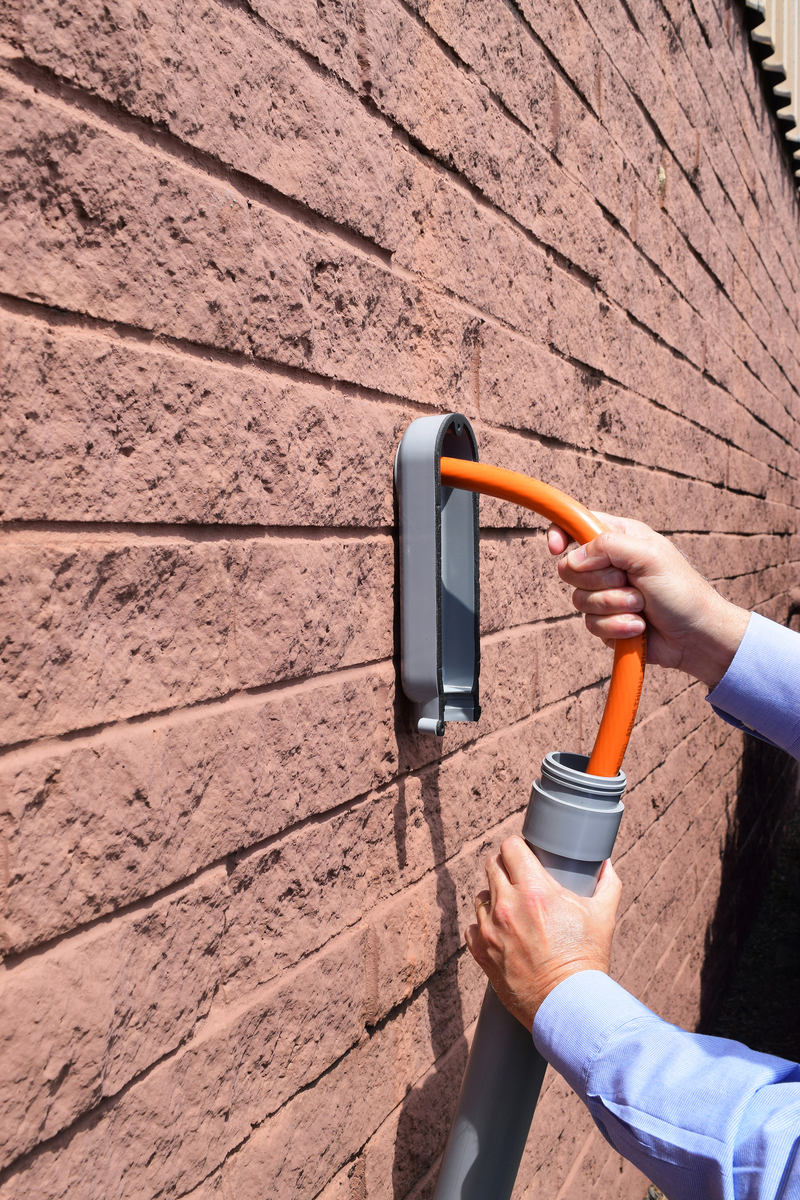

Patented 3 piece design allows additional wire volume to maneuver wire into place
Split body design eliminates pinch points
Design allows easy installation and eliminates wire damage
Includes 2" collar to connect to PVC conduit
includes gasket for wet locations
Molded PVC
cULus Listed
PVC

Specifications

Model #	EZLB200 EZLB200
UPC #	784297023071 784297023071
Product Height	4.75 12.07	inch cm
Product Width	3.0 7.62	inch cm
Product Weight	1.55 0.70	lbs kg
Material	Non Metallic, Plastic Non Metallic, Plastic
California Prop 65	Yes Yes

Resources

REC Line Card

EZLB Conduit Body cutsheet

Rated 4 out of 5 by DA in NC from Great design, makes for easy install This conduit 90degree body is an awesome design. Should have been designed this way from the start. The only weak point is the screw attachment points. Working with stiff large gauge wires it's not easy to close this cover and have the screws snug up the fit. The bottom two screws tend to strip if you are not careful and the one single screw at the top is just barely enough to pull the top portion in tight. I would suggest adding two additional screws on each side just above center point and making the bottom screws more robust. Otherwise this LB is easy to work with.

Date published: 2023-11-21

Rated 3 out of 5 by electric PEC from not usable on 200 amp service I bought this l b and found it very easy to use. The only problem was that I saw the cover, and it only allows a maximum of three 2/0 conductors. A two hundred a m service now requires a disconnect outside, so you would need a minimum of three 2/0 copper and 1 #4 copper. if you want to use aluminum your out of luck. It would be a great product if you can make it larger

Date published: 2025-10-16
