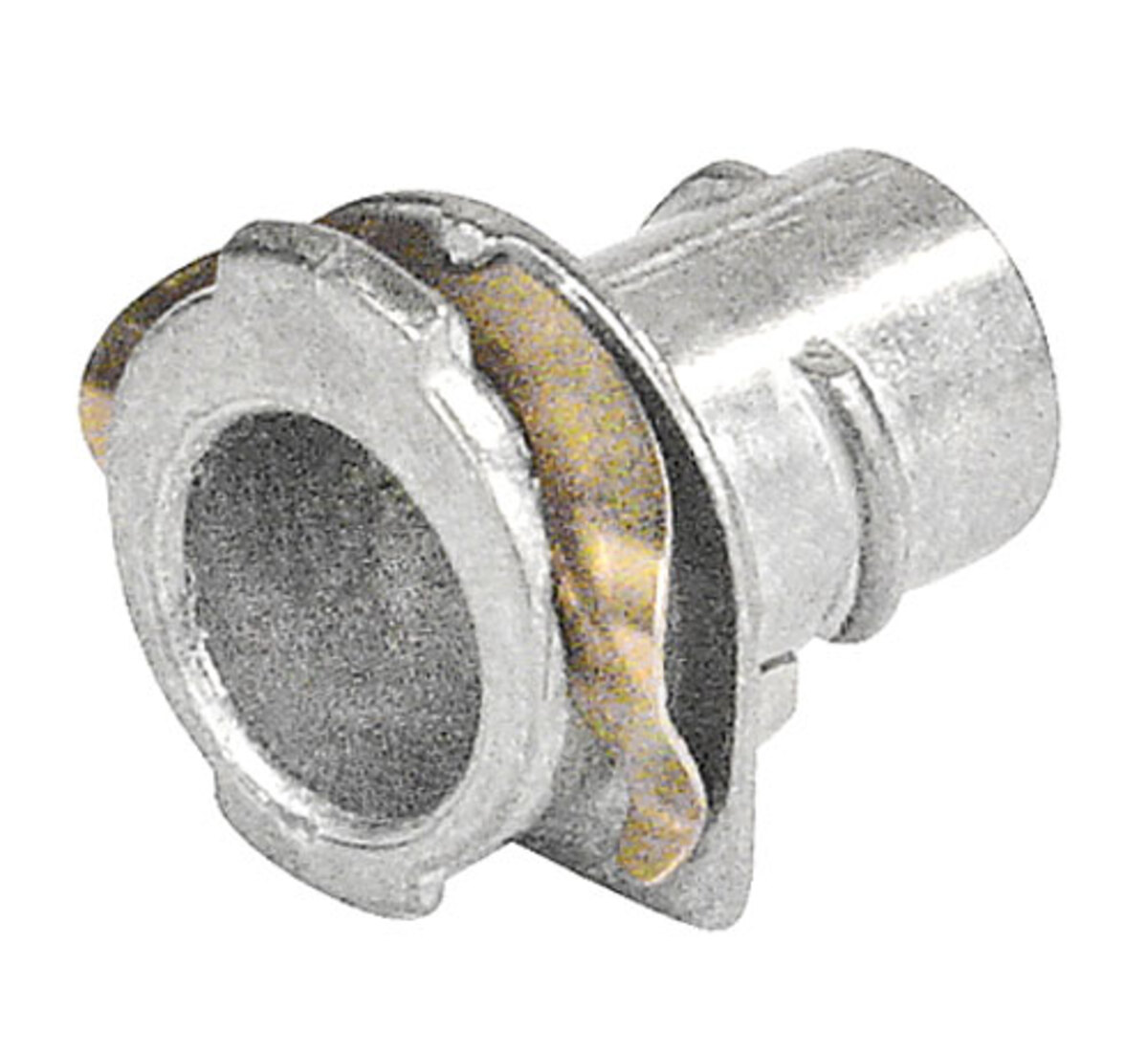

1/2" Flexible Metal Conduit Screw In Connector - Zinc Die Cast

Southwire #: SNLK-50 Model #: SNLK-50

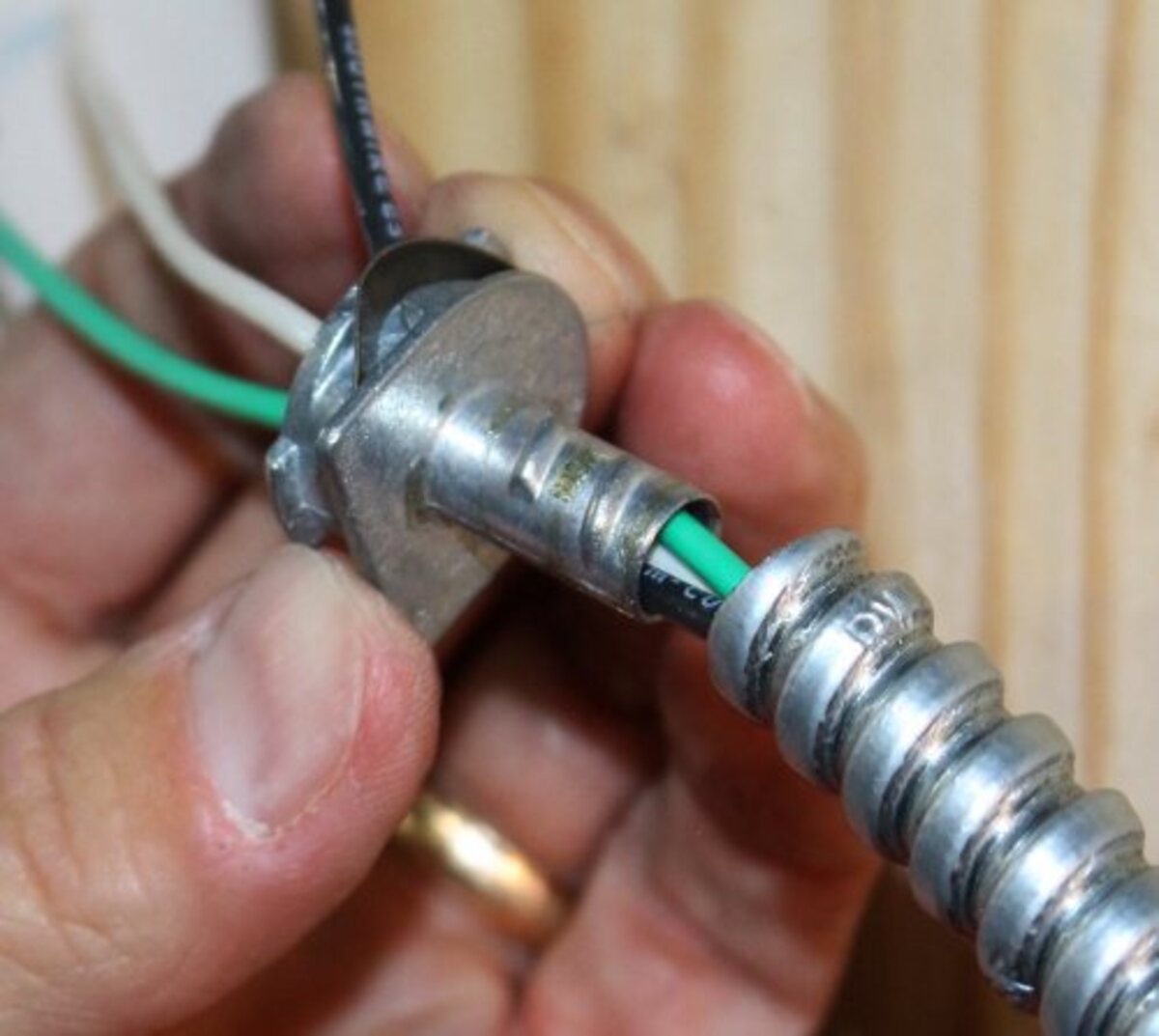

Snap in, quick connectors are used to connect flexible metal conduits to boxes, enclosures, lighting fixtures and other appliances. Fittings may be installed without removing box covers or light-fixture canopies

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Fittings screw in to the internal threads of flexible metal conduits
  • Unique patented design has built-in locking ridges and spring steel pressure clips that eliminate the need to use standard locknuts on the inside of boxes to secure conduit fittings
  • Snap into 1/2" knockout
  • Smooth inner throat surface
  • Zinc die cast, steel
  • UL Listed
  • For Flex Conduit: 1/2"
  • UL, CUL

Specifications

measurement
imperial metric
Stock # SNLK-50 SNLK-50
Model # SNLK-50 SNLK-50
UPC # 785592995711 785592995711
Product Height 0.17 0.43 inch cm
Product Width 0.17 0.43 inch cm
Product Weight 0.038 0.02 lbs kg
Material Zinc Die Cast Zinc Die Cast
California Prop 65 Yes Yes

Resources

There are no downloadable resources for this product.
