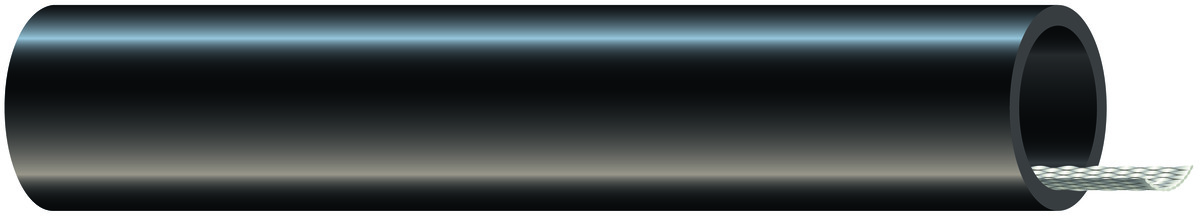

Schedule 80 Empty Duct with Pull Rope
Commonly installed from transformer to transformer or as underground cables exiting substations.
Download Category Specifications
Excel Table
Application
Specifications
Select a set of products below for more information:
| Size | Wall Type | Nom. OD (mils) (mm) | Minimum Wall Thickness | Nominal Inside Diamater (mils) (mm) | Min. Bend Radius (in) (cm) | Maximum Pulling Tension | Nominal Total Weight (lbs/1000') (kgs/km) | Tape Type | Color | Stripe Color | |
| 632184 |
1
1
|
SCH80
SCH80
|
1315
33.40
|
1.66
1.66
|
1
0.04
|
18
45.72
|
1260
1260
|
286
426
|
1250
1250
|
BLACK
BLACK
|
RED
RED
|
| 632185 |
1.25
1.25
|
SCH80
SCH80
|
1660
42.16
|
1.66
1.66
|
1
0.04
|
18
45.72
|
1260
1260
|
393
585
|
1250
1250
|
BLACK
BLACK
|
RED
RED
|
| 631923 |
2
2
|
SCH80
SCH80
|
2375
60.33
|
1.66
1.66
|
1
0.04
|
18
45.72
|
1260
1260
|
655
974
|
1250
1250
|
BLACK
BLACK
|
NONE
NONE
|
| 663111 |
2
2
|
SCH80
SCH80
|
2375
60.33
|
2.375
2.375
|
1
0.05
|
26
66.04
|
3145
3145
|
655
974
|
1250
1250
|
ORANGE
ORANGE
|
NONE
NONE
|
| 631966 |
3
3
|
SCH80
SCH80
|
3500
88.90
|
1.66
1.66
|
1
0.04
|
18
45.72
|
1260
1260
|
1330
1979
|
1250
1250
|
BLACK
BLACK
|
NONE
NONE
|
| 632780 |
4
4
|
SCH80
SCH80
|
4500
114.30
|
1.66
1.66
|
1
0.04
|
18
45.72
|
1260
1260
|
1940
2887
|
1250
1250
|
BLACK
BLACK
|
NONE
NONE
|
Standards & References
Construction
Resources
There are no downloadable resources for this product.
