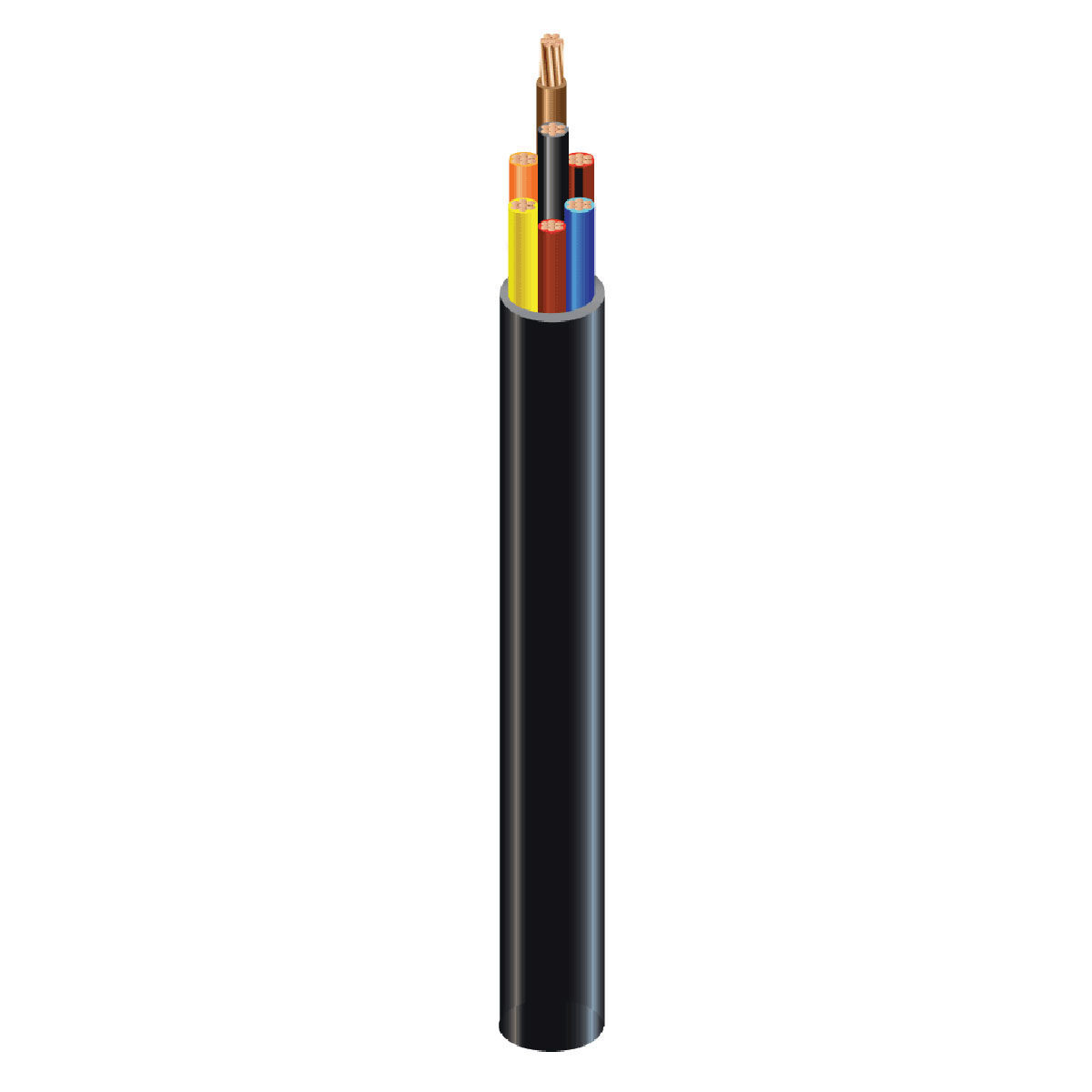

Southwire’s 600 Volt Type TC-ER control cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 75°C in wet locations and 90°C in dry locations, 130°C for emergency overload, and 150°C for short circuit conditions. For uses in Class I, II, and III, Division 2 hazardous locations per NEC Article 501 and 502. Exposed runs (TC-ER) per NEC 336.10. Silicone Free. VW-1 Rated.
|Stock #||40855999 40855999|
|No. of Conductors||4 4|
|Size (AWG or kcmil) (mm2)||12 AWG 12 AWG|
|No. of Strands||7 7|
|Insulation Thickness (mils) (mm)||15 0.38||mils mm|
|Nom. OD (mils) (mm)||401 10.21||mils mm|
|Nominal Total Weight (lbs/1000') (kgs/km)||150 223||lbs/1000' kgs/km|
