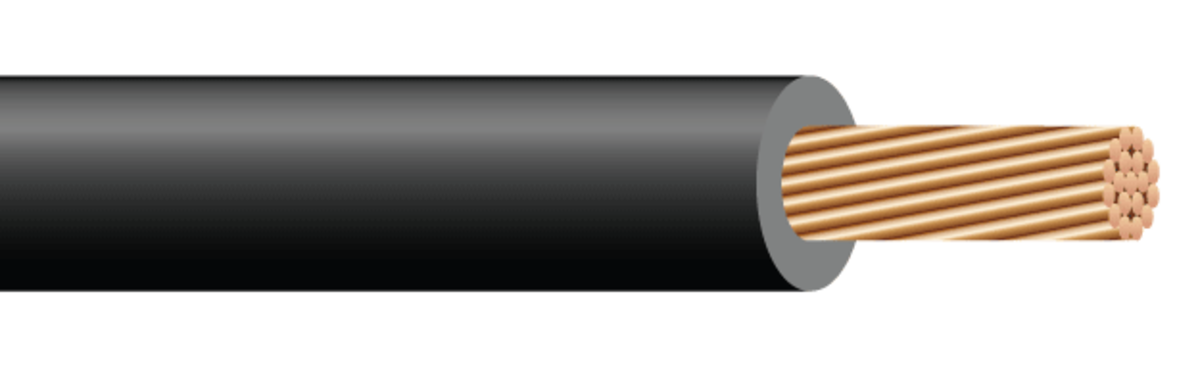

Southwire’s 600 Volt power cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions. For uses in Class I, II, and III, Division 2 hazardous locations per NEC Article 501 and 502.
|Stock #||89063399 89063399|
|No. of Conductors||1 1|
|Size (AWG or kcmil)||750 KCMIL 750 KCMIL|
|No. of Strands||61 61|
|Insulation Thickness (mils) (mm)||110 2.79||mils mm|
|Nom. OD (mils) (mm)||1188 30.18||mils mm|
|Nominal Total Weight (lbs/1000') (kgs/km)||2535 3772||lbs/1000' kgs/km|
