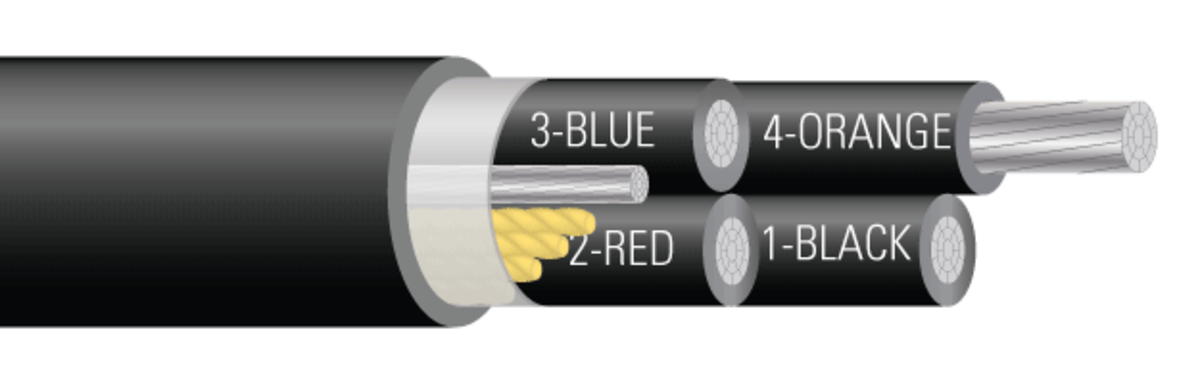

TCP 4/0-3 Al 600V PN 1x2Ag PVC 99

SKU: 67325399
Download Category Specifications:
PDF Excel Table
Register or Save Product
Add to Bill of Materials
Select Product Specifications
Construction
Outer Jacket / Armor Color
Packaging

Application

Specifications

measurement
imperial metric
Stock # 67325399 67325399
No. of Conductors 3 3
Size (AWG or kcmil) 4/0 AWG 4/0 AWG
No. of Strands 19 19
Insulation Thickness (mils) (mm) 50 1.27 mils mm
Nom. OD (mils) (mm) 1432 36.38 mils mm
Nominal Total Weight (lbs/1000') (kgs/km) 1137 1692 lbs/1000' kgs/km

Standards & References

Construction

Resources

There are no downloadable resources for this product.
