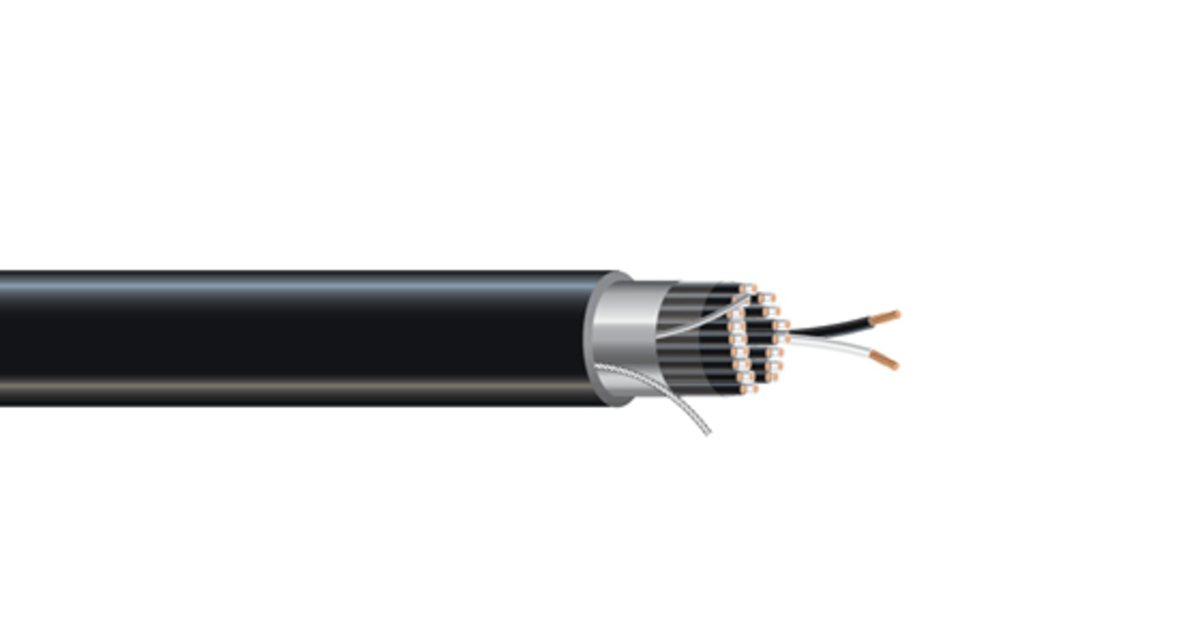

Southwire’s Instrumentation Cables Type PLTC per UL 13 and Type ITC per UL 2250 are suitable for installations as outlined in NEC Article 336 for process control and instrumentation, control circuits for operation and interconnection of protective and signaling devices and for general use in manufacturing, industrial and commercial distribution systems. Cables are construct- ed with 7-strand copper conductors insulated with nylon covered PVC. The paired conductors are colored black, white, and alpha-numeric printed. The overall assembly is covered with an aluminum polyester foil with 100% coverage and a tinned drain wire. The cable is suited for use in cable trays, raceways, conduit, aerial (when supported with a messenger) and direct burial. The cable is rated for -30°C to 105°C and rated for class I Div II hazardous locations, sun and oil resistant. The jacket is black PVC with a nylon ripcord for easy removal.
|Stock #||59681799 59681799|
|No. of Conductors||17 17|
|Size (AWG or kcmil) (mm2)||16 AWG 16 AWG|
|No. of Strands||7 7|
|Nom. OD (mils) (mm)||662 16.83||mils mm|
|Nominal Total Weight (lbs/1000') (kgs/km)||261 388||lbs/1000' kgs/km|
