MVU 500 Cu 2.4kV EN140 SLN-TS 99

Southwire #: 61117899

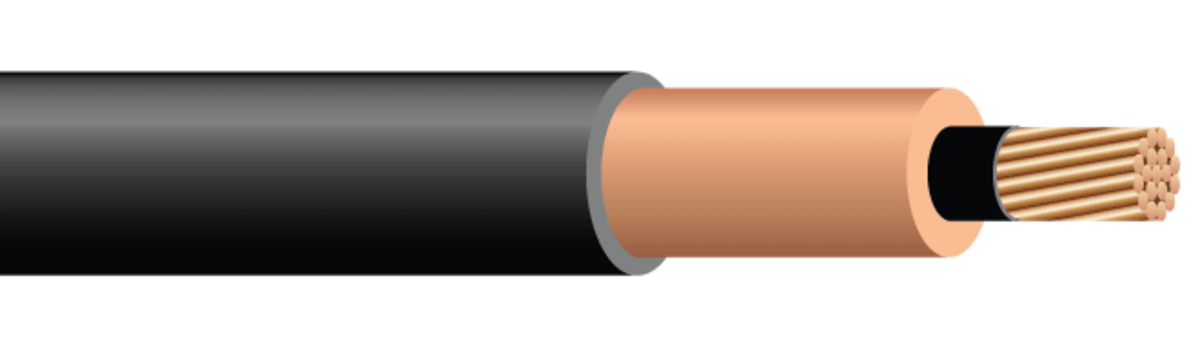

Type MV-90 Single Conductor Copper, Ethylene Propylene Rubber (EPR) Thermoset SOLONON® Low Smoke Zero Halogen (XL-LSZH) Jacket. Silicone Free

Download Category Specifications
PDF Excel Table
Select Product Specifications
Construction
Outer Jacket / Armor Color
Packaging

Application

Southwire’s 2.4KV cables are suited for use in wet and dry areas, conduits, ducts, troughs, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation, 130°C for emergency overload, and 250°C for short circuit conditions. Rated at -25°C for cold bend. Rated for 1000 lbs./FT maximum sidewall pressure. Silicone Free.

Specifications

measurement
imperial metric
Stock # 61117899 61117899
No. of Conductors 1 1
Size (AWG or kcmil) 500 KCMIL 500 KCMIL
No. of Strands 37 37
Insulation Thickness (mils) (mm) 140 3.56 mils mm
Nom. OD (mils) (mm) 1332 33.83 mils mm
Nominal Total Weight (lbs/1000') (kgs/km) 2085 3102 lbs/1000' kgs/km

Standards & References

Construction

Resources

There are no downloadable resources for this product.
