Low Voltage Dimming or Luminaire Cable

300V, 75C, Plenum Rated, Low Voltage Power Limited Dimming 2/C Stranded Unshielded CL3P/FPLP/CMP Cable.

Download Category Specifications

Commercial audio, lumiaire, dimming, security and general purpose power limited circuit cable for low voltage cable applications.

Select a set of products below for more information:

	Cable Type	Cond. Size	Conductor Number	Diameter Over Conductor (in) (cm)	Color	Insulation Thickness (mils) (mm)	Diameter Over Insulation (in) (cm)	Jacket Thickness (mils) (mm)	Approx. OD (in) (cm)	Approx. Weight (lbs/1000') (kgs/km)	DC Resistance at 25C (ohms/1000') (ohms/km)	AC Resistance at 75C (ohms/1000') (ohms/km)	Allowable Ampacity Raceway 90C
More Options	CL3P/FPLP/CMP CL3P/FPLP/CMP	18 AWG 18 AWG	2 2	0.045 0.11	PE, PK PE, PK	9 0.23	0.063 0.16	15 0.38	0.152 0.39	17 25	6.669 9.92	8.035 11.96	18 18
More Options	CL3P/FPLP/CMP CL3P/FPLP/CMP	16 AWG 16 AWG	2 2	0.056 0.14	PE, PK PE, PK	9 0.23	0.075 0.19	15 0.38	0.178 0.45	24 36	4.181 6.22	5.037 7.50	18 18

Stock Code	Conductor Size	Capacitance pF/ft Nom	DC Resistance per Conductor @ 68ºF Ohms/1000ft	Impedance Ohms	Velocity of Propagation
P41614	18 18	39.4 39.4	6.92 6.92	54 54	47.5% 47.5%
P51641	16 16	43.1 43.1	4.35 4.35	50 50	47.5% 47.5%

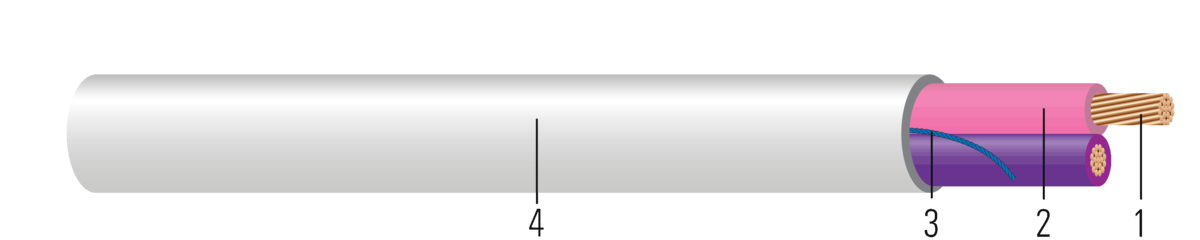

Conductor:18 or 16 AWG solid or stranded
Insulation:Two conductors twisted Low smoke polyvinyl chloride LS-PVC. Color: Purple, Pink
Rip Cord:Rip cord for ease of jacket removal.
Overall Jacket:Polyvinyl Chloride (PVC). Color: White
