18 SOL CU 2/C N/S CMP/CL3P/FPLP PVC-LS LIGHT GREEN 1000 FT
Southwire #: G40005-54A
75°C 300V PLENUM RATED
Application
Southwire's Fire Alarm Cables are manufactured in accordance to the most crucial fire saftey codes and regulations, providing solutions for even the most critical of applications. These cables are superior for fire protective signaling circuits, as well as smoke detectors, voice communications, audio, control, initiating and notification circuits.
Specifications
| No. of Conductors | 2 2 | |
| Size (AWG or kcmil) (mm2) | 18 AWG 18 AWG | |
| No. of Strands | 1 1 | |
| Nom. OD (mils) (mm) | 144 3.66 | mils mm |
| Nominal Total Weight (lbs/1000') (kgs/km) | 16 24 | lbs/1000' kgs/km |
Standards & References
UL 1424 FPLP, NEC article 760
- UL 13 CL3P, NEC article 725
- UL 444 CMP, NEC article 800
- NFPA 262 (UL 910) / CSA FT6
- CSA C22.2 CMG
- RoHS (European Directive 22/95/EC)

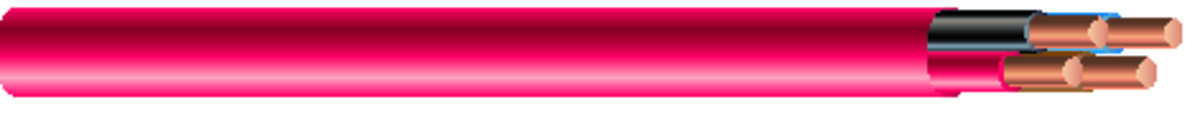

Construction
CONDUCTORS: 18 AWG SOLID BARE COPPER
- Insulation: LS-PVC COLORS: BLACK, RED
- Shield/Drain: UNSHIELDED
- Jacket: LS-PVC, 2 CONDUCTORS, TWISTED AND JACKETED
- RIPCORD: YES
- MARKER TAPE: NO
Resources
There are no downloadable resources for this product.
