12 SOL CU 2/C OAS CMP/CL3P/FPLP PVC-LS RED 1000 FT

Southwire #: G70019-1A

Download Category Specifications

PDF Excel Table

Select Product Specifications

Construction

Outer Jacket / Armor Color

RED

Conductor Color

Packaging

Application & Features

Fire protective signaling circuits. Also for smoke detectors, voice communications, audio control and initiating circuits. Article 760 of the NEC. For use in plenum spaces. Minimum Temperature 0ºC , Maximum Temperature 75ºC

Specifications

Cable Type	FPLP FPLP
Cond. Size	12 AWG 12 AWG
Conductor Number	2 2
Cond. Type	Cu Cu
Cond. Strands	Solid Solid
Diameter Over Conductor (in) (cm)	0.080 0.20	inch cm
Insulation Thickness (mils) (mm)	10 0.25	mils mm
Jacket Thickness (mils) (mm)	15 0.38	mils mm
Approx. OD (in) (cm)	0.231 0.59	inch cm
Copper Weight (lbs/1000') (kgs/km)	41 61	lbs/1000' kgs/km
Approx. Weight (lbs/1000') (kgs/km)	52 77	lbs/1000' kgs/km
DC Resistance at 25C (ohms/1000') (ohms/km)	1.662 2.47	ohms/1000' ohms/km
AC Resistance at 75C (ohms/1000') (ohms/km)	2.002 2.98	ohms/1000' ohms/km
Inductive Reactance (ohms/1000') (ohms/km)	0.054 0.08	ohms/1000' ohms/km
Min. Bend Radius (in) (cm)	1.4 3.56	inch cm
Allowable Ampacity Raceway 75C	25 25
Allowable Ampacity Raceway 90C	30 30

Standards & References

UL 1424 Cables for Power-Limited Fire-Alarm Circuits
UL 1424 Listed FPLP
NFPA 70 NFPA 101, NFPA 130, and NFPA 502
UL 13 Power-Limited Circuit Cables
UL 444 Communications Cables (90ºC, 300V)
RoHS-2 (European Directive 2011/65/EU)

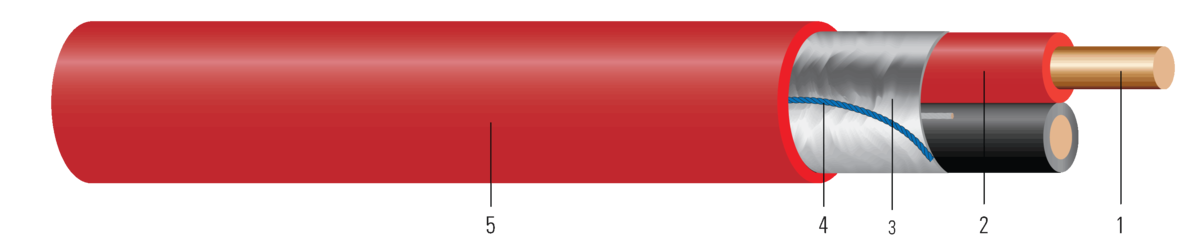

Construction

Conductor:Solid bare copper per ASTM B3
Insulation:Low Smoke Polyvinyl Chloride LS-PVC
Shield:Aluminum foil shielded with 24 AWG drain wire
Rip Cord:Rip cord for ease of jacket removal
Jacket: Low Smoke Polyvinyl Chloride LS-PVC, Color: RED
