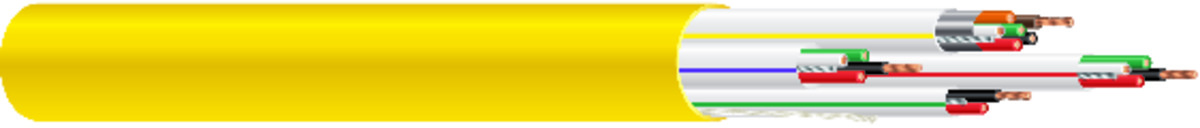

22/2+22/4+22/3PR+18/4SH CMP/CL3P/FPLP YW 1000R

Southwire #: H91601-1A

75°C 300V CMP/CL3P RATED

Download Category Specifications
PDF Excel Table
Select Product Specifications
Construction
Outer Jacket / Armor Color
Conductor Color
Packaging

Application

Southwire's Tappan Access Control Cables are factory assembled bundles for multi-function access control doors. Cables for card reader, lock, door contact, and request to exit (REX) devices, are provided in one cable. Individual component cables are color coded and printed with their design function, for fastest field indentification and termination.

Specifications

measurement
imperial metric
Stock # H91601-1A H91601-1A
No. of Conductors 4 4
Size (AWG or kcmil) 22 AWG 22 AWG
No. of Strands 7 7
Nom. OD (mils) (mm) 412 10.46 mils mm
Nominal Total Weight (lbs/1000') (kgs/km) 102 152 lbs/1000' kgs/km

Standards & References

UL 444 AND UL 13

  • NEC ARTICLES 725 AND 800
  • CMP/CL3P
  • NFPA 262

Construction

FOUR COMPONENT CABLES ARE INDIVIDUALLY JACKETED, IDENTIFIED, ASSEMBLED AND JACKETED OVERALL

  • 22/3PR STR BC OAS- CARD READER
  • 18/4C STR BC OAS- LOCK POWER
  • 22/4C STR BC OAS- REX
  • 22/2C BC OAS- DOOR CONTACT
