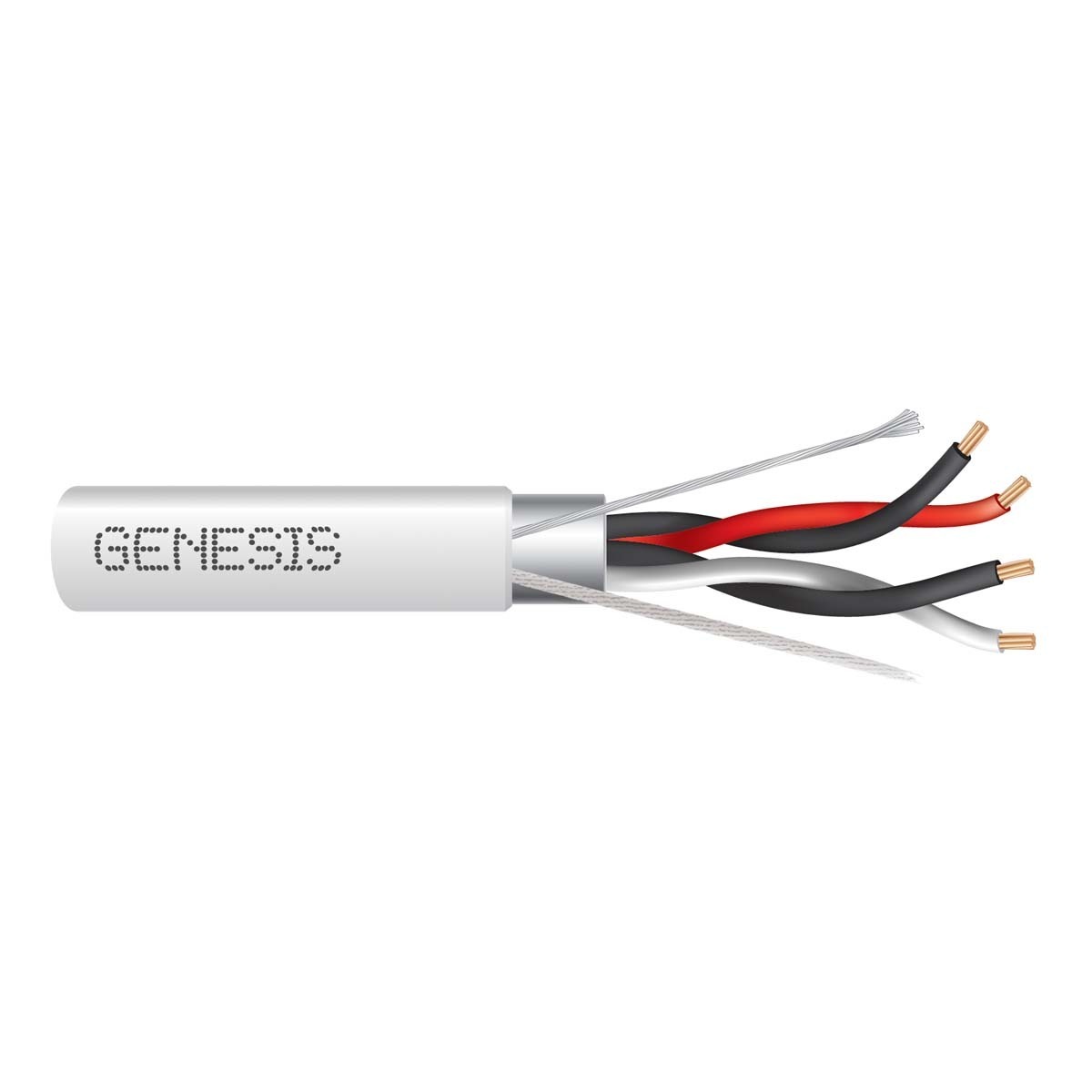

Multipair Shielded Cable, Plenum

Genesis Unshielded Multipair Cables offer a versatile solution for various signal and limited-power transmission applications.

Download Category Specifications
Excel Table


Genesis® Plenum Rated Multipair Shielded Cable is suitable for installation as follows:

  • In fabricated ducts as described in NEC 300.22(B).
  • In other spaces used for environmental air as described in NEC 300.22(C).
  • In risers.
  • Within buildings in other than air-handling spaces and risers.


Select a set of products below for more information:
Size (AWG or kcmil) (mm2) Number of Pairs Stranding No. of Strands Shielding Nom. OD (mils) (mm) Nominal Total Weight (lbs/1000') (kgs/km)
22 AWG 22 AWG
2 2
Stranded Stranded
Shielded Shielded
205 5.21
20 30

Standards & References

Genesis® Plenum Rated Multipair Shielded Cable meets or exceeds the following:

  • NFPA 262 - Plenum Rated
  • CSA C22.2 No. 2556 - FT6 Rated
  • UL 444 - Communication Cables, Type CMP
  • UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLP
  • UL 13 - Power-Limited Circuit Cables, Type CL3P
  • REACH/RoHS Compliant


Genesis® Plenum Rated Multipair Shielded Cable features the following quality and convenience characteristics:

  • Bare Copper conductors for excellent conductivity and low voltage drop.
  • Low-Smoke PVC insulation.
  • Foil shield over all conductors.
  • Plenum PVC jacket.
  • Durable rip cord for efficient jacket stripping and removal.
  • Countdown® Length Markings for easy tracking of usage and remaining cable.
  • Rated for 300 Volts
  • Rated for -20 °C to 75 °C.
