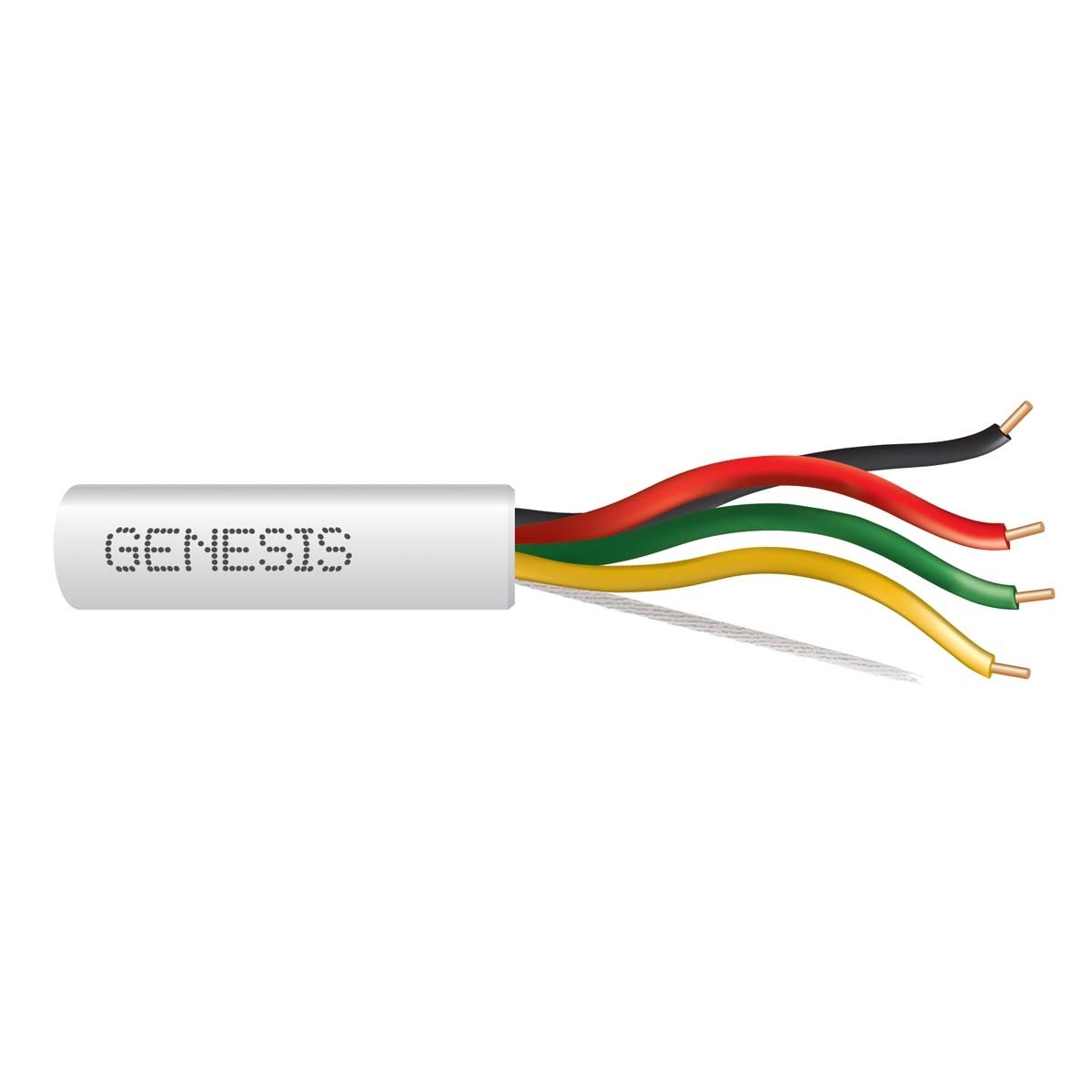

Fire Alarm Unshielded Cable, Riser

16 SOL CU 4/C N/S CMR/CL3R/FPLR PVC WHITE GEN 1000 FT

Southwire #: 43121001

Contact Us

Download Category Specifications

PDF Excel Table

Select Product Specifications

Construction

Outer Jacket / Armor Color

RED

WHITE

Packaging

16 SOL CU 4/C N/S CMR/CL3R/FPLR PVC WHITE GEN 1000 FT

16 SOL CU 4/C N/S CMR/CL3R/FPLR PVC WHITE GEN 1000 FT

Application & Features

Genesis® Riser Rated Unshielded Fire Alarm Cable is suitable for installation as follows:

Installed in a metal raceway that complies with 300.22(B).
Supported by solid bottom metal cable trays with solid metal covers.
In risers.
Within buildings in other than air-handling spaces and risers.
Exposed to sunlight.

Specifications

Size (AWG or kcmil) (mm2)	16 AWG 16 AWG
No. of Conductors	4 4
Stranding	Solid Solid
Shielding	Unshielded Unshielded
Nominal Total Weight (lbs/1000') (kgs/km)	40 60	lbs/1000' kgs/km

Standards & References

Genesis® Riser Rated Unshielded Fire Alarm Cable meets or exceeds the following:

UL 1666 - Riser Rated
CSA C22.2 No. 2556 - FT4 Rated
UL 1424 - Cables for Power-Limited Fire-Alarm Circuits, Type FPLR
UL 13 - Power-Limited Circuit Cables, Type CL3R
Sunlight Resistant Rated
REACH/RoHS Compliant

Construction

Genesis® Riser Rated Unshielded Fire Alarm Cable features the following quality and convenience characteristics:

Bare Copper conductors for excellent conductivity and low voltage drop.
Polypropylene insulation.
PVC jacket.
Durable rip cord for efficient jacket stripping and removal.
Countdown® Length Markings for easy tracking of usage and remaining cable.
Rated for 300 Volts
Rated for -20 °C to 75 °C.

Resources

Genesis Fire and Life Safety Brochure
