Southwire® SIMpull XHHW-2® copper conductors are primarily used in conduit, Cable Tray or other recognized raceways for services, feeders, and branch circuit wiring, as specified in the National Electrical Code. SIMpull XHHW-2® copper conductors may be used in wet or dry locations at temperatures not to exceed 90° C. Voltage rating for XHHW-2 conductors is 1000 volts. Suitable for use in Health Care Facilities per Section 517.160 of the National Electrical Code where a dielectric constant of less than 3.5 maybe specified. This cable is designed to be installed without the application of pulling lubricant.
|Stock #||55385606 55385606|
|Size (AWG or kcmil) AWG or kcmil mm2||1 AWG 1 AWG|
|No. of Conductors||1 1|
|No. of Strands||19 19|
|Nom. OD (mils) (mm)||441 11.20||mils mm|
|Insulation Thickness (mils) (mm)||57 1.45||mils mm|
|Nominal Total Weight (lbs/1000') (kgs/km)||292 435||lbs/1000' kgs/km|
|Allowable Ampacity at 60C||110 110|
|Allowable Ampacity at 75C||130 130|
|Allowable Ampacity at 90C||145 145|
|UPC #||032886079825 032886079825|
Southwire® SIMpull XHHW-2® copper conductors comply with the following:

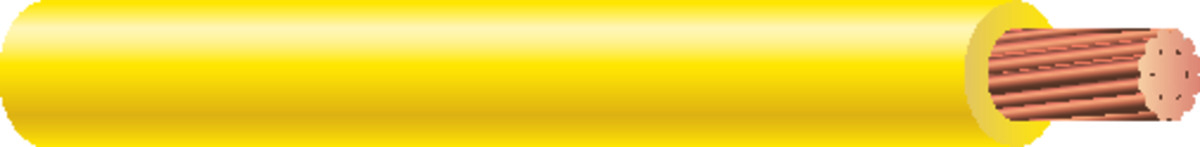

Southwire® SIMpull XHHW-2® copper conductors are annealed (soft) copper. Insulation is an abrasion, moisture, and heat resistant thermoset cross-linked polyethylene (XLPE). Conductor sizes 8 AWG and larger are marked sunlight resistant. Colors are available and may be subject to economic order quantity.
