RWU90 SIMpull® Copper
SINGLE COPPER CONDUCTORS, XLPE INSULATION, 1000 VOLTS / -40ºC MIN, 90ºC MAX.
Application
Southwire’s SIMpull ® RWU90 is designed for direct earth burial (with protection as required by the inspecting authority). For service entrance above or below ground.The minimum recommended installation temperature is minus 40°C (with suitable handling procedures). Maximum conductor temperature is 90°C. SIMpull ® RWU90 conductors feature SIM Technology jackets which reduces the coefficient of friction" allowing cables to be installed without external lubricants" resulting in reduced labour and materials costs.
Specifications
| Conductor | Allowable Ampacities | ||||||||
| Size (AWG or kcmil) (mm2) | No. of Strands | Insulation Thickness (mils) (mm) | Nom. OD (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | Allowable Ampacity at 90C Direct Buried | Allowable Ampacity at 60C | Allowable Ampacity at 75C | Allowable Ampacity at 90C | |
| 556978 |
14 AWG
14 AWG
|
7
7
|
60
1.52
|
196
5.00
|
25
37
|
25*
25*
|
20*
20*
|
20*
20*
|
25*
25*
|
| 556600 |
12 AWG
12 AWG
|
7
7
|
60
1.52
|
217
5.51
|
34
51
|
30*
30*
|
25*
25*
|
25*
25*
|
30*
30*
|
| 556598 |
10 AWG
10 AWG
|
7
7
|
60
1.52
|
239
6.07
|
48
72
|
40*
40*
|
30*
30*
|
35*
35*
|
40*
40*
|
| 556988 |
8 AWG
8 AWG
|
7
7
|
70
1.78
|
312
7.92
|
79
118
|
55
55
|
40
40
|
50
50
|
55
55
|
| 556994 |
6 AWG
6 AWG
|
7
7
|
70
1.78
|
348
8.84
|
114
170
|
75
75
|
55††
55††
|
65
65
|
75
75
|
| 556999 |
4 AWG
4 AWG
|
7
7
|
70
1.78
|
395
10.03
|
168
251
|
95
95
|
70
70
|
85
85
|
95
95
|
| 557004 |
3 AWG
3 AWG
|
7
7
|
70
1.78
|
422
10.72
|
206
306
|
115
115
|
85
85
|
100
100
|
115
115
|
| 556596 |
2 AWG
2 AWG
|
7
7
|
70
1.78
|
453
11.51
|
253
376
|
130
130
|
95
95
|
115
115
|
130
130
|
| 556378 |
1 AWG
1 AWG
|
19
19
|
95
2.41
|
522
13.26
|
314
467
|
145
145
|
110
110
|
130
130
|
145
145
|
| 590651 |
1/0 AWG
1/0 AWG
|
19
19
|
95
2.41
|
562
14.27
|
394
587
|
243**
243**
|
125
125
|
150
150
|
170
170
|
| 578090 |
2/0 AWG
2/0 AWG
|
19
19
|
95
2.41
|
596
15.14
|
475
707
|
274**
274**
|
145
145
|
175
175
|
195††
195††
|
| 556382 |
3/0 AWG
3/0 AWG
|
19
19
|
95
2.41
|
654
16.61
|
592
881
|
311**
311**
|
165
165
|
200
200
|
225
225
|
| 556383 |
4/0 AWG
4/0 AWG
|
19
19
|
95
2.41
|
700
17.78
|
740
1101
|
360**
360**
|
195
195
|
230
230
|
260
260
|
| 590655 |
250 KCMIL
250 KCMIL
|
37
37
|
110
2.79
|
774
19.66
|
876
1303
|
383**
383**
|
215
215
|
255
255
|
290
290
|
| 575227 |
350 KCMIL
350 KCMIL
|
37
37
|
|
881
22.38
|
1191
1773
|
470**
470**
|
260
260
|
310
310
|
350
350
|
| 577680 |
500 KCMIL
500 KCMIL
|
37
37
|
|
1009
25.63
|
1674
2490
|
548**
548**
|
320
320
|
380
380
|
430
430
|
| 577681 |
600 KCMIL
600 KCMIL
|
61
61
|
125
3.18
|
1130
28.70
|
2020
3006
|
600**
600**
|
350
350
|
420
420
|
475
475
|
| 577682 |
750 KCMIL
750 KCMIL
|
61
61
|
125
3.18
|
1218
30.94
|
2489
3704
|
667**
667**
|
400
400
|
475
475
|
535
535
|
All Ampacities derived from the 2012 Canadian Electrical Code
* See Rule 14-104 in the 2012 Canadian Electrical Code
** Derived from Table D12A in Appendix D of the CE Code as per Triplex cable formation as shown in Diagram B4-3 in Appendix B - for Non-Continuous loads. Based on an ambient temperature of 20°C
† Derived from Table 2 of the CE Code for Cable in Conduit. Not more than 3 copper conductors in a raceway. Based on an ambient temperature of 30°C
†† For 3-wire 120V/240V and 120V/208V service conductors in single dwellings, see notes under CEC Table 2. Allowable ampacity shall not be greater than 60 amps for No. 6 AWG nor greater than 200 amps for No. 2/0 AWG
‡ Contact sales representative for more information.
Standards & References
Southwire’s SIMpull ® RWU90 cables meet or exceed the following requirements: • CSA Standard C22.2 No. 38 File Listing: LL90458 • Optional: CSA FT1 fl ame test rating • Optional: CSA FT4 flame test rating and TC rating for 1/0 AWG and larger (Minimum order quantities may apply for optional features.)
Construction

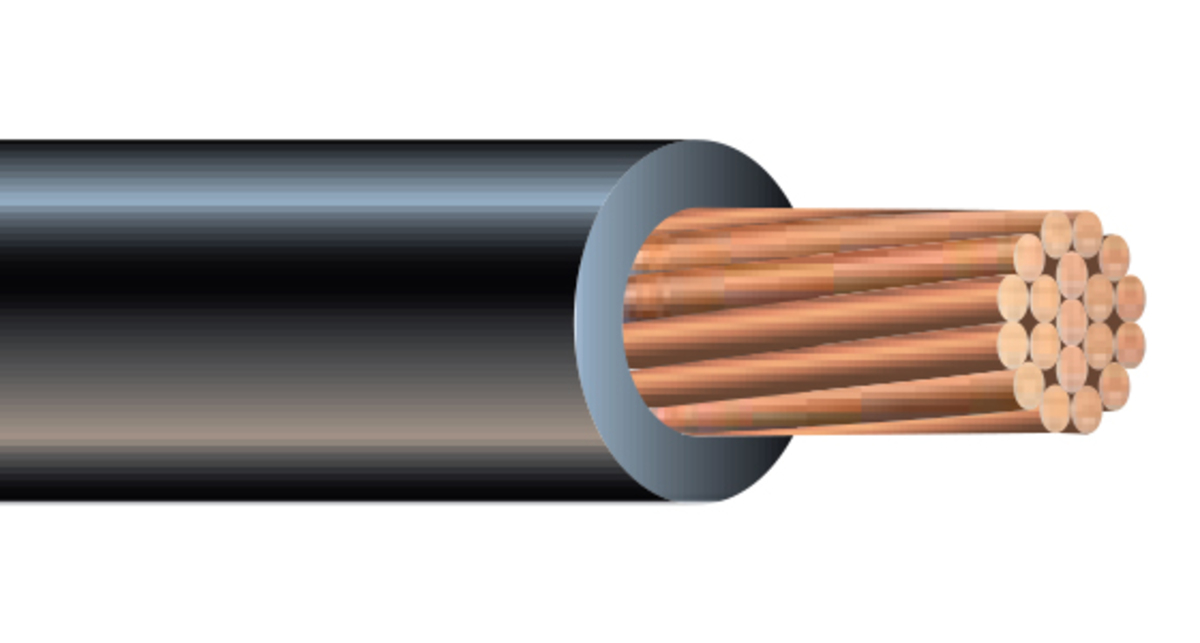

Single copper conductor with extra thickness on the moisture resistant" low temperature" cross linked polyethylene insulation.
- Rated at 1000 volts.
- SIMpull ® conductors are SR rated for sunlight resistance in all standard colours.
- Standard colours are available in black" white" red" blue and green.
