SPEC: 26312

HVTECK CU 1/C 220TRXLPE TS PVC AIA PVC 15kV 133% CSA SPEC26312

Single Conductor, 220 Mils Tree Retardant Cross Linked Polyethylene, 133% Insulation Level, Tape Shield, Polyvinyl Chloride (PVC) Inner Jacket, Aluminum Interlocked Armour (AIA), Polyvinyl Chloride (PVC) Jacket

Download Category Specifications

Application & Features

Southwire's 15kV HVTECK is a CSA armoured cable for industrial and commercial medium voltage applications. Rated FT4, -40°C, Hazardous Locations (HL). These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions. Rated for 1000 lbs /FT maximum sidewall pressure. These cables feature sunlight and moisture resistance, exceptional corona resistance, resistance to most chemical soils and acids and are flame retardant.

Specifications

Select a set of products below for more information:

	Cond. Size	Cond. Strands	Diameter Over Conductor (in) (cm)	Diameter Over Insulation (in) (cm)	Insulation Thickness (mils) (mm)	Diameter Over Shield (in) (cm)	Inner Jacket Thickness (mils) (mm)	Diameter Over Armor (in) (cm)	Jacket Thickness (mils) (mm)	Approx. OD (in) (cm)	Approx. Weight (lbs/1000') (kgs/km)	Max Pull Tension (lbs) (kg)	Min. Bend Radius (in) (cm)
More Options	2/0 AWG 2/0 AWG	19 19	0.405 1.03	0.884 2.25	220 5.59	0.944 2.40	80 2.03	1.468 3.73	50 1.27	1.568 3.98	1322 1967	1064 482.62	18.8 47.75
More Options	4/0 AWG 4/0 AWG	19 19	0.512 1.30	0.990 2.51	220 5.59	1.050 2.67	80 2.03	1.574 4.00	60 1.52	1.694 4.30	1687 2511	1692 767.48	20.3 51.56
More Options	500 KCMIL 500 KCMIL	37 37	0.789 2.00	1.275 3.24	220 5.59	1.335 3.39	80 2.03	1.859 4.72	60 1.52	1.979 5.03	2849 4240	4000 1814.37	23.7 60.20
More Options	750 KCMIL 750 KCMIL	61 61	0.968 2.46	1.464 3.72	220 5.59	1.524 3.87	110 2.79	2.108 5.35	60 1.52	2.228 5.66	3920 5834	6000 2721.55	26.7 67.82
More Options	1000 KCMIL 1000 KCMIL	61 61	1.117 2.84	1.613 4.10	220 5.59	1.673 4.25	110 2.79	2.257 5.73	75 1.91	2.407 6.11	4910 7307	8000 3628.74	28.9 73.41
More Options	350 KCMIL 350 KCMIL	37 37	0.661 1.68	1.147 2.91	220 5.59	1.207 3.07	80 2.03	1.731 4.40	60 1.52	1.851 4.70	2267 3374	2800 1270.06	22.2 56.39

1 Comply with ICEA S-93-639 Appendix C for jacket thickness determination
TBA stock codes are estimations only and actual product may vary. Please wait until a stock code is assigned to purchase connectors and/or fittings.

	Cond. Size	DC Resistance at 25C (ohms/1000') (ohms/km)	AC Resistance at 75C (ohms/1000') (ohms/km)	Capacitive Reactance (ohms/1000') (ohms/km)	Inductive Reactance (ohms/1000') (ohms/km)	Zero Sequence Impedance (ohms/1000') (ohms/1000')	Positive Sequence Impedance (ohms/1000') (ohms/1000')	Shield Short Circuit Current 6 Cycles	Allowable Ampacity Directly Buried 90C	Allowable Ampacity In Air 90C
More Options	2/0 AWG 2/0 AWG	0.081 0.12	0.102 0.15	0.050 0.07	0.053 0.08	0.461 + j0.366 0.461 + j0.366	0.103 + j0.053 0.103 + j0.053	2952 2952	306 306	317 317
More Options	4/0 AWG 4/0 AWG	0.051 0.08	0.065 0.10	0.042 0.06	0.049 0.07	0.417 + j0.328 0.417 + j0.328	0.066 + j0.049 0.066 + j0.049	3284 3284	369 369	404 404
More Options	500 KCMIL 500 KCMIL	0.022 0.03	0.030 0.04	0.030 0.04	0.043 0.06	0.359 + j0.250 0.359 + j0.250	0.031 + j0.043 0.031 + j0.043	4167 4167	497 497	616 616
More Options	750 KCMIL 750 KCMIL	0.014 0.02	0.023 0.03	0.026 0.04	0.041 0.06	0.334 + j0.211 0.334 + j0.211	0.024 + j0.041 0.024 + j0.041	4752 4752	551 551	706 706
More Options	1000 KCMIL 1000 KCMIL	0.011 0.02	0.019 0.03	0.023 0.03	0.039 0.06	0.316 + j0.187 0.316 + j0.187	0.020 + j0.039 0.020 + j0.039	5214 5214	596 596	813 813
More Options	350 KCMIL 350 KCMIL	0.031 0.05	0.041 0.06	0.035 0.05	0.045 0.07	0.381 + j0.281 0.381 + j0.281	0.042 + j0.045 0.042 + j0.045	3770 3770	456 456	537 537

* Inductive impedance is based on non-ferrous conduit with one diameter spacing center-to-center.
* CEC ampacities are based on:
3-1/C in air copper and aluminum: D17M
3-1/C direct buried copper and aluminum: D17A

Standards & References

ASTM B3 Soft or Annealed Copper Wire
ASTM B8 Concentric-Lay-Stranded Copper Conductors
CSA C22.2 No. 174 Cables in Hazardous Locations
CSA C22.2 No. 2556 & No. 0.3 Wire and Cable Test Methods
CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications - 5 to 46 KV
CSA C68.3 Shielded & Concentric Neutral Power Cable - 5 to 46 kV
CSA LTGG [-40°C] - as per C68.10 - for Cold Bend and Impact rating
CSA HL - for Hazardous Locations rating
CSA SUN RES - for Sunlight Resistant rating
ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
ICEA T-29-520 Flame Test (210,000 BTU/Hr)
IEEE 383 Flame Test (70,000 btu)
IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test (1/0 and Larger)
FT1 Flame Test (1,706 BTU/Hr nominal - Vertical Wire Flame Test)
AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV (Qualification Test Requirements)

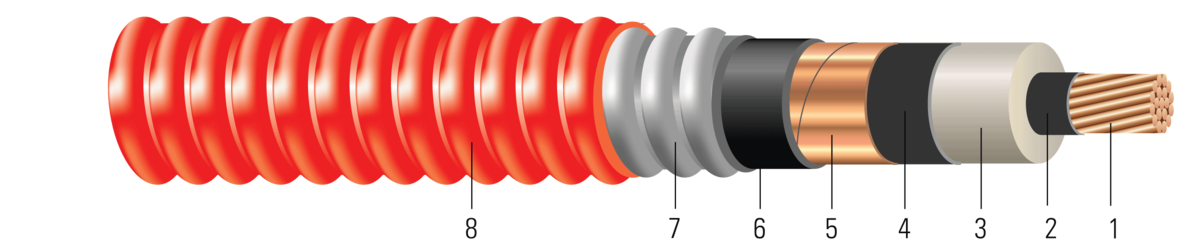

Construction

Conductor:Class B compressed stranded bare copper per ASTM B3 and ASTM B8
Conductor Shield:Semi-conducting cross-linked copolymer
Insulation:220 Mils Tree Retardant Cross Linked Polyethylene 133% insulation level
Insulation Shield:Strippable semi-conducting cross-linked copolymer
Copper Tape Shield:Helically wrapped 5 mil copper tape with 25% overlap
Inner Jacket:PVC inner jacket
Armour:Aluminum Interlocked Armour (AIA)
Overall Jacket:Red Polyvinyl Chloride (PVC) Jacket
