SPEC: 45360
3/0-19 3/C CU XLP TECK90 1KV AIA BLACK PVC JKT
Southwire #: 64088999
Application
For exposed or concealed wiring in wet or dry locations. For use in ventilated, non-ventilated and ladder type cable troughs and ventilated flexible cableway in wet, dry, hazardous locations or direct buried. Sunlight Resistant. Typical applications are for control. lighting and power circuits in: pulp and paper mills, steel mills, food processing plants, commercial centers, mines, generating stations, refineries, industrial plants and chemical plants. <br> <ul> <li>-40°C - CSA Cold Bend and Impact Temperature</li> <li> -40°C - Min. Installation Temperature</li> <li> 90°C - Max. Continuous Operating Temperature</li> </ul>
Specifications
| Cond. Size (AWG/Kcmil) | 3/0 3/0 | |
| Cond. Strands | 19 19 | |
| Diameter Over Conductor (in) (cm) | 0.456 1.16 | inch cm |
| Insulation Thickness (mils) (mm) | 55 1.40 | mils mm |
| Ground (No. x AWG) | 1x4 1x4 | |
| Inner Jacket Thickness (mils) (mm) | 50 1.27 | mils mm |
| Diameter Over Armor (in) (cm) | 1.814 4.61 | inch cm |
| Jacket Thickness (mils) (mm) | 65 1.65 | mils mm |
| Approx. OD (in) (cm) | 1.946 4.94 | inch cm |
| Approx. Weight (lbs/1000') (kgs/km) | 2643 3933 | lbs/1000' kgs/km |
| Max Pull Tension (lbs) (kg) | 4027 1826.61 | lbs kg |
| Min. Bend Radius (in) (cm) | 13.6 34.54 | inch cm |
Standards & References
- ASTM B3 Soft or Annealed Copper Wire
- ASTM B8 Concentric-Lay-Stranded Copper Conductors
- ASTM B787 19 Wire Combination Unilay-Stranded Copper Conductors
- UL 1569 Metal-Clad Cables
- CSA C22.2 No. 174 Cables in Hazardous Locations
- CSA C22.2 No. 131 Type TECK 90 Cable
- CSA LTGG [-40°C] - as per C68.10 - for Cold Bend and Impact rating
- CSA AG14 - Acid Gas Compliance
- ICEA S-58-679 Control Cable Conductor Identification Method 3 (1-BLACK, 2-RED, 3-BLUE)
- IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test

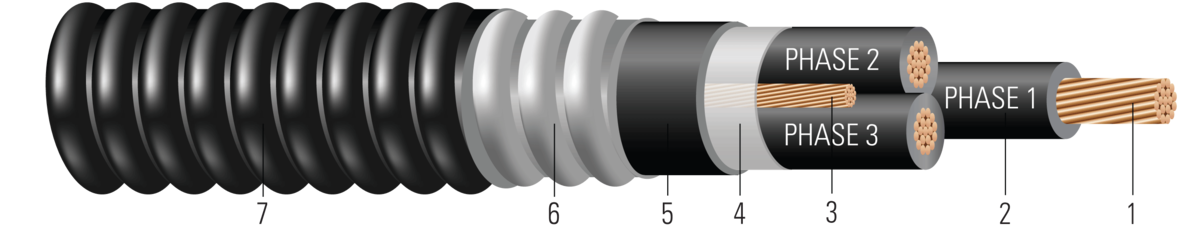

Construction
- Conductor: Class B stranded copper, compressed, in accordance with ASTM B3 and B8. Sizes #1 to 4/0 are combination unilay-stranded copper conductors in accordance with ASTM B787.
- Insulation: Cross-Linked Polyethylene (XLPE)
- Grounding Conductors: Uninsulated Class B stranded grounding conductor
- Binder: Mylar tape
- Inner Jacket: Black Polyvinyl Chloride (PVC)
- Armor: Aluminum Interlocked Armour (AIA)
- Overall Jacket: Black PVC (optional colours available)
