500-37 3/C CU 115 NL-EPR T/S PVC 1X1 CU GW GSIA YELLOW PVC JACKET 5KV 13 3%/8KV 100% UL
Southwire #: 55960199

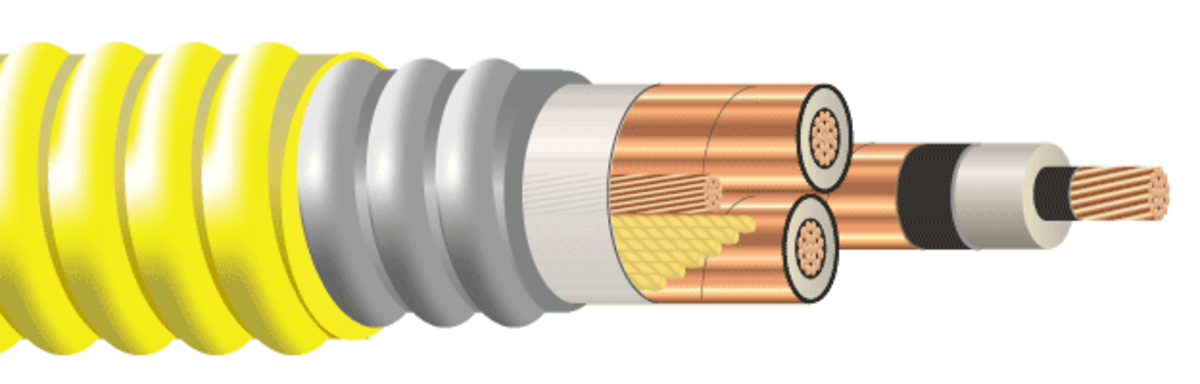

Type MV-105 Three Conductor Copper, 115 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% Insulation Level, Tape Shield, Galvanized Steel Interlocked Armor (GSIA), Polyvinyl Chloride (PVC) Jacket
Application
Specifications
| Stock # | 55960199 55960199 | |
| No. of Conductors | 3 3 | |
| Size (AWG or kcmil) (mm2) | 500 KCMIL 500 KCMIL | |
| No. of Strands | 37 37 | |
| Insulation Thickness (mils) (mm) | 115 2.92 | mils mm |
| Size (AWG) | 1 1 | |
| Nom. OD (mils) (mm) | 3149 80.00 | mils mm |
| Nominal Total Weight (lbs/1000') (kgs/km) | 8678 12914 | lbs/1000' kgs/km |
Standards & References
Construction
Resources
There are no downloadable resources for this product.
