500-37 3/C CU 220 NL-EPR T/S 1X1CU GW AIA BLACK CPE-TP JACKET 15KV 133%

Southwire #: 64690799

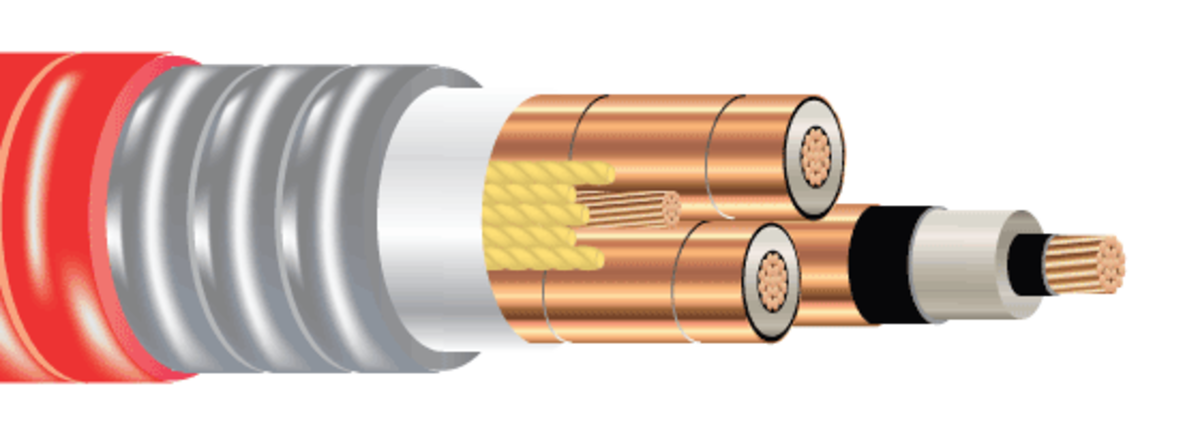

Type MV-105 Three Conductor Copper, 220 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% Insulation Level, Tape Shield, 50% Ground Aluminum Interlocked Armor (AIA), Polyvinyl Chloride (PVC) Jacket.

Download Category Specifications
PDF Excel Table
Select Product Specifications
Construction
Outer Jacket / Armor Color
Conductor Color
Packaging

Application

Specifications

Stock # 64690799 64690799
No. of Conductors 3 3
Size (AWG or kcmil) (mm2) 500 KCMIL 500 KCMIL
No. of Strands 37 37
Insulation Thickness (mils) (mm) 220 5.59 mils mm
Size (AWG) 1 1
Nom. OD (mils) (mm) 3429 87.10 mils mm
Nominal Total Weight (lbs/1000') (kgs/km) 8081 12027 lbs/1000' kgs/km

Standards & References

Construction

Resources

There are no downloadable resources for this product.
