4/0-19 3/C 3E AL 115 NL-EPR T/S 1X4CU GW AIA YELLOW PVC JACKET 5KV 133%/8KV 100% 0 FT

Southwire #: 59778099

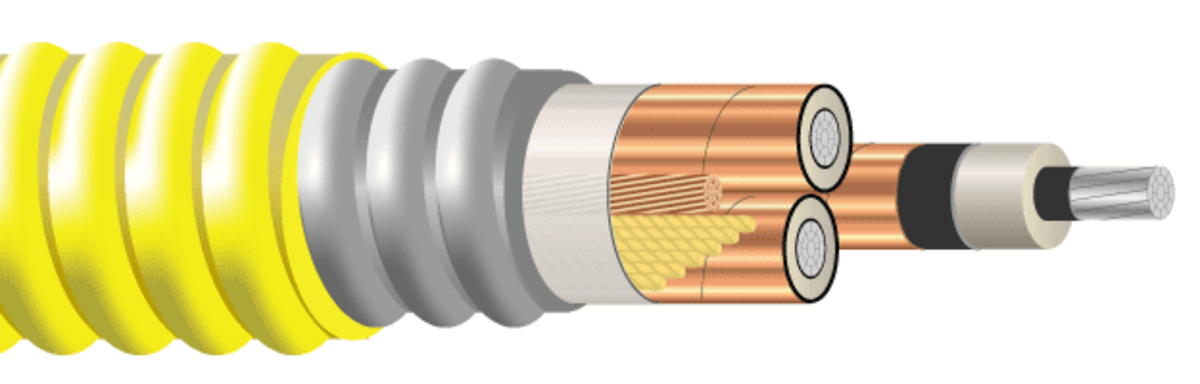

Type MV-105 Three Conductor Aluminum, 115 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% Insulation Level, Tape Shield, Aluminum Interlocked Armor (AIA), Polyvinyl Chloride (PVC) Jacket

Download Category Specifications
PDF Excel Table
Select Product Specifications
Construction
Outer Jacket / Armor Color
Conductor Color
Packaging

Application

Specifications

measurement
imperial metric
Stock # 59778099 59778099
No. of Conductors 3 3
Size (AWG or kcmil) 4/0 AWG 4/0 AWG
No. of Strands 19 19
Insulation Thickness (mils) (mm) 115 2.92 mils mm
Size (AWG) 4 4
Nom. OD (mils) (mm) 2224 56.49 mils mm
Nominal Total Weight (lbs/1000') (kgs/km) 2265 3371 lbs/1000' kgs/km

Standards & References

Construction

Resources

There are no downloadable resources for this product.
