AL 600V-UD TRIPLEX
Aluminum Conductors. Cross-linked Polyethylene (XLP) Insulation.
Application
Used for secondary distribution and underground service at 600 volts or less, either direct burial or in ducts.
Specifications
Select a set of products below for more information:
| Conductor | Ground Wire | ||||||||
| No. of Conductors | Size (AWG or kcmil) (mm2) | No. of Strands | Insulation Thickness (mils) (mm) | Size (AWG) | No. of Strands | Nom. OD (mils) (mm) | Nominal Total Weight (lbs/1000') (kgs/km) | Allowable Ampacity | |
| 277996 |
3
3
|
6 AWG
6 AWG
|
7
7
|
60
1.52
|
|
|
643
16.35
|
132
196
|
|
| 241661 |
3
3
|
4 AWG
4 AWG
|
7
7
|
60
1.52
|
|
|
744
18.91
|
188
280
|
|
| 272641 |
3
3
|
2 AWG
2 AWG
|
7
7
|
60
1.52
|
|
|
870
22.11
|
246
366
|
|
| 205724 |
3
3
|
1/0 AWG
1/0 AWG
|
9
9
|
80
2.03
|
|
|
1105
28.09
|
387
576
|
|
| 243311 |
3
3
|
2/0 AWG
2/0 AWG
|
11
11
|
80
2.03
|
|
|
1198
30.45
|
480
715
|
|
| 267500 |
3
3
|
3/0 AWG
3/0 AWG
|
17
17
|
80
2.03
|
|
|
1302
33.08
|
579
862
|
|
| 142679 |
3
3
|
4/0 AWG
4/0 AWG
|
18
18
|
80
2.03
|
|
|
1421
36.10
|
676
1005
|
|
| 232819 |
3
3
|
250 KCMIL
250 KCMIL
|
22
22
|
95
2.41
|
|
|
1581
40.16
|
961
1429
|
|
| 242511 |
3
3
|
350 KCMIL
350 KCMIL
|
30
30
|
95
2.41
|
|
|
1794
45.59
|
1117
1662
|
|
| 272732 |
3
3
|
500 KCMIL
500 KCMIL
|
34
34
|
95
2.41
|
|
|
2064
52.45
|
1593
2371
|
|
| 201012 |
3
3
|
750 KCMIL
750 KCMIL
|
61
61
|
110
2.79
|
|
|
2503
63.59
|
2155
3207
|
|
Standards & References
Southwire's triplex or paralleled 600 volt secondary UD cable meets or exceeds the following applicable ASTM specifications:
- B-230 Aluminum 1350-H19 Wire for Electrical Purposes.
- B-231 Aluminum 1350 Conductors, Concentric-Lay-Stranded.
Construction

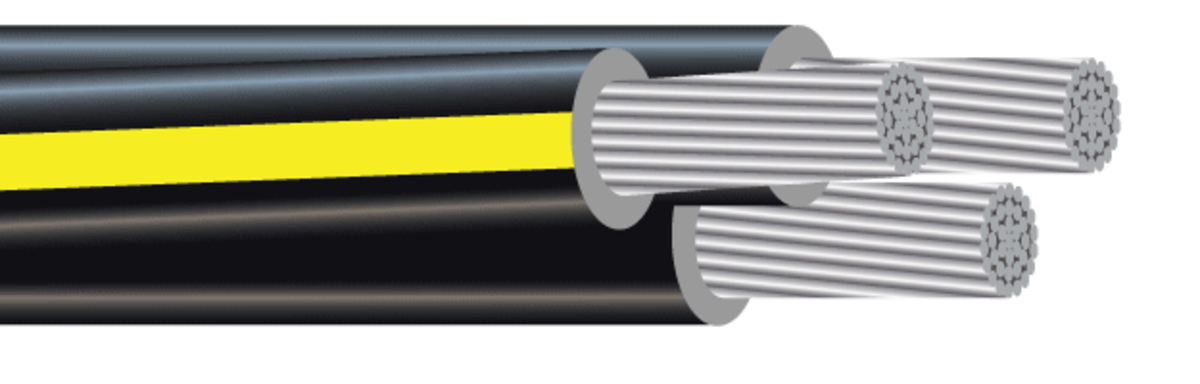

Conductors are stranded, compressed 1350-H19, H16, or H26 aluminum, insulated with vulcanized interlinked polyethylene (VIP 1 ), Southwire's cross-linked polyethylene. Neutrals are triple yellow extruded stripe. Cables with "YES" neutrals have sequential footage markers. Conductors are durably surface printed for identification. Two phase conductors and one neutral conductor are cabled together to produce the triplex cable configuration. Conductors are also available paralleled.
- 1350
