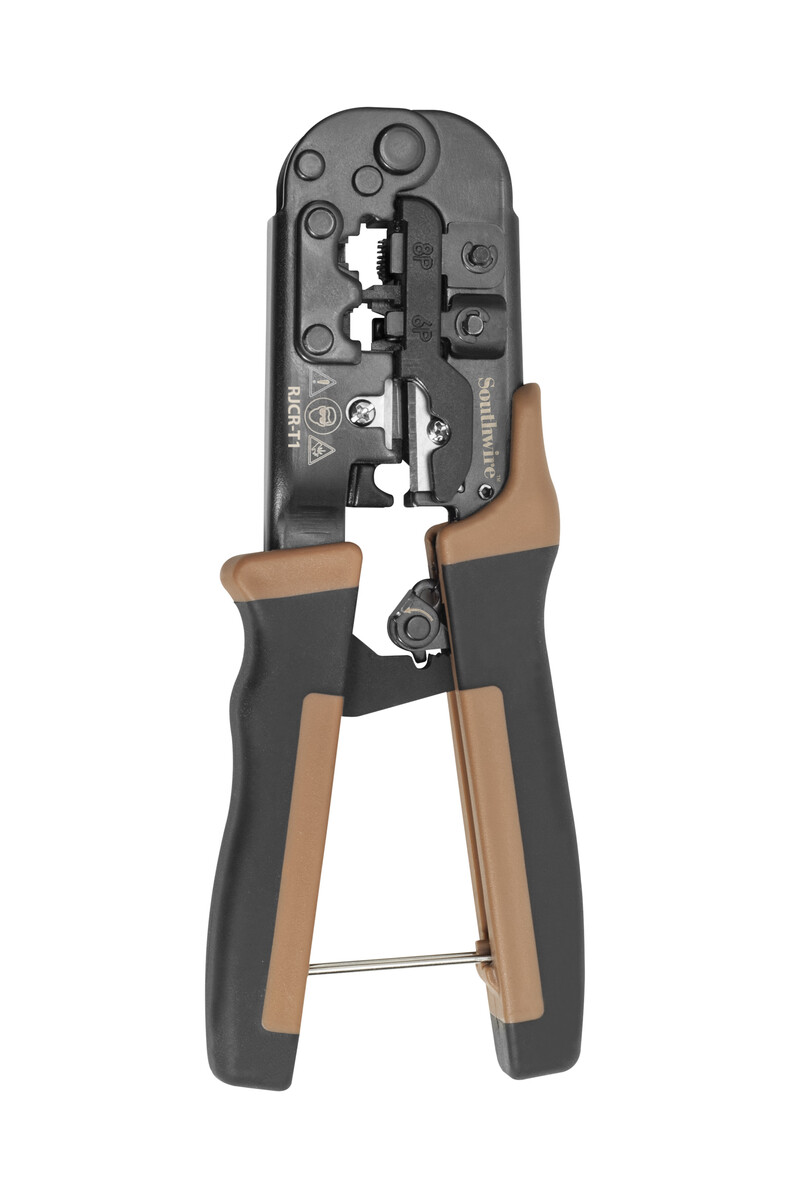

RJCR-T1, RATCHET MOD PLUG CRIMPER

Southwire #: 58745840 Model #: RJCR-T1

The RJCR-T1 is a professional ratcheting Phone & Data Crimp Tool that cuts and strips voice and data cable, and crimps RJ45 (data) plus RJ11/RJ12 and RJ22 (voice) connectors.

Download Category Specifications
PDF Excel Table
Register Product
Register Product

Features & Benefits

  • Ratcheting tool cuts, strips, and crimps phone and data cable.
  • Comfortable double-molded grips help to orient the tool.
  • Compatible with standard modular plugs.
  • Compatible with RJ45, RJ11/RJ12, and RJ22 plugs.
  • Locks closed for easy storage.

Specifications

Model # RJCR-T1 RJCR-T1
UPC # 032886935312 032886935312
Product Height 7.4 18.80 inch cm
Product Width 2.874 7.30 inch cm
Depth 0.98 2.49 inch cm
Product Weight 0.729 0.33 lbs kg
Rated 5 out of 5 by from Great tool, durable. This was a replacement for a old one, superseded the old off brand one. Great tool, Great price... excellent choice.
Date published: 2016-08-16
Rated 2 out of 5 by from Only works for RJ-45 connectors. I use this tool all the time for RJ-45 connectors. But, it has never worked on the RJ-11 connectors. It over-crimps them, and the pins get pushed too far into the plastic. I called tech support. They said that an engineer would be in touch with me. I have not heard from anyone.
Date published: 2022-12-17
  • y_2025, m_5, d_19, h_8
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_58745840, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_southwiretools
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 45ms
  • REVIEWS, PRODUCT

How to align wire

Asked by: Ron B
Please contact our team at 855-798-6657 for further assistance.
Answered by: SW Tools
Date published: 2020-03-09

What is the part number for replacement blades for the RJCR-T1 and where can I buy them?

Asked by: computerman87
The RJCR-T1 does not have replacement blades.
Answered by: Southwire
Date published: 2024-07-17

Is there a video to show how to connect the wires in th proper sequence before crimping?

Asked by: JimA
Not at this time, but if you contact our Tools Team at 855-798-6657 they will be happy to assist!
Answered by: Southwire
Date published: 2018-12-03

The wire strippers do not work.  I tried as the picture showed.  It did not work.  Then I tried one wire at a time.  That did not work.  The blades do not come close enough to cut.

Asked by: homeowner
We are sorry to hear that, please call our Tools Team at 855-798-6657 for further assistance. They are happy to help!
Answered by: Southwire
Date published: 2018-11-19

 Where can I acquire a replacement blade: cutter/ stripper for the cat five cable? mine broke after using a few times. Purchased last month.

Asked by: Jason E
Please call our team at 855-798-6657 for assistance getting a replacement blade.
Answered by: swtools
Date published: 2017-12-26

wiring order for cat6

Asked by: marker
The order for twisted pair can be either 2 ways. Just make sure you are consistent with the ordering type you choose: (Front Left to Right, when pointing the connector away from you) Type A: Green/White, Green, Orange/White, Blue, Blue/White, Orange, Brown/White, Brown Type B: Orange/White, Orange, Green/White, Blue, Blue/White, Green, Brown/White, Brown
Answered by: swtools
Date published: 2021-05-13

In what order do the wires go from left to right in the rjcr-t1 phone and data crimp tool.  I have ... 2 browns, 2 greens,  2 oranges and 2 purples.

Asked by: Gregory
The order for twisted pair can be either 2 ways. Just make sure you are consistent with the ordering type you choose: (Front Left to Right, when pointing the connector away from you) Type A: Green/White, Green, Orange/White, Blue, Blue/White, Orange, Brown/White, Brown Type B: Orange/White, Orange, Green/White, Blue, Blue/White, Green, Brown/White, Brown
Answered by: swtools
Date published: 2017-11-16

Will ez rj45 work with this

Asked by: Tjammer
No, they will not work with this tool. We apologize for any inconvenience. Thank you.
Answered by: SouthwireTools
Date published: 2017-08-10
