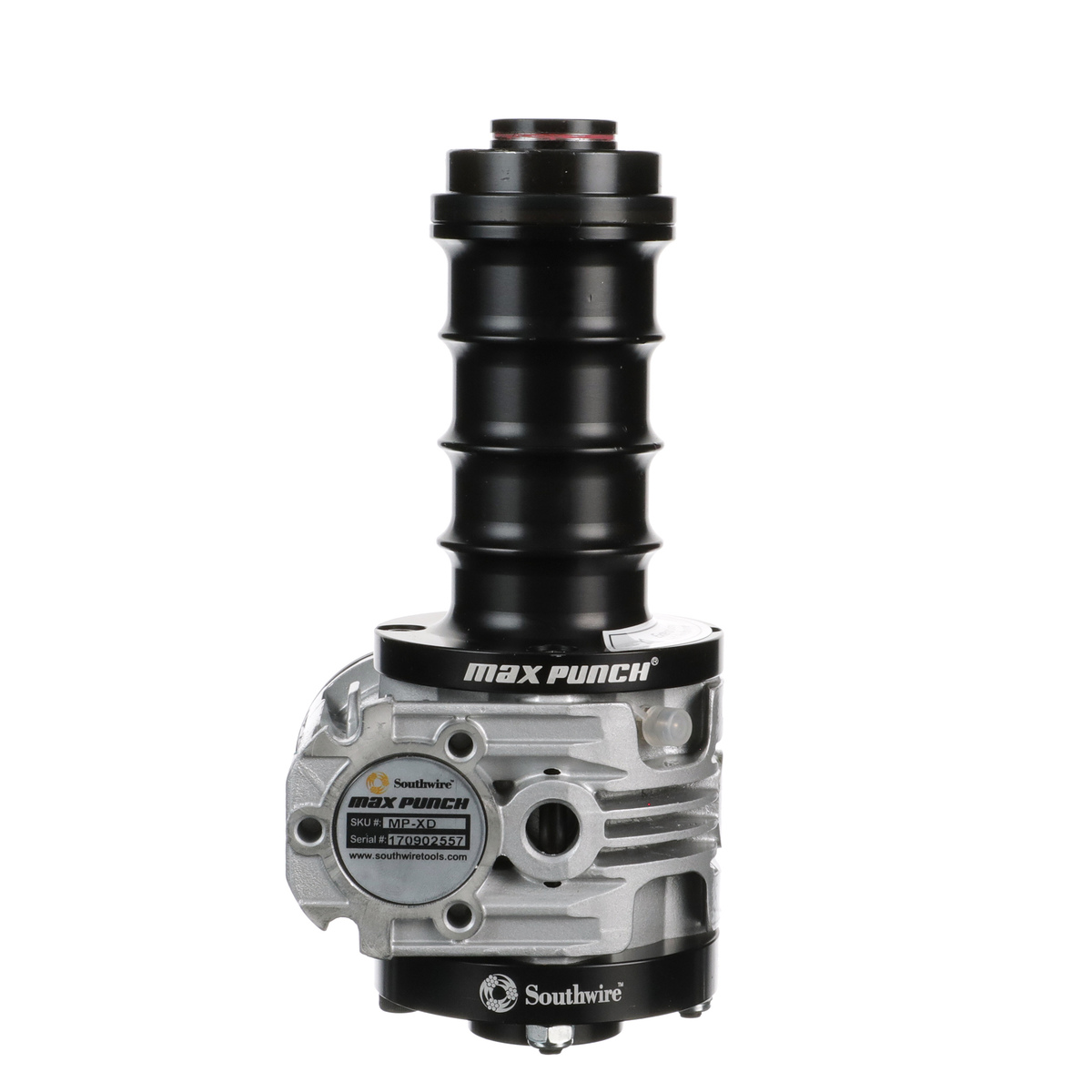

MP-XD Drive Unit with PRDS34 PRDS716 p-63159701 63159701

Southwire #: 63159701 Model #: MP-XD

Write a Review

Heavy duty knockout punch driver for stainless and mild steel.

Where to Buy

Download Category Specifications

PDF Excel Table

Features & Benefits

An advanced knockout tool used with a cordless drill to draw punch dies together for quick accurate knockouts
No hydraulics, no ratcheting, no mess

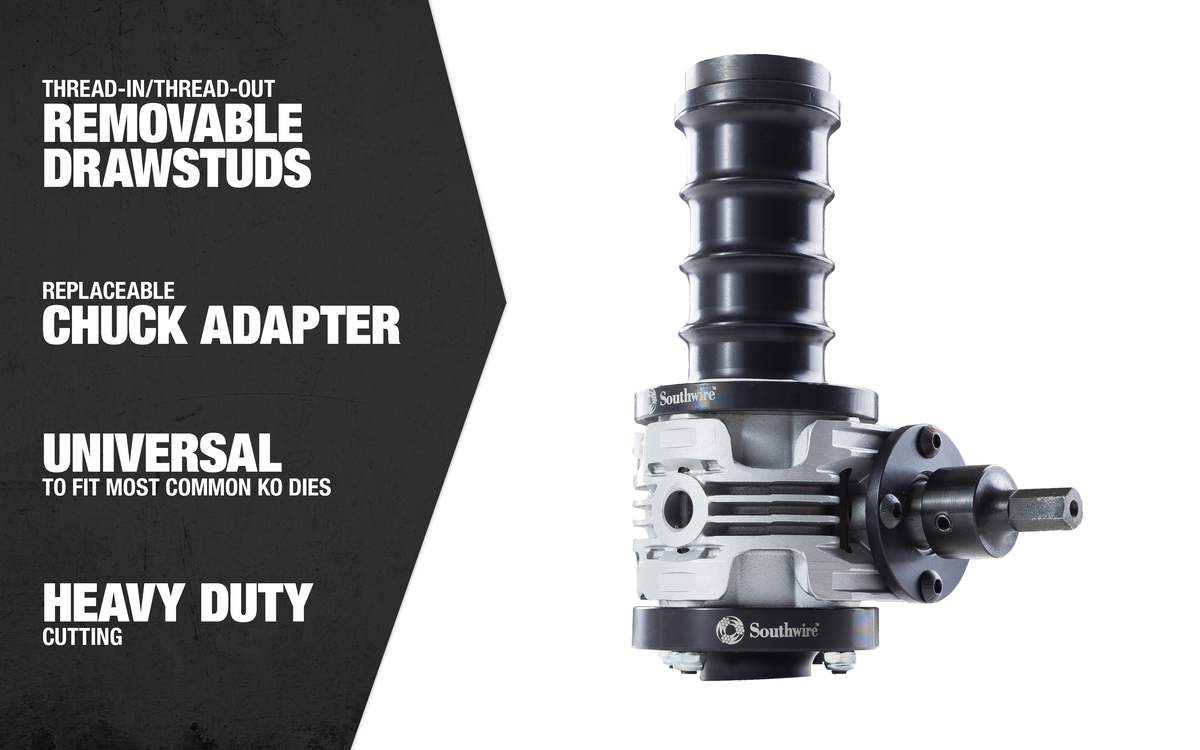

Thread-in/thread-out removable drawstuds (universal to fit most common KO dies)

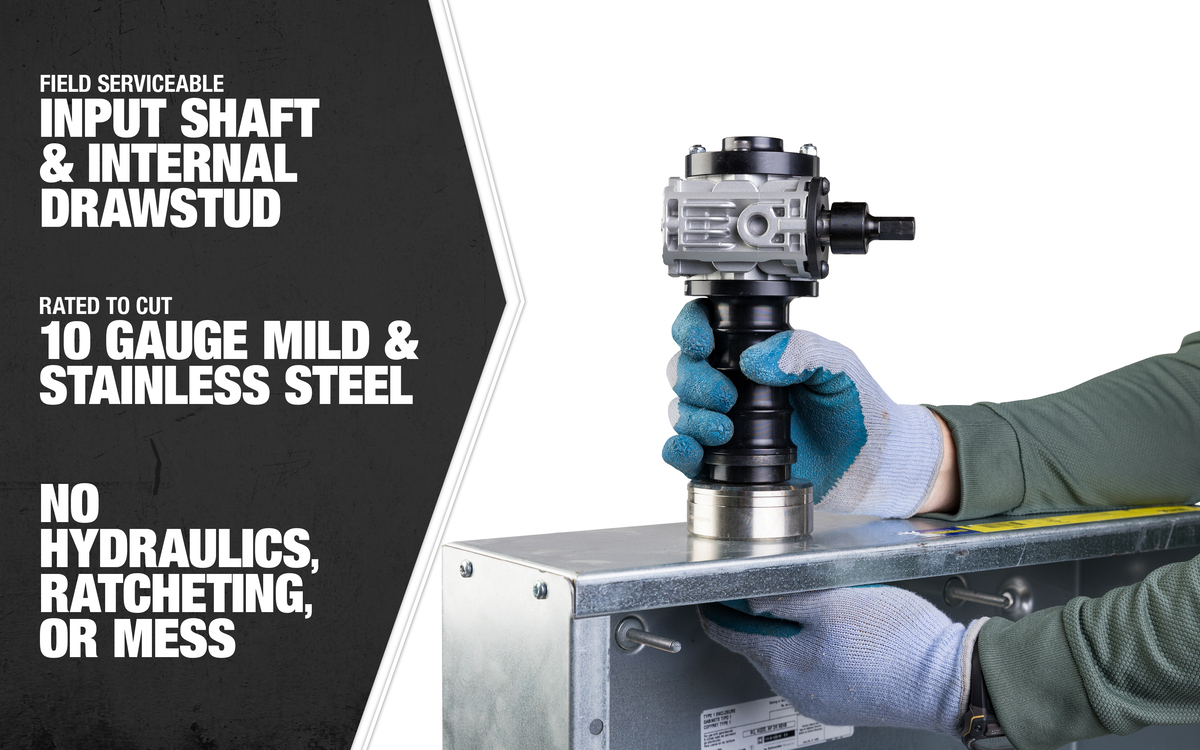

Rated to cut 10 gauge mild and stainless steel up to 4
Minimum drill recommendations: 18v cordless, equivalent of 550 in. lbs. torque rated
Field Serviceable input shaft and internal drawstud

Specifications

Model #	MP-XD MP-XD
UPC #	032886964534 032886964534
Product Type	Max Punch® Max Punch®

Resources

MP-XD Operating Manual

MP-XD FAQ

How do you get this item un stuck when its been bottom out stuck in metal and reverse no longer works

Asked by: James bar

Thank you for your feedback regarding this matter. We are sorry for the inconvenience this has caused you. Please reach out to our tools department at 855-798-6657 for additional assistance.

Answered by: Southwire1

Date published: 2021-07-07

we have a maxis / southwire and the mp-xd gear box failed because of in-field abuse. - how do we go about getting this item repaired

Asked by: Parts guy

We are happy to help! Please contact our team at 855-798-6657 for assistance with replacement.

Answered by: SW Tools

Date published: 2020-11-30

I used the punch without extending the post all the way to the red line. Now the post is stuck—the wheel turns but it doesn’t move either direction. How do I fix?

Asked by: Dhdjjd

We are happy to help! Please contact our team at 855-798-6657 for further assistance.

Answered by: SW Tools

Date published: 2020-10-20

We have a couple parts missing from one of our kits. One is the step drill and the other is the 1/2" die. What are the part numbers so we can replace them? Thank you

Asked by: alex25

We are happy to help! Please contact our team at 855-798-6657 for further assistance.

Answered by: SW Tools

Date published: 2020-10-15

1/2" post stopped moving half way through cut? Recommendations?

Asked by: DarcyT

We are happy to help! Please contact our team at 855-798-6657 for further assistance.

Answered by: SW Tools

Date published: 2023-09-29

What is the part number for a replacement stud that's long enough for the 4" die?

Asked by: Jeff M

We are happy to help! Please contact our team at 855-798-6657 for assistance with replacement.

Answered by: SW Tools

Date published: 2020-10-08

What is the price of the MP-XD

Asked by: Jim38

Please see the link below to our Where to Buy page or call 855-798-6657 and a member of our team can help you find a distributor in your area! http://www.southwiretools.com/tools/basic/wheretobuy

Answered by: SW Tools

Date published: 2020-09-11

Hi, Where can I buy the MP-01 bare tool in Halifax NS? The housing on mine broke in a big way. Or is that under warranty? Thanks, -Jamie

Asked by: jamie vanbuskirk

Please see the link below to our Where to Buy page or call 855-798-6657 and a member of our team can help you find a distributor in your area! http://www.southwiretools.com/tools/basic/wheretobuy

Answered by: SW Tools

Date published: 2020-09-04
