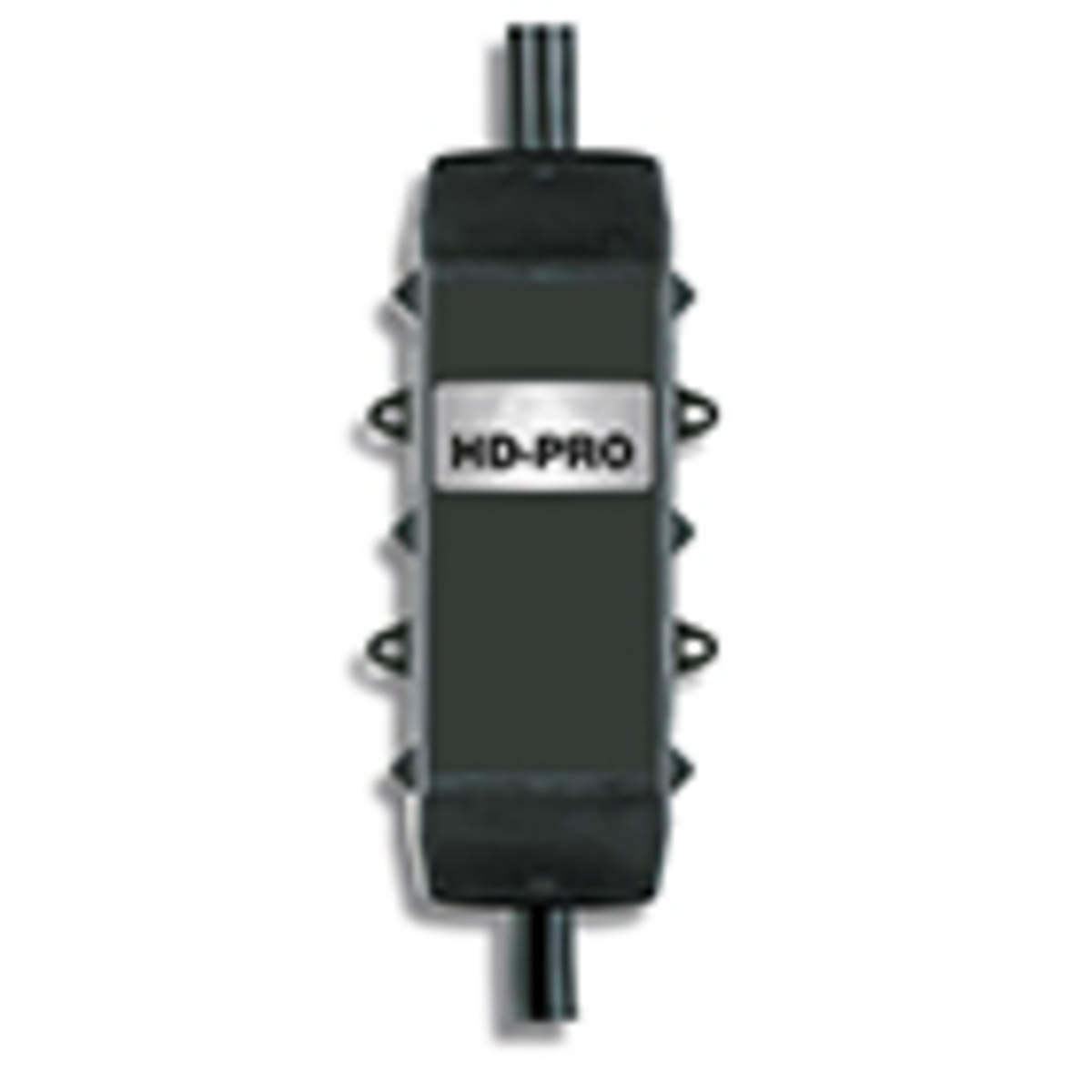

240V/30A Heavy Duty - High Power ELCIs - 30A

Southwire #: 24500006-1 Model #: 24500006-1

Shockshield panel mounts provide protection for personnel and equipment when leakage levels have a potentially lethal ground current.

Download Category Specifications
PDF Excel Table
Register Product
Register Product

Features & Benefits

  • Applications Include: Motors, Manufacturing Equipment, Pumping Systems, Welders, Pressure Washers, Hoists
  • Response Time for Ground Fault: 25mS - Typically
  • Drop Out Voltage: 60% Rated Voltage - Typically
  • Connection Type: 2 ft Flying Leads
  • Endurance: 3,000 Operations Minimum
  • Overload Current: Six Times Rated Current
  • Insulation Voltage: 1500 Vrms - 1 Min.
  • Cord Gauge: 10/4 AWG
  • Power On Indication: Lighted Indicator

Specifications

Stock # 24500006-1 24500006-1
Model # 24500006-1 24500006-1
UPC # 024098901643 024098901643
Product Height 4.0 10.16 inch cm
Product Width 6.0 15.24 inch cm
Depth 15.0 38.10 inch cm
Product Weight 5.0 2.27 lbs kg
Maximum Amps 30 30
