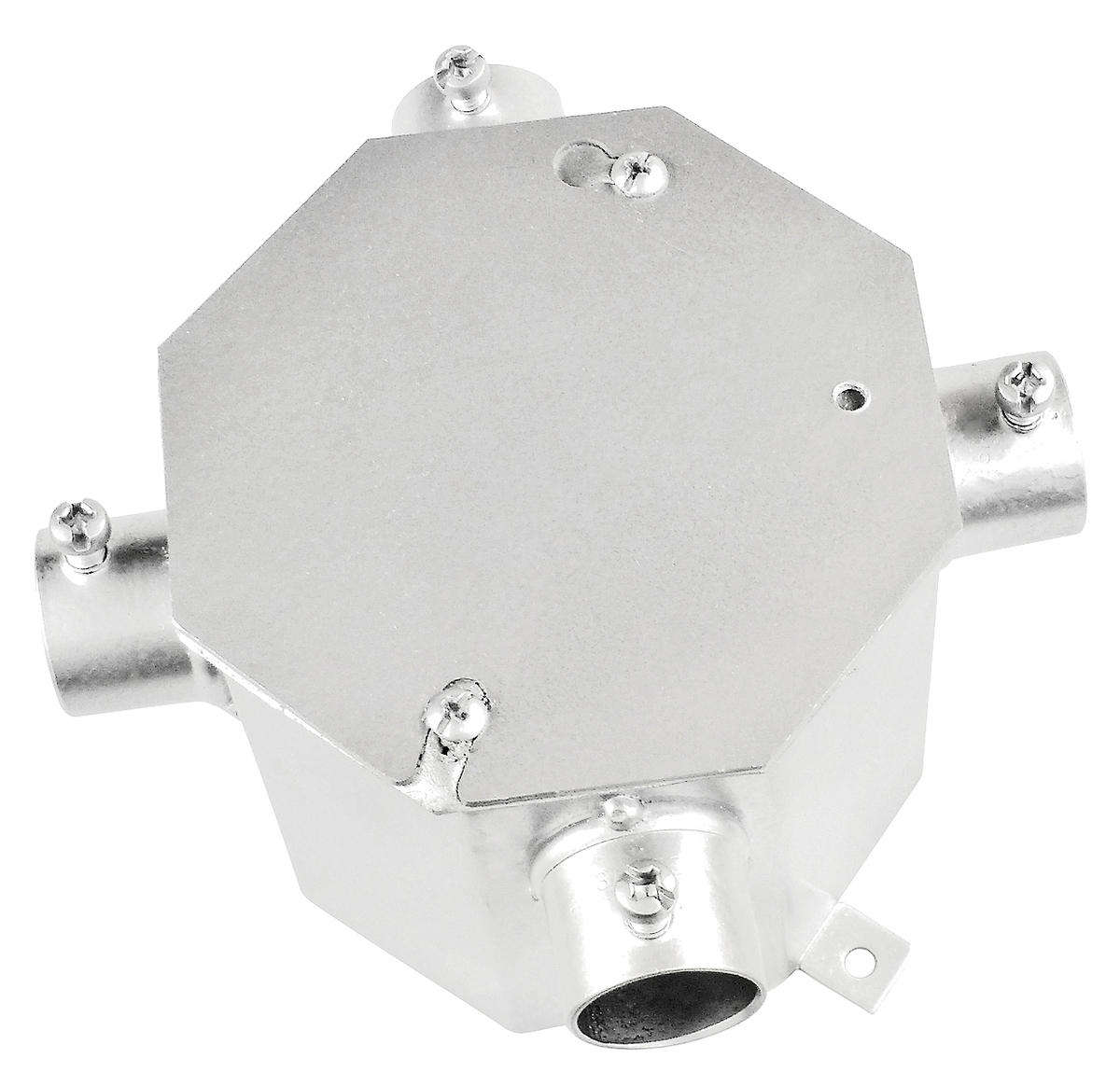

Octagon Concrete Box Assembly, 4" Deep - (4) 1/2" Set Screw Connectors

Southwire #: OCA40050 Model #: OCA40050

Octagon concrete boxes are used in poured concrete construction. They are installed on wooden or steel concrete forms, once the forms are removed the boxes and conduit are buried in concrete and the end is open to the room wall or ceiling, ready for wire pulling.

Download Category Specifications
Excel Table
Register Product
Register Product

Features & Benefits

  • Assemblies include preinstalled connectors and gasketed covers - both sides
  • Extra long external mounting tabs allow easy installation by nailing or screwing the boxes to wooden or steel concrete forms
  • Solid leak-proof housing
  • Rubber plugs seal unused connector holes
  • UL, RoHS Compliant

Specifications

measurement
imperial metric
Stock # OCA40050 OCA40050
Model # OCA40050 OCA40050
UPC # 785592125385 785592125385
Product Height 4.0 10.16 inch cm
Product Width 6.03 15.32 inch cm
Product Weight 0.028 0.01 lbs kg
Material Galvanized Steel Galvanized Steel
Cubic Capacity 49.3 (807.8) 49.3 (807.8)
Standard Package 50 50
Bottom Knockouts (2) 1/2", (2) 3/4" (2) 1/2", (2) 3/4"
Color Silver Silver
